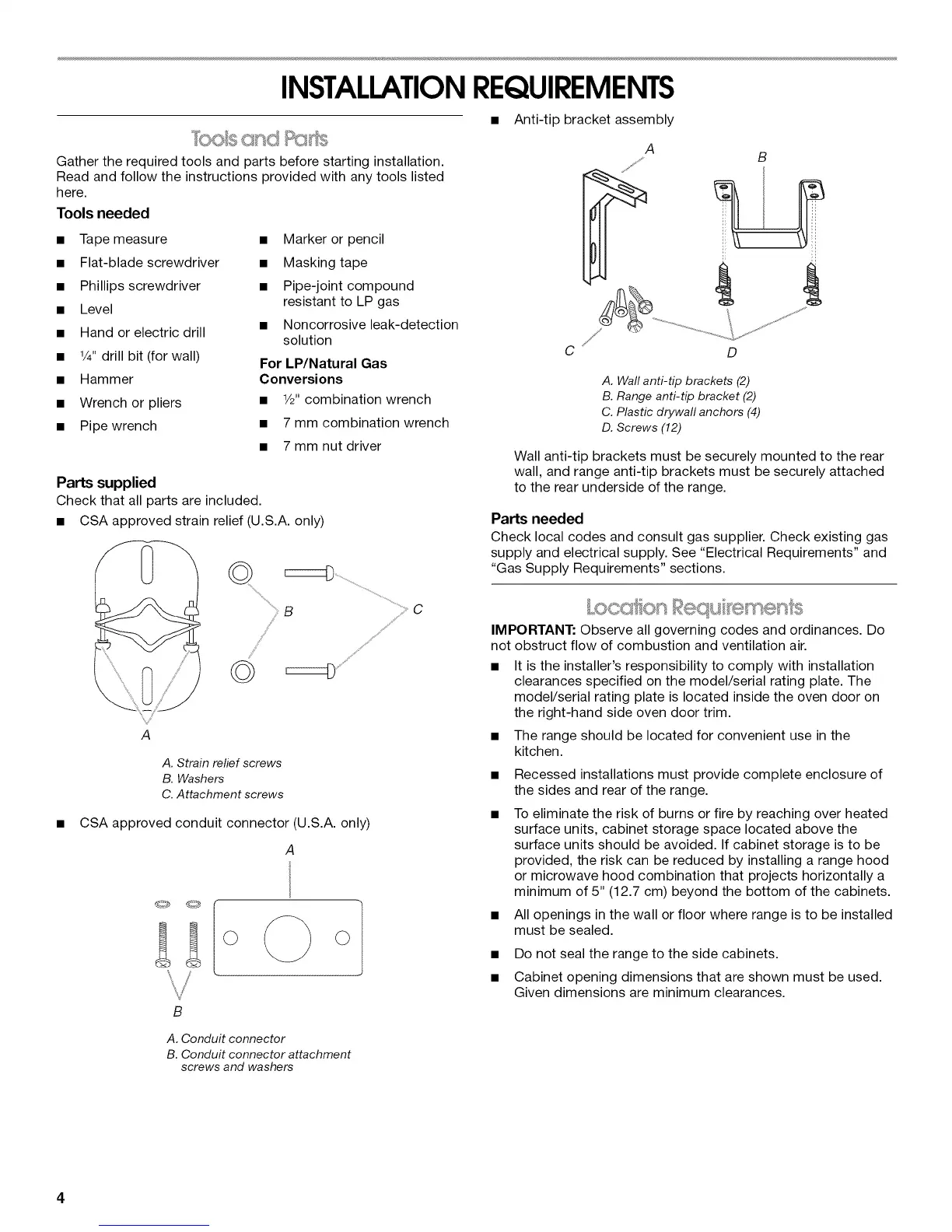

INSTALLATIONREQUIREMENTS
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
Tools needed
• Tape measure • Marker or pencil
• Flat-blade screwdriver • Masking tape
• Phillips screwdriver • Pipe-joint compound
resistant to LP gas
• Level
• Hand or electric drill • Noncorrosive leak-detection
solution
• 1/4"drill bit (for wall) For LP/Natural Gas
• Hammer Conversions
• Wrench or pliers • 1/2"combination wrench
• Pipe wrench • 7 mm combination wrench
• 7 mm nut driver
Parts supplied
Check that all parts are included.
• CSA approved strain relief (U.S.A. only)
_" .........................i:;i_xE===_............................................................................................c
,/,,¢
,/, ///'
/
A
A. Strain relief screws
B. Washers
C. Attachment screws
CSA approved conduit connector (U.S.A. only)
A
O
Anti-tip bracket assembly
A
///'
C
B
?'p
D
A. Wall anti-tip brackets (2)
B. Range anti-tip bracket (2)
C. Plastic drywall anchors (4)
D. Screws (12)
Wall anti-tip brackets must be securely mounted to the rear
wall, and range anti-tip brackets must be securely attached
to the rear underside of the range.
Parts needed
Check local codes and consult gas supplier. Check existing gas
supply and electrical supply. See "Electrical Requirements" and
"Gas Supply Requirements" sections.
Bc ccxt ion %equ emen' s
IMPOFITANT: Observe all governing codes and ordinances. Do
not obstruct flow of combustion and ventilation air.
• It is the installer's responsibility to comply with installation
clearances specified on the model/serial rating plate. The
model/serial rating plate is located inside the oven door on
the right-hand side oven door trim.
• The range should be located for convenient use in the
kitchen.
• Recessed installations must provide complete enclosure of
the sides and rear of the range.
• To eliminate the risk of burns or fire by reaching over heated
surface units, cabinet storage space located above the
surface units should be avoided. If cabinet storage is to be
provided, the risk can be reduced by installing a range hood
or microwave hood combination that projects horizontally a
minimum of 5" (12.7 cm) beyond the bottom of the cabinets.
• All openings in the wall or floor where range is to be installed
must be sealed.
• Do not seal the range to the side cabinets.
• Cabinet opening dimensions that are shown must be used.
Given dimensions are minimum clearances.
A. Conduit connector
B. Conduit connector attachment
screws and washers
