INSTALLATION REQUIREMENTS
Tools Needed
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools
listed here.
■ Measuring tape
■ Pencil
■ Masking tape or
thumbtacks
■ Scissors
■ No. 2 Phillips screwdriver
■ No. 3 Phillips screwdriver
for Z\v-20 x 3" bolts
■ Drill
■■ C\zn" (5 mm), C\," (10 mm),
B\," (16 mm) drill bits
■■ C\v" (19 mm) hole saw
■ Diagonal wire cutting pliers
■ Stud finder
■■ M\zn" socket wrench
(or box wrench) for Z\v" x 2"
lag screws
■ 1½" (3.8 cm) diam. hole
drill bit for wood or metal
cabinet
■ Keyhole saw
■ Caulking gun and
weatherproof caulking
compound
■ Duct tape
Parts Supplied
For information on reordering, see “Replacement Parts” section.
NOTE: The hardware items listed here are for wood studs.
For other types of wall structures, be sure to use appropriate
fasteners.

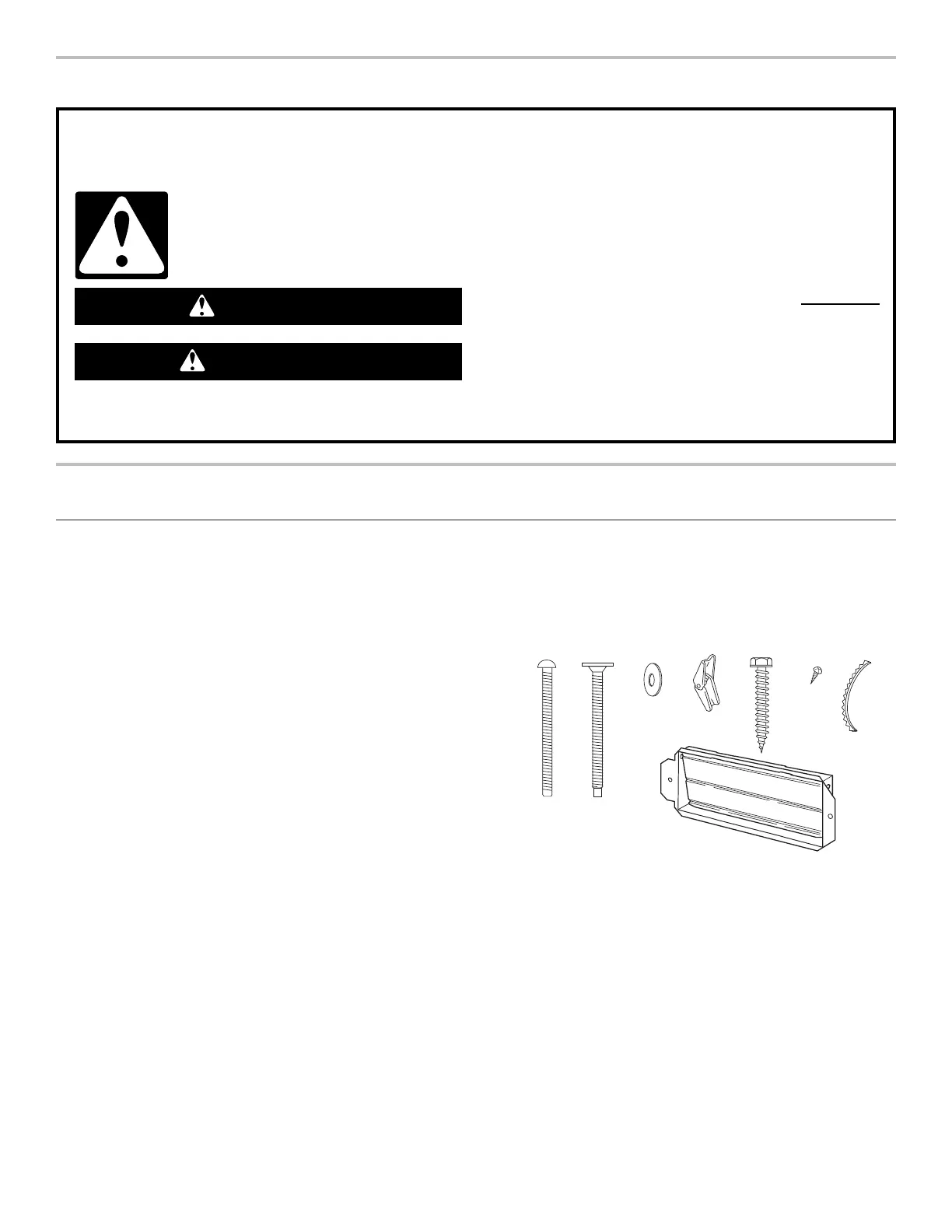

A
B
C
D E F
G
H
A. C\zn-24 x 3" round-head bolts (2)
B. Z\v-20 x 3" flat-head bolts (2)
C. Washers (2)
D. C\zn" toggle nuts (2)
E. Z\v" x 2" lag screws (2)
F. Sheet metal screws (2)
G. Power supply cord bushing (1)
H. Damper assembly (for wall or
roof venting)
Not Shown:
■ Upper cabinet template
■ Mounting plate (attached to
back of microwave oven)
■ Cardboard template (part of
packaging)
■ Aluminum grease filters
■ Charcoal filters (Depending
on model, charcoal filters may
not be included. See User
Instructions.)
NOTE: Depending on model, aluminum grease filter and charcoal
filter may be combined.
Materials Needed
■ Standard fittings for wall or roof venting. See “Venting Design
Specifications” section.
MICROWAVE HOOD COMBINATION SAFETY
You can be killed or seriously injured if you don't immediately
You
can be killed or seriously injured if you don't
follow
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
follow instructions.
instructions.
DANGER
WARNING
