ENGLISH 24
• Remove all accessories before running the
pyrolysis function (also the lateral grids).
• For optimum cleaning of the oven door,
remove the worst soiling with a damp
sponge before using the pyrolytic function.
• The appliance is equipped with 2
pyrolysis functions:
1. Energy-saving cycle (PYRO EXPRESS/
ECO): which consumes approximately
25% less energy than the standard cycle.
Select it at regular intervals (after cooking
meat on 2 or 3 consecutive occasions).
2. Standard cycle (PYRO): which is suitable
for cleaning a very dirty oven.
N.B.: during the pyrolysis function, the oven
door will not open; it will remain locked until
the temperature inside the oven has returned
to an acceptably safe level.
MAINTENANCE
WARNING!
- Use safety gloves.
- Ensure the oven is cold before carrying out
the following operations.
- Disconnect the oven from the power
supply.

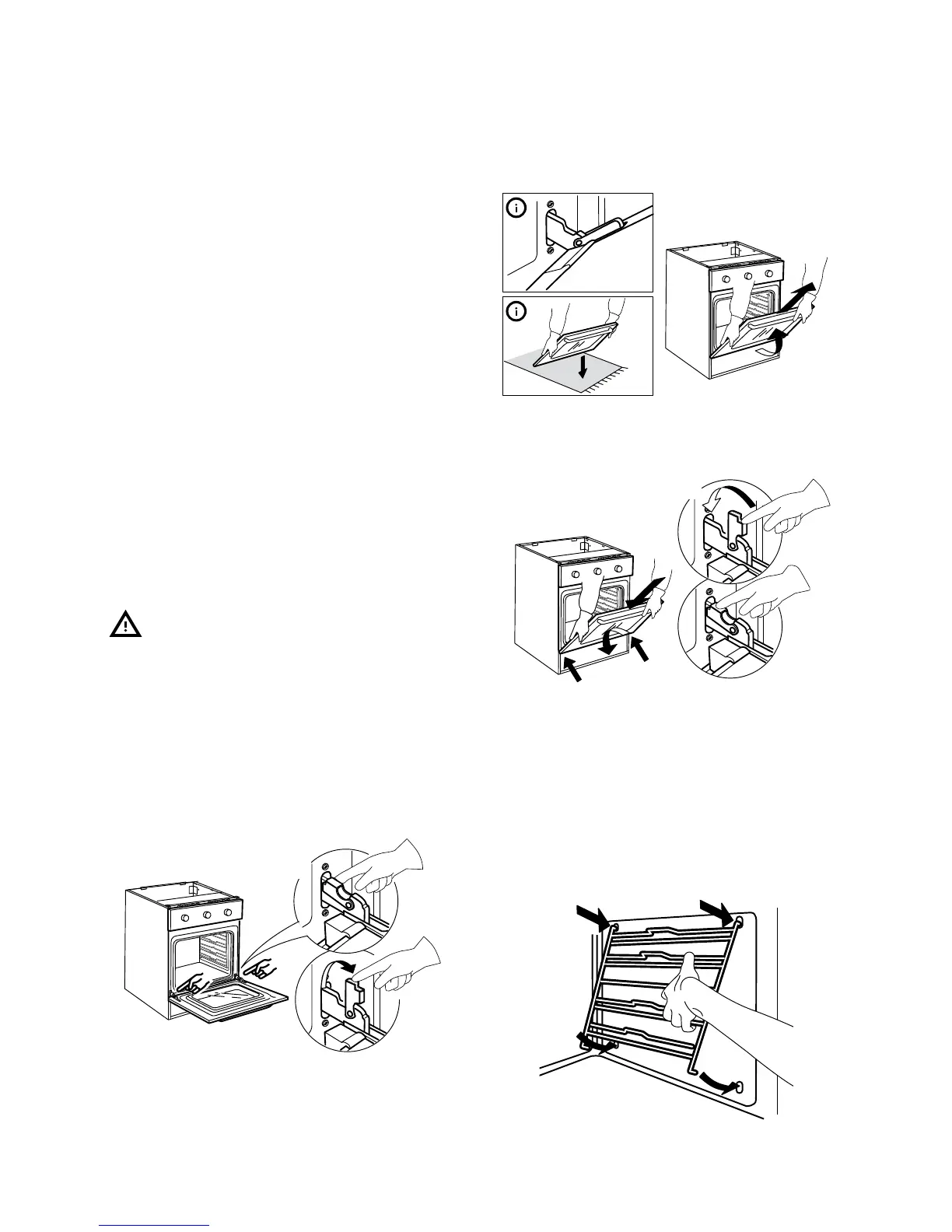

To remove the door
2x
To ret the door
2x
To remove lateral grids
Move the lateral grid upwards until the two
lower terminals are released, then rotate the
grid towards the center of the compartment.
To re-position the grid, perform the above
operations in reverse.
1
2
To replace the rear lamp
1. Disconnect the oven from the power
