Connect the extractor to the exhaust flue through a pipe of a minimum diameter of 120 mm. The route of the flue must be as short as possible.
Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent
the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electricity, the negative pressure in the room must not
exceed 0,04 bar to prevent fumes from being drawn back into the room by the cooker hood.
The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent.
Connect the plug to a socket complying with current regulations, located in an accessible place.
With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.
WARNING: Before installing the Hood, remove the protective films.
Use only screws and small parts in support of the hood.
WARNING: Failure to install the screws or fixing the device in accordance with these instructions may result in electrical hazards.
Connect the hood to the power net by using a bipolar switch having a contact gap of at least 3 mm.
Do not look directly at the light through optical devices (binoculars, magnifying glasses…).
Do not flambè under the range hood; risk of fire.
This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children without supervision.
Children should be supervised to ensure that they do not play with the appliance.
The appliance is not to be used by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge unless they have been given supervision or instruction. Accessible parts may become hot when used with cooking appliances.
Clean and/or replace the Filters after the specified time period (Fire hazard).
There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only
discharge the air back into the room).
Use only with self-shielded tungsten halogen lamps or self-shielded metal halide lamps.
Replace any cracked shield.
Use
Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
The top of the hood must not to be used as a shelf.
The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
Never use the hood for purposes other than for which it has been designed.
Never leave high naked flames under the hood when it is in operation.
Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames. min 471 mm max 861 mm min 569 mm max 861 mm .
Installation modes
The hood has been designed to be installed and used either as a “Exhaust mode”, or as a “Recirculation mode”.
Exhaust mode (see the symbol min 471 mm max 861 mm in installation booklet)
Cooking steam is sucked and channeled outside the house through a discharge duct (not supplied), fitted to the hood steam outlet. Ensure that the discharge duct is correctly fitted to the air
outlet, unit using an appropriate connection system.
Recirculation mode (see symbol in installation booklet)
The air is filtered through one or more charcoal filters and then resent into the room.
Important: Ensure appropriate air circulation around the hood.
Important: If the hood is supplied without charcoal filters and installed on recirculation mode, these must be fitted before the hood can be used. Filters are available in shops. The hood
should be installed away from articularly dirty areas, windows, doors and heat sources. The accessories for wall fixing are not included because walls made of different materials require
different types of fixing accessories. Use fixing systems suitable for the walls of your home and the weight of the appliance. For more details, contact a specialized dealer. Keep this booklet
for future consultation.

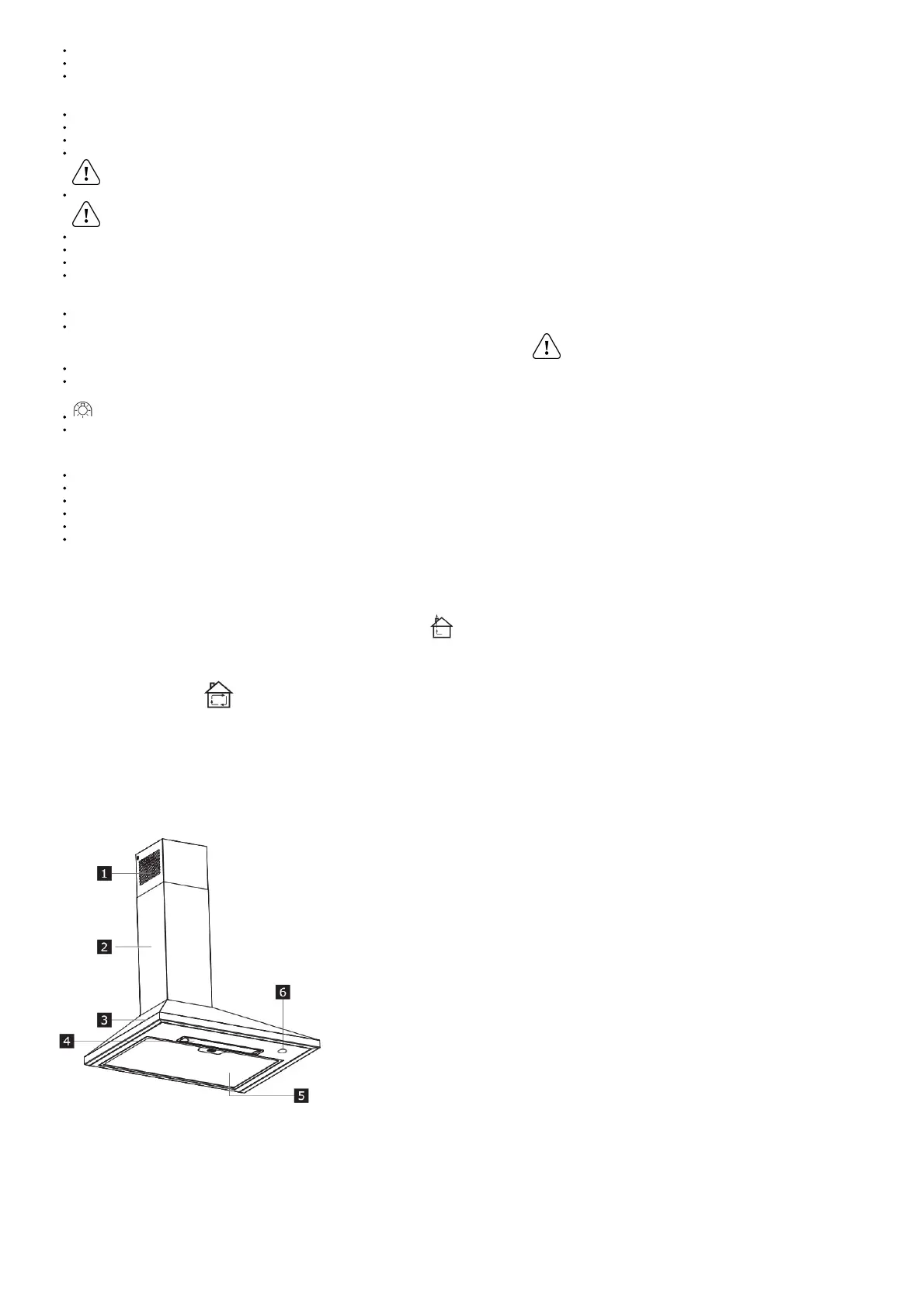

Product description
1. Upper Chimney
2. Lower Chimney
3. Hood body
4. Lighting
5. Grease filters
6. Control Panel
Control Panel
