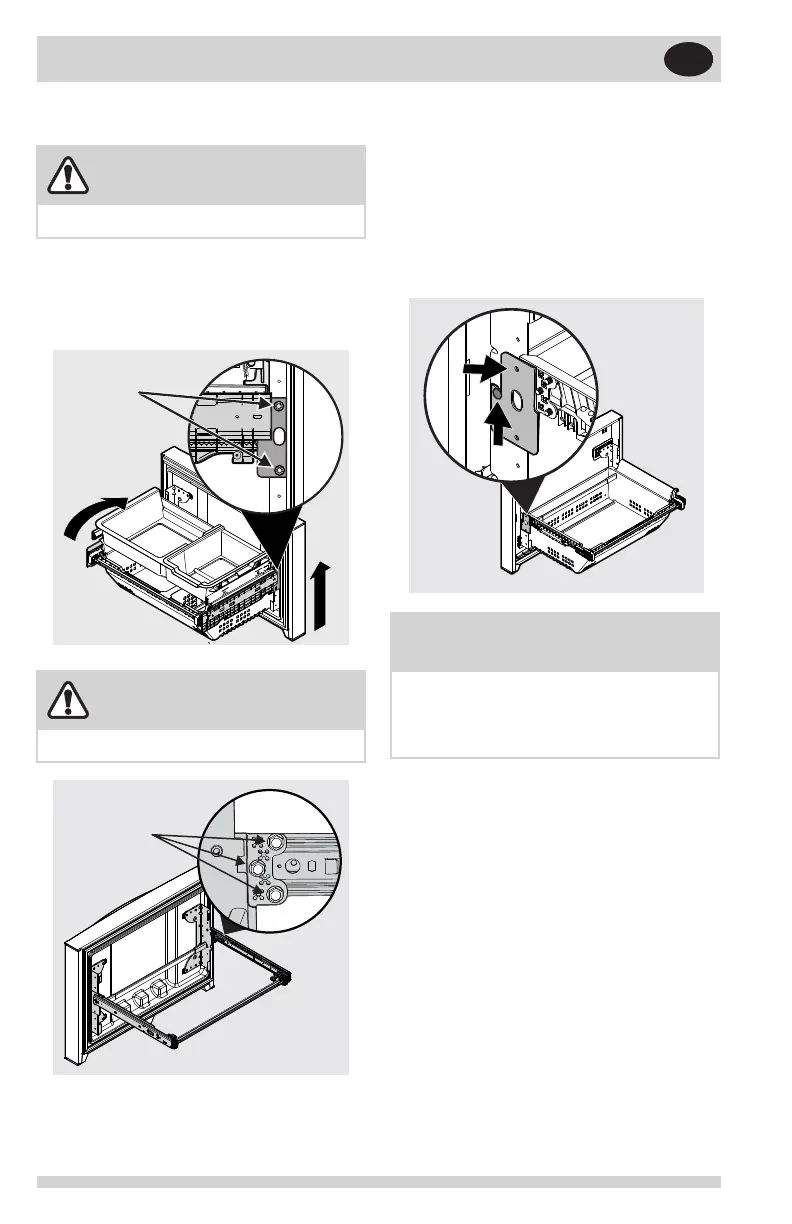

DOOR REMOVAL
1. Remove 4 hex head drawer screws
(2 per side) that secure the drawer to
the slide assemblies.
2. Lift up drawer to remove.
Remove
Hex Head
Drawer
Screw
NOTE
To locate the pin, look inside the drawer
and the pin is next to the door liner
and the slides. Not all parts are shown
in the illustration.
1. Extend the Freezer slides from the unit.
2. Carefully align support pin with hooks
on end of freezer slides and then lower
freezer door onto slides.
3. Replace the 4 hex head screws that
secure the slides to the door (2 on each
side) and tighten.
CAUTION
Drawer is heavy. Use caution when lifting.
CAUTION
Do Not loosen or remove the 3 hex screws.
