Ikegami HTM-1550R - Page 142

l
1
l 2
l
3
'
4
1001
VIDEO PROCESS BOARD
'
1102
1002
'
VIDEO PROCESS PARTS PM-903327 99033-20270
No. INDEX PARTS NAME PARTS No. ct t y
1001 4-A BNC METAL (1) M4-923418 (B) 1
1002 3-B SHIELD PLATE (V) M4-923681 I
1003 2-B SUPPORT M4-923680 (A) 2
SCREW
No. INDEX PARTS NAME
1101 2-C SCREW
1102 1-B, 3-B SCREW
PARTS No.
MCB3-4FN
MCB3-6FN
ct ty
1
4
HTM-1550R/2050R
- 128 -

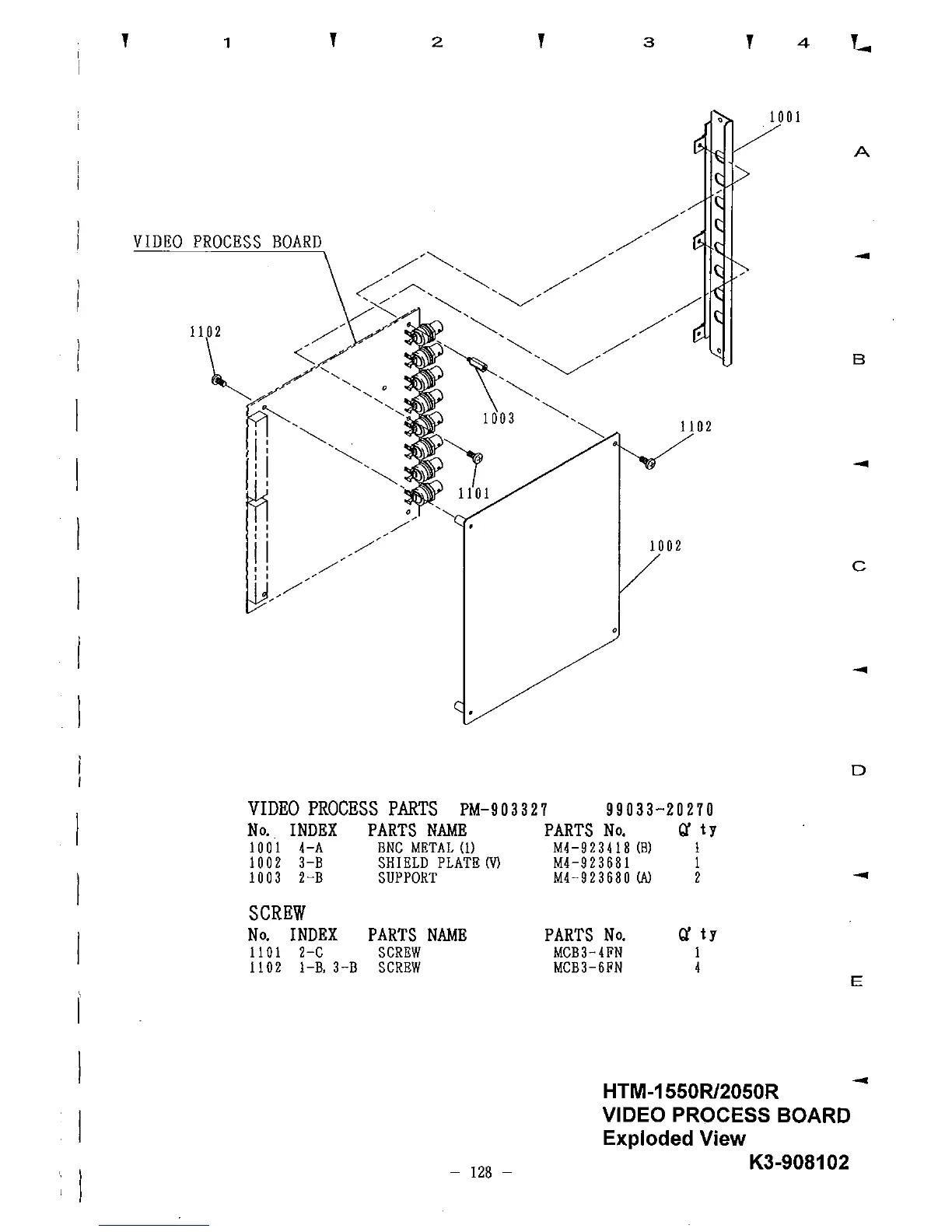

VIDEO PROCESS BOARD
Exploded View
K3-908102
l ...
A
-
B
-
C
-
D
.....
E
-
