RGB OUT BOARD
RGB OUT BOARD PARTS PM-903384 99033-20840
No. INDEX PARTS NAME PARTS No. " I Y
1001 3-A HEAT SINK (1) (RGB) M4-923539 1
1002 1-B HEAT SINK (2) (RGB) M4-923541 . 3
1003 2-A HEAT SINK (3) (RGB) M4-923689 1
SCREW
No. INDEX
1101 1-B
1102 4-A
HTM-1550R/2050R
RGB OUT BOARD

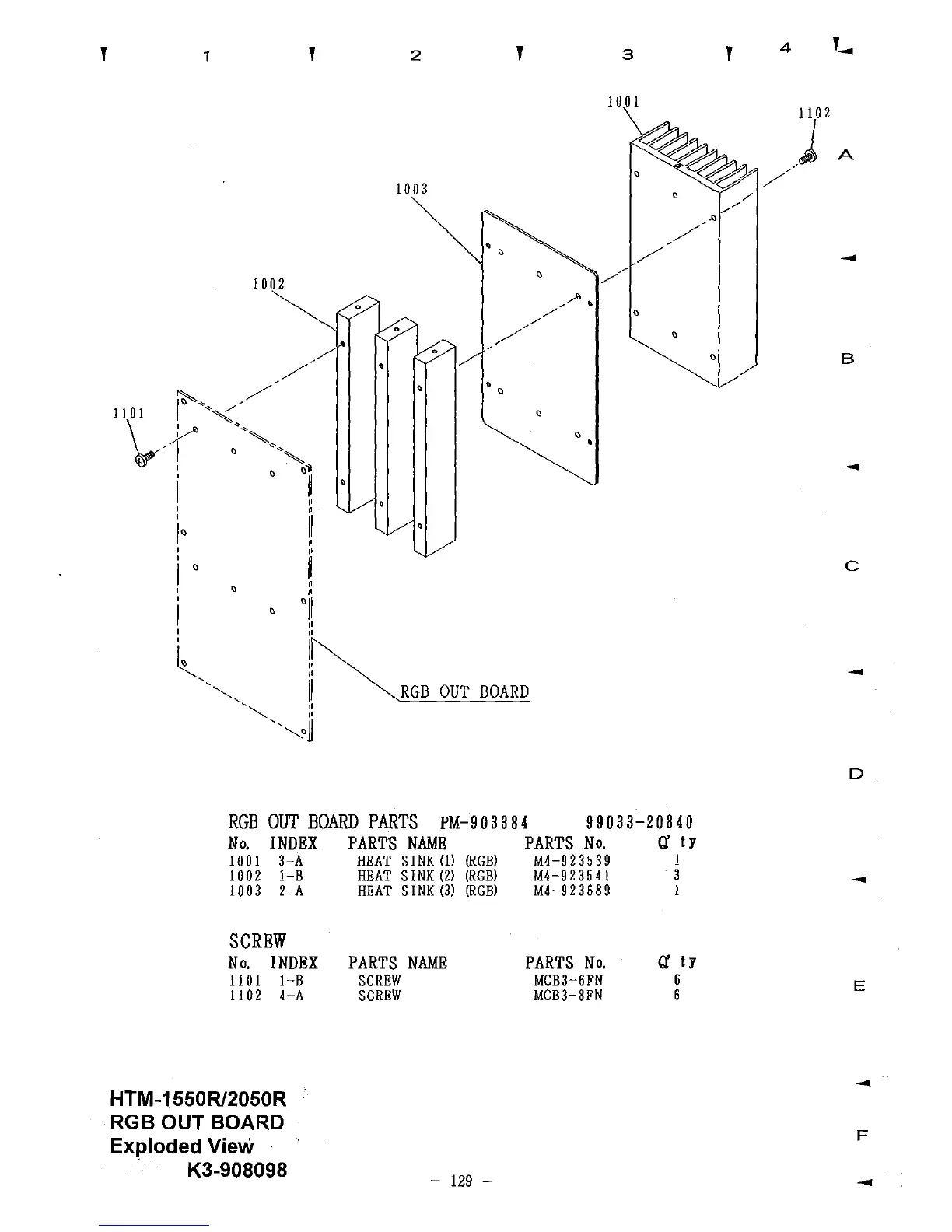

Exploded View
. K3-908098
PARTS NAME
SCREW
SCREW
- 129 -
PARTS No.
MCB3-6FN
MCB3-8FN
