ilco 045 HD - Operating Parts Identification

Part no. Identification
024B-1 Carriage
025-3X Vise jaw assembly
025-8 Wing nut
045-23
Car
riage shaft
P-X23MC P-X23MC cutter
814-00-51 Nylon brush
045-49
Cutter guide (stylus)
045-55A Adjusting screw
040-56 Key gauge
025-62A On/Off switch
045-86X Safety hood assembly
045-87 Safety shield

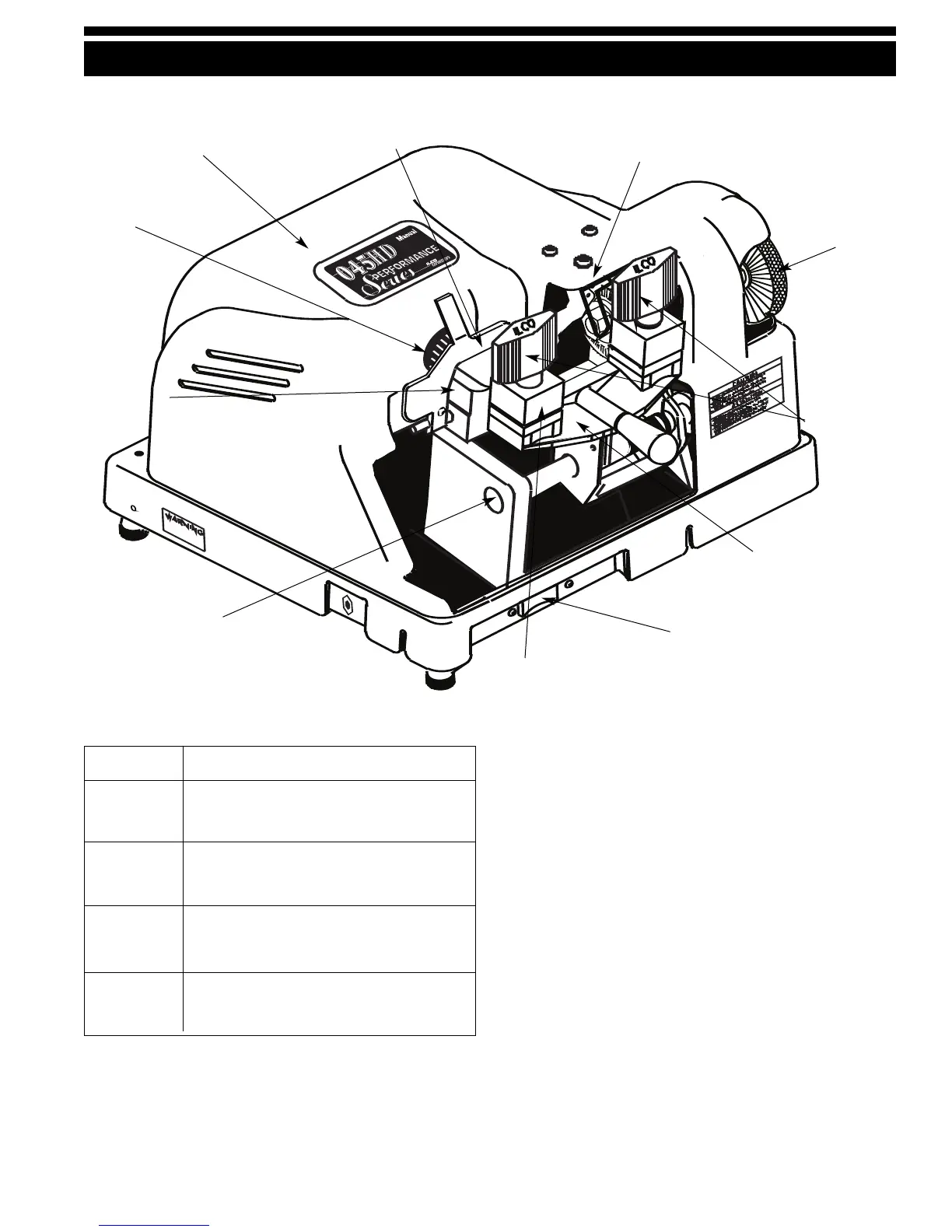

OPERATING PARTS
5
Key gauge
Safety shield
Nylon
brush
On / Off
power switch
Carriage
Vise jaw
assembly
Operating parts identification
Wing nut
S
afety hood assembly
Carriage
shaft
Cutter guide
Depth
D
ial
