Suggested wall cut out sizes. (Suits Standard fascia & larger)
IMPORTANT: Allow min. 150mm up from oor when tting standard window fascia
and extra if skirting is tted to the wall.
Matrix MODEL HEIGHT (Y) MIN WIDTH (X) MIN DEPTH (Z) MIN
GFX-S 780m 920mm 600mm
GFX-M 865mm 1020mm 600mm
GFX-L 950mm 1120mm 600mm
NOTE: The minimum width, depth and height
shown in the table below relate to standard
oor mounted fascia dimensions.
A more detailed dimension sheet is available
from your dealer.
A1
C1
Minimum
Width
B1
All dimensions for the Illusion Matrix series of Gas Log Fires are correct at the time of printing. It is always advisable to check
dimensions and clearances with your Illusion dealer before commencing installation thus avoiding potential problems during
the installation.
This appliance is certied only to be used with the specied ue system.
GFX-All Model DIMENSIONS
ALL DIMENSIONS IN MILLIMETRES

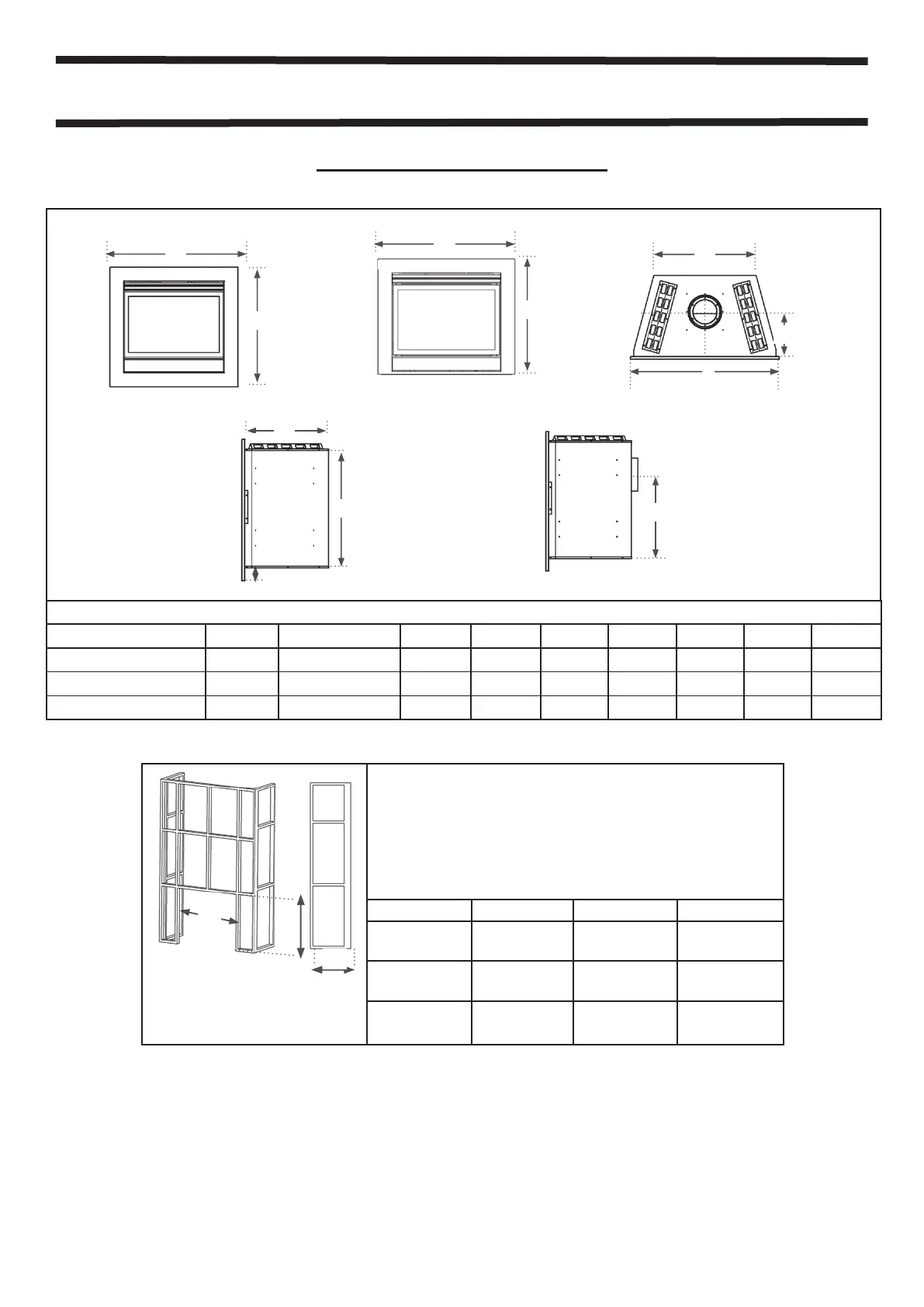

External dimensions for all GFX Matrix Gas Log Fires (All dimensions in millimetres)
Matrix MODEL
A B1 & B2 C D E F G H I
GFX-S 945
B1=875 / B2=795
740 520 530 80 650 285 903
GFX-M 1045
B1=960 / B2=880
830 520 612 80 750 285 1003
GFX-L 1140
B1=1045 / B2=972
920 520 701 80 850 285 1099
B1
A
WALL MOUNT FASCIA
SIDE VIEW REAR
MOUNTED FLUE
E
I
G
H
TOP VIEW
TOP FLUE
D
SIDE VIEW TOP
MOUNTED FLUE
C
F
(WALL MOUNT FASCIA)
A
B2
FLOOR WALL MOUNT FASCIA
FLOOR
X
Y
Z
