MATRIX MANUAL 2014
Illusion-Australian Made Gas Log Fires
LIGHTING INSTRUCTIONS
CAUTION: HOT WHILE OPERATING.
DO NOT TOUCH. KEEP CLOTHING, CHILDREN AND FURNITURE AWAY.
KEEP BURNER AND CONTROL COMPARTMENT CLEAN AND FREE FROM LINT, DUST ETC.
This appliance shall be installed only by authorised personnel and in accordance with the manufacturer’s installation
instructions, local gas tting regulations, municipal building codes, electrical wiring regulations, AS/NZS5601 - Gas
Installations and any other statutory regulations.NEVER ATTEMPT TO LIGHT THE APPLIANCE IF YOU CAN SMELL
GAS. IF IN DOUBT, CONTACT YOUR GAS SUPPLIER, APPLIANCE INSTALLER AND OR ILLUSION SERVICE
DEPARTMENT FROM A NEIGHBOURS HOME. IF YOU CAN SMELL GAS, DO NOT USE MOBILE PHONES OR
ANY ELECTRICAL APPLIANCE, OR ELECTRIC SWITCH IN THE BUILDING.
This appliance incorporates a live fuel effect, which is designed to operate with luminous ames and may exhibit slight
carbon deposition.

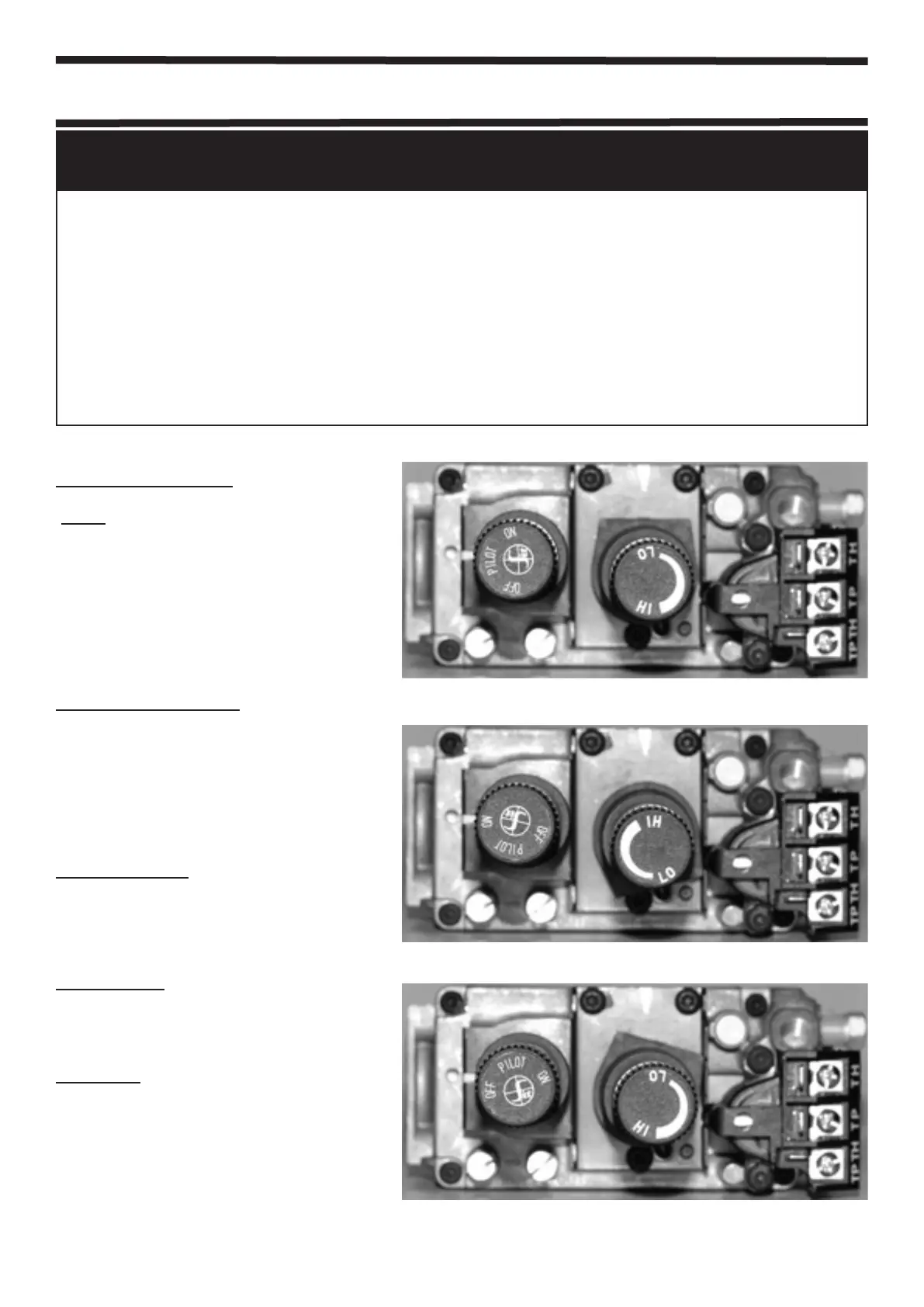

PILOT FLAME IGNITION
Depress and turn the control knob to the
“PILOT” position.
Depress the button and ignite the pilot ame
(by pressing the red igniter button) while
keeping the knob fully depressed for a
few seconds. (Fig. 1).
Release the knob slowly and check that the
pilot ame stays lit. If it goes out, repeat the
ignition operation.
MAIN BURNER IGNITION
Turn the HI-LO control knob to HI.
Depress and turn the control knob to the
“ON” position. (Fig. 2)
When the automatic solenoid valve is
energized, gas passage to the main burner
is opened.
PILOT POSITION
To keep the main burner closed and the pilot
ame lit, depress and turn the control knob
to the “PILOT” position.
TURNING OFF.
Depress and turning the control knob to the
“OFF” position Fig. 3)
CAUTION:
The restart interlock device prevents ignition
of the appliance until the ame failure has
stopped gas ow. At the end of this period
it is possible to carry out the re-ignition
operation.
FIGURE 1.
FIGURE 2.
FIGURE 3.
