4. Remove the DY Wedges and slightly tilt the
Deflection Yoke horizontally and vertically to
obtain the best overall convergence.
5. Fix the Deflection Yoke by carefully inserting the
DY Wedges between CRT and Deflection Yoke.

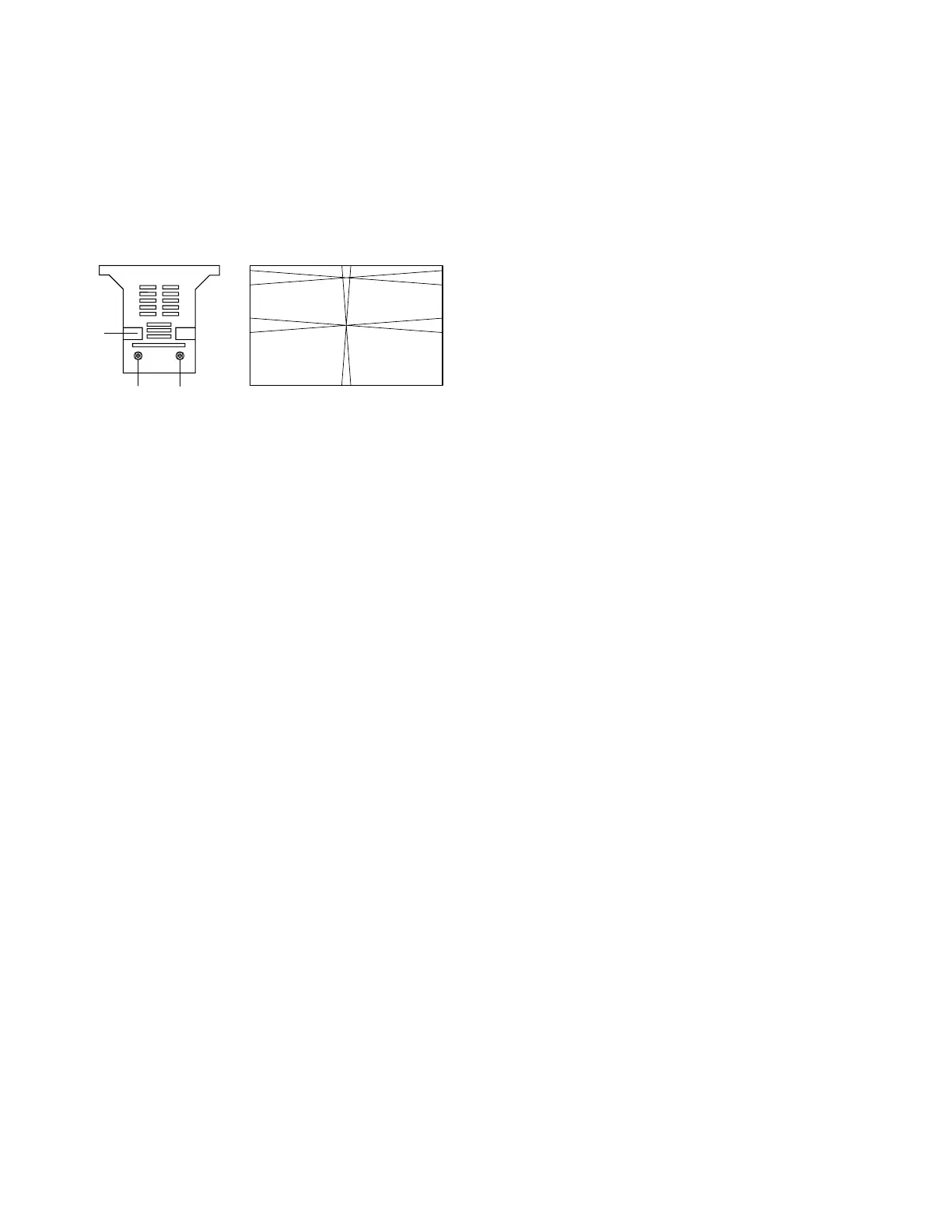

22. Yh, Yv, Xv Adjustment
1. Adjust the volume of Deflection Yoke(Yh, Yv, Xv)
to get good convergence.
23. Software Reset
To reset software, press [5] button on the remote
control unit for at least 5 seconds after pressing [CH
RETURN] button on the remote control unit.
Xv
Y
H
Yv
FRONT
Y
H
Yv
Xv
