20060224 13-1 L4803CA
MECHANICAL PARTS LIST
PRODUCT SAFETY NOTE: Products marked with a
# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.
NOTE: Parts that are not assigned part numbers
(---------) are not available.
Table 1 (V501 and DY551 Combination)
Note 1: Purity and Convergence Adjustments must be
performed following CRT replacement. Refer to
Electrical Adjustment Instructions.
Note 2: Please confirm CRT Type No. on the CRT
Warning Label which is located on the CRT. Then See
the Table 1 for V501 and DY551 combination chart.
Please refer this CRT, Deflection Yoke combination
chart for parts order.

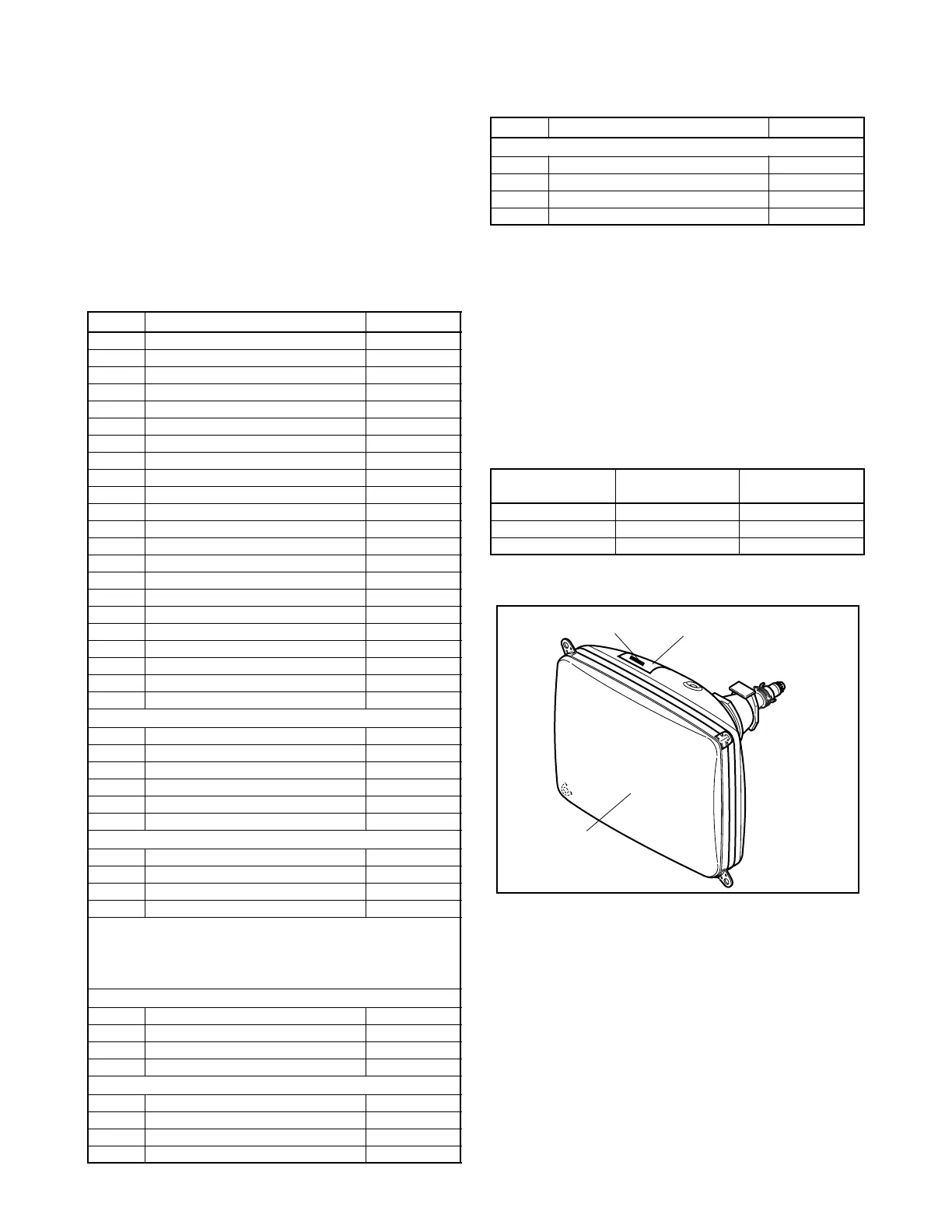

CRT Warning Label Location
Ref. No. Description Part No.
A-1 FRONT CABINET L4803UD 1EM021169
A-2 REAR CABINET L4802UC 1EM020649
A-3 CONTROL PLATE L4803UD 1EM321752
A-4# RATING LABEL L4803UD ----------
A-5 BRAND BADGE L4803UD 1EM422624
B-1 SPRING TENSION B0080B0 EM40808 26WH006
B-2 SCREW L1500UA 0EM406142A
B-11 CLOTH 190X15XT0.5 TS7623
B-12 CLOTH L1440JL 15X55XT1.0 0EM406793
B-13 CLOTH 190X15XT1.0 1EM420398
B-20# DEGAUSS HOLDER L1520UA 0EM406700
CLN551 CRT GND WIRE WX1L6615-001
CLN801 WIRE ASSEMBLY WX1L6615-002 WX1L6615-002
CLN802 WIRE ASSEMBLY WX1L2805-003 WX1L2805-003
DG691# DEGAUSSING COIL ZTM-58 LLBH00ZTM058
L-8 SCREW P-TIGHT 4X18 BIND HEAD + GBJP4180
L-9 SCREW TAPPING M4X14 DBF14140
L-10 SCREW P-TIGHT 3X10 BIND HEAD+ GBHP3100
L-13 SCREW ASSEMBLED M3X12 0EM406746A
PB6 CLOTH(65) L7735TR 65X10X0.5T 0EM402149
SP801 SPEAKER S0516F01 DSD0813XQ001
SP802 SPEAKER S0516F01 DSD0813XQ001
PACKING
S-1 CARTON L4803UD 1EM423061
S-2 STYROFOAM TOP ASSEMBLY L4805UF 1EM422668
S-3 STYROFOAM BOTTOM ASSEMBLY L4805UF 1EM422669
S-4 SHEET SET PCEC 003502019816 0EM403887
S-5 SERIAL NO.LABEL L4803UD ----------
S7 HOLD PAD L4802UC 1EM423077
ACCESSORIES
X-1 REMOTE CONTROL NE906UD NE906UD NE906UD
X-2 DRY BATTERY R03/2S XB0M451T0006
X-3# OWNERS MANUAL L4803UD 1EMN21490
X-5 BAG POLYETHYLENE 235X365XT0.03 0EM408420A
Note:
1. V501 (CRT) HAS COUPLE OF SUBSTITUTIONAL PARTS AND EACH PARTS
ALSO HAS MATCHING COMBINATION WITH DY551.
PLEASE SEE TABLE 1 FOR DETAILS OF MATCHING COMBINATION.
2. DY551 (DEFLECTION YOKE) HAS MATCHING COMBINATION WITH V501.
PLEASE SEE TABLE 1 FOR DETAILS OF MATCHING COMBINATION.
CRT TYPE A
DY551# DEFLECTION YOKE SCD-29319 LLBY00ZQS018
V501# CRT A68QCP693X TCRT190SM032
V501-1 PCM JH88DTA XM04000BV010
V501-2 WEDGE FT-00110W XV10000T4001
CRT TYPE B
DY551# DEFLECTION YOKE KDY4UWG78X LLBY00ZMS033
V501# CRT A68LZU185X TCRT190MS017
V501-1 PCM JH88DTA XM04000BV010
V501-2 WEDGE FT-00110W XV10000T4001
CRT TYPE C
DY551# DEFLECTION YOKE 6150Z-1277V LLEY0Z0GS001
V501# CRT A68QCU820X TCRT190GS049
V501-1 PCM JH88DTA XM04000BV010
V501-2 WEDGE FT-00110W XV10000T4001
V501: CRT Type No. V501: CRT Part No.
DY551: Deflection
Yoke Part No.
A68QCP693X TCRT190SM032 LLBY00ZQS018
A68LZU185X TCRT190MS017 LLBY00ZMS033
A68QCU820X TCRT190GS049 LLEY0Z0GS001
Ref. No. Description Part No.
CRT
CRT Warning Label
CRT Type No.
