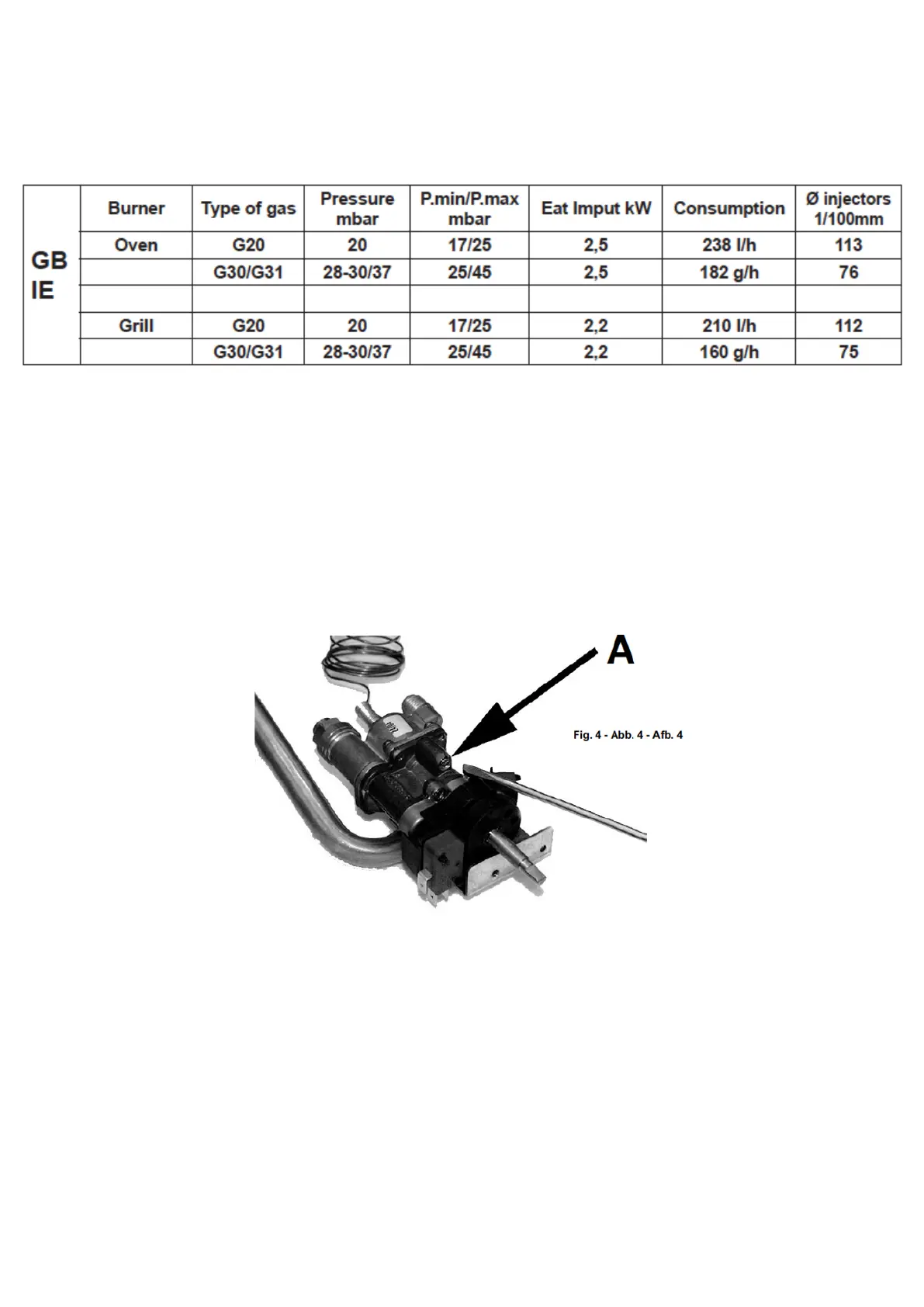

Injectors Table
The diameters in hundredths of millimetre are stamped on the nozzle.
Adjustment of the Minimum Setting Following Conversion to a different Gas Type
Proceed to disassemble the front panel: - for the front panel, unscrew the two rear fixing screws-
for glass fronts, unscrew the two lock rings under the knob.
Conversion from natural gas to liquid gasAfter removing the front panel, insert the screwdriver in
the hole in the front wall of the instrument panel and turn regulation screw A (fig. A)
clockwise.Conversion from liquid gas to natural gasAfter removing the front panel, light the over
with thermostat set to 250 °C for at least 10-15 minutes. Then, turn the thermostat to the minimum
position. Then turn the bypass screw A counterclockwise until you see a reduced by stable flame.
Check that the flame does not go out when the door of the oven is opened and closed repeatedly.
If the flame goes out, slight increase the minimum regulation setting.
After converting the appliance to a different type of gas,remember to change the data plate to one
with the new data(gas type and pressure). (Fig. 1).
REPLACING THE GAS GRILL NOZZLE
1)
Remove the burner screw located at the top front of the oven cavity
2)
Remove the burner together with its heat elements
3)
Remove the nozzle using the 7mm socket wrench
4)
Fully tighten the new nozzle which must be if the diameter indicated in the table above
5)
Put back the burner and secure it with the screw
