ILVE built-in cooktop User Manual

Cut Out Dimensions for Built-in H / HF Series
Cut Out Dimensions for Built-in HP / XLP Series
Overall Dimensions for P Series Freestanding

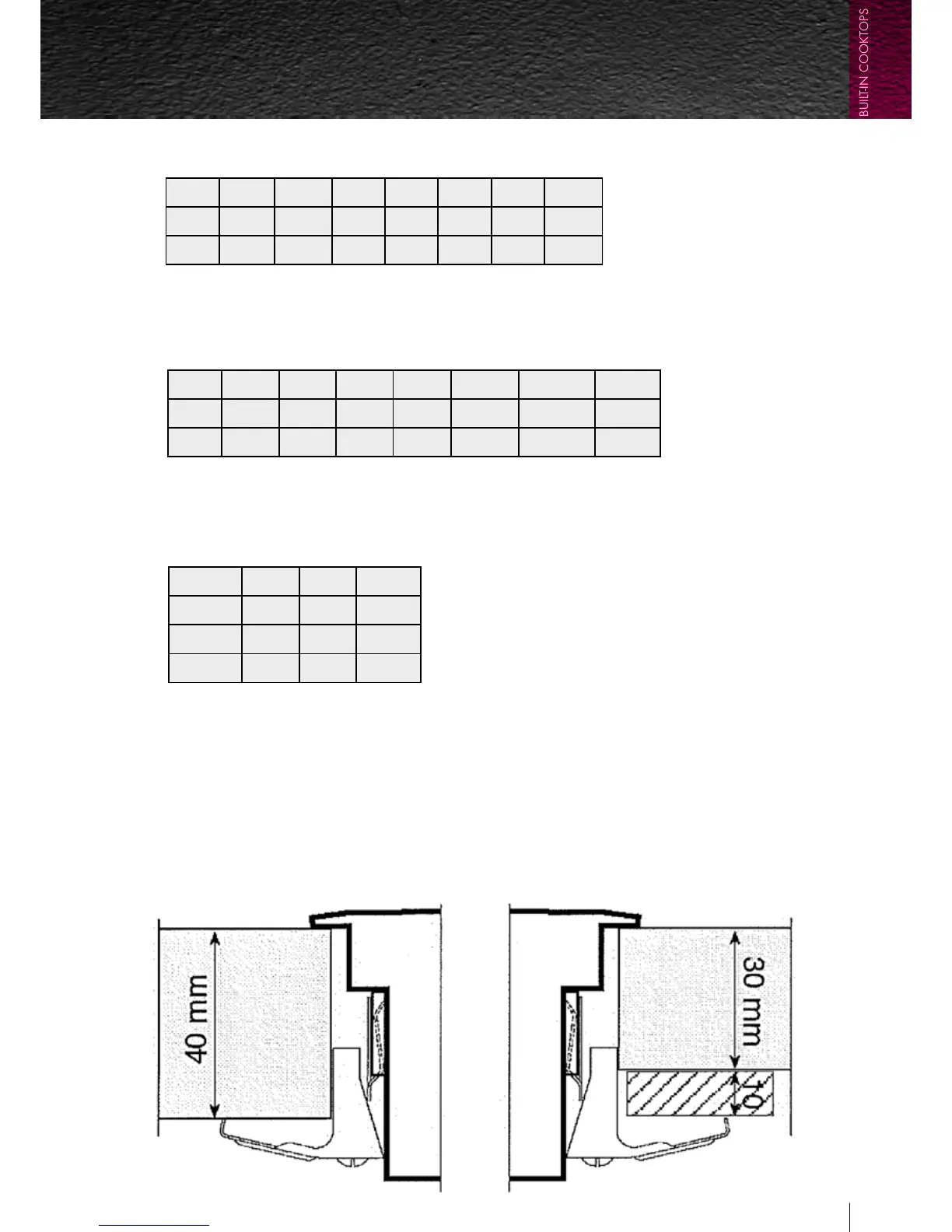

BUILT-IN INSTALLATION
To avoid liquid infiltrations under the working tops, it is necessary to apply a gasket which is supplied with
the top. The fixing to the furniture is carried out with clamps assembled on the appliance as per Figure 2.
For Freestanding cooking hob models (P665, P965, P1265) must be installed with the top of the hob level
with the bench and must support a minimum weight of 100 kg.
Mod P665 P965 P1265
A
600 900 1200
B
650 650 650
Height
85 85 85
Mod H30 H360 H60 H70 H38 H39 HF40
A
270 555 555 555 755 835 360
B
475 475 475 475 475 475 490
Mod HP45 HP65 HP95 HP75 HP125 HP1230 XLP90
A
380 570 850 680 1130 1120 875
B
481 485 485 490 480 300 570
Figure 2
Built-in cooktops
