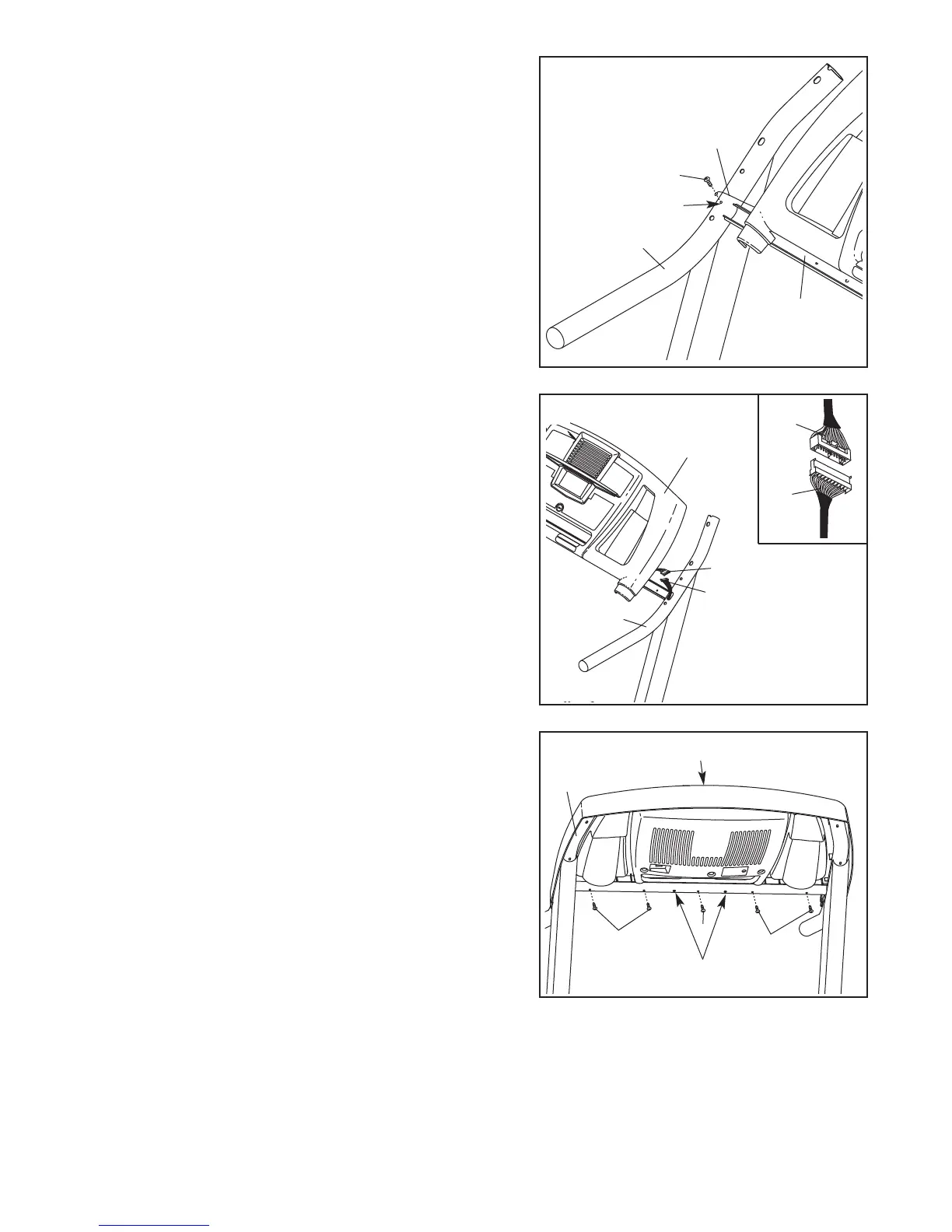

7. Set the console assembly on the Handrail (20). Be care-
ful to avoid pinching any of the wires. Hand tighten
five Screws (3) into the Handrail and the console assem-
bly.
Do not put Screws into the two indicated holes.
Start all five Screws, but do not tighten them yet.
Console Assembly
3
3
No Screws
3
20
7
5. While a second person holds the console assembly near
the Handrail (20) as shown, attach the ground wire to the
i
ndicated hole in the Handrail with a Silver Ground Screw
(94).
20
Hole
Ground
Wire
Console
Assembly
5
9
4
6. While a second person continues to hold the console as-
sembly, look underneath it and locate the Console Wire
Harness (78).
Connect the Console Wire Harness (78) to the Upright
Wire Harness (77).
Make sure to connect the connec-
tors properly (see the inset drawing). The connectors
should slide together easily and snap into place. If the
connectors do not slide together easily and snap into
place, turn one connector and then try again. IF THE
CONNECTORS ARE NOT CONNECTED PROPERLY,
THE CONSOLE MAY BE DAMAGED WHEN THE
POWER IS TURNED ON. Then, insert the Wire
Harnesses down into the Handrail (20).
78
77
Console
Assembly
6
77
78
20
