9
10.
Attach the Latch Housing (73) to the Left Upright (13)
with two Screws (3); start both Screws and then
tighten them. Make sure that the large hole in the
Latch Housing is on the indicated side.
Remove the knob from the pin. Make sure that the collar
and the spring are on the pin. (Note: If there are two col-
lars, place one on each side of the spring.) Next, insert
the pin into the Latch Housing (73). Then, tighten the
knob back onto the pin.
Before operating the treadmill, plug in the power
cord (see page 11), and then lower the treadmill to
the lowest incline level (see page 13).
3
3
Pin
Spring
Collar
Knob
73
10
11. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of clear
plastic on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the tread-
mill. Note: Extra hardware may be included. Keep the included allen wrench in a secure place; the large allen
wrench is used to adjust the walking belt (see page 23).
13
Large
Hole

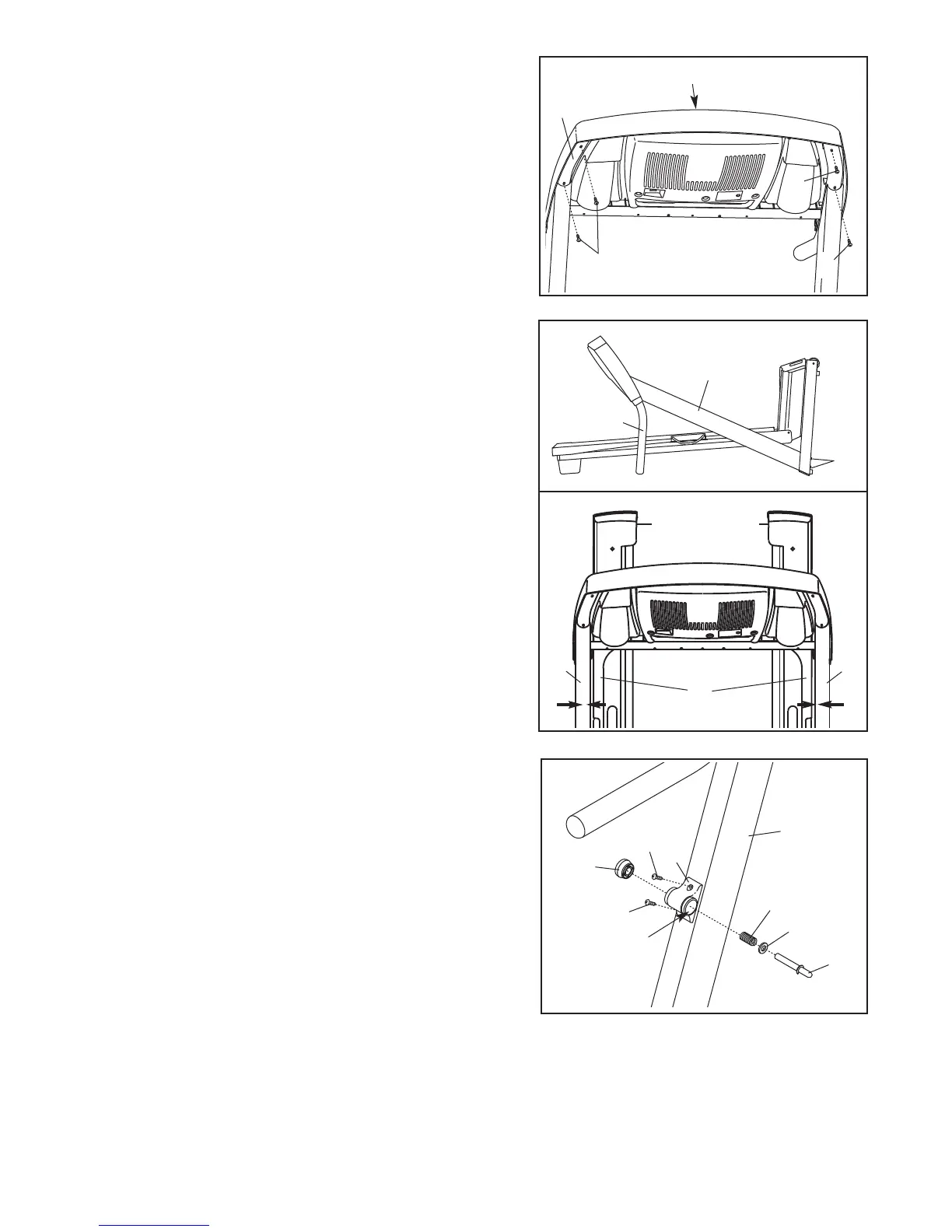

9. Lower the Uprights (13, 14) until the Handrail (20) is
touching the floor.
See the lower drawing. Position the Uprights (13, 14) so
the Frame (58) is centered between them.
See the upper drawing. Firmly tighten the four Upright
Bolts (65). Then, raise the Uprights (13, 14) back to the
vertical position.
13
13, 14
20
58
14
Top View
9
65
8
. Hand tighten four additional Screws (3) into the Handrail
(20) and the console assembly. Then,
tighten all nine
S
crews used in step 7 and this step; do not over-
tighten the Screws.
Console Assembly
3
3
3
20
8
To Next Page
