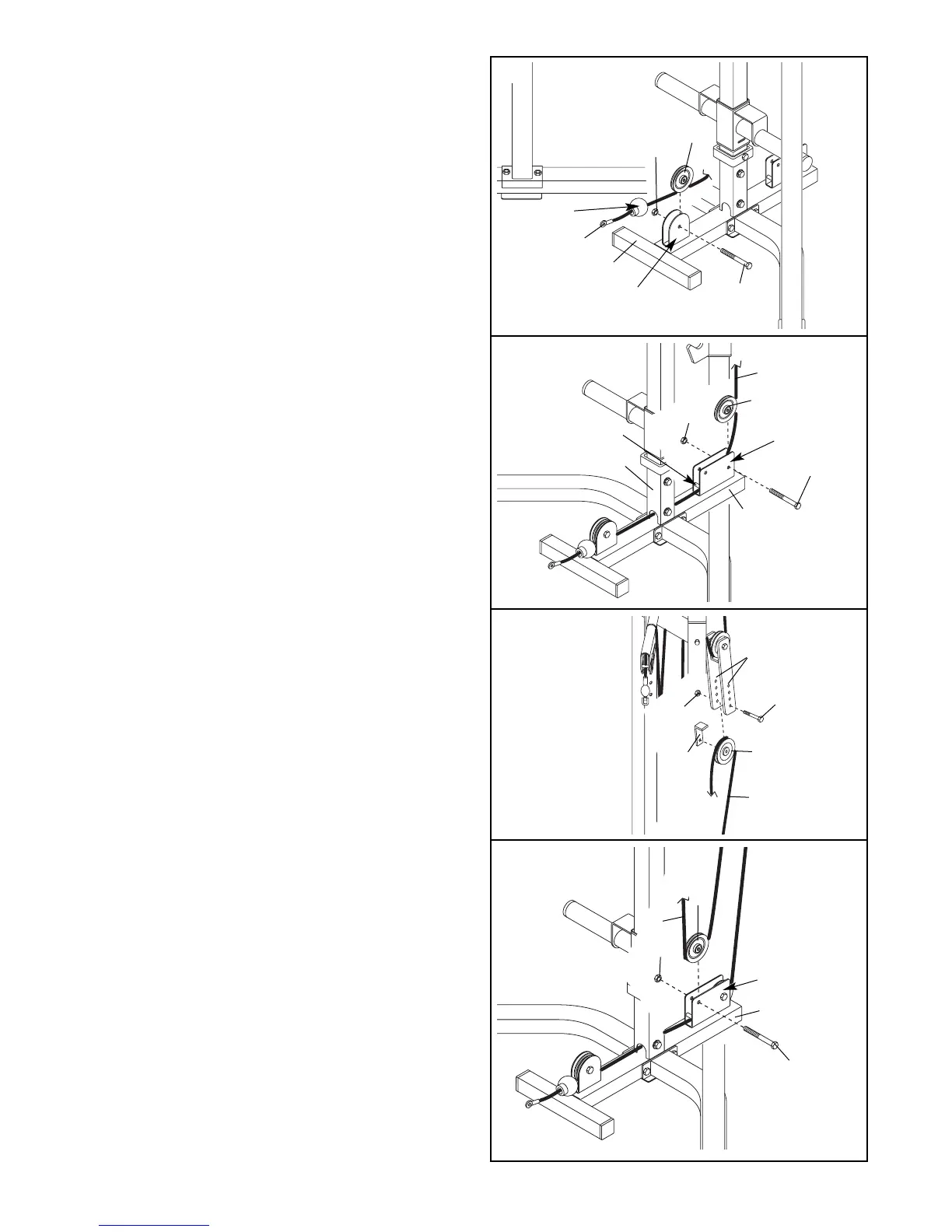

Image 5.0 - Step 35: Low Cable to Bracket Routing; Step 36: Low Cable to Center Base Pulley Routing; Step 37: Low Cable to Pulley Plates Routing; Step 38: Low Cable to Center Base Pulley Routing

36. Route the Low Cable (59) through the Center
Upright (3) and under the bar in the bracket on the
Center Base (24). Wrap the Cable around an
88mm Pulley (36). Attach the Pulley to the rear
hole in the bracket on the Center Base with an
M10 x 45mm Bolt (76) and an M10 Nylon Locknut
(77).
36
37. Wrap the Low Cable (59) around a 4 1/2” Pulley
(35). Attach the Pulley and a Large Cable Trap
(55) to the bottom set of holes in the pair of
Pulley Plates (31) with an M10 x 45mm Bolt (76)
and an M10 Nylon Locknut (77).
38. Wrap the Low Cable (59) around an 88mm Pulley
(36). Attach the Pulley to the front hole in the
bracket on the Center Base (24) with an M10 x
45mm Bolt (76) and an M10 Nylon Locknut (77).
37
38
15
76
77
36
3
59
24
76
76
77
77
55
35
36
Bracket
59
24
59
31
Bracket
Bar
35. Locate the Low Cable (59). Lay the Cable inside
the bracket on the Center Base (24) so that the
ball is on the side shown. Attach a 4 1/2” Pulley
(35) inside the bracket with an M10 x 45mm Bolt
(76) and an M10 Nylon Locknut (77).
35
59
24
35
77
76
Ball
Bracket
