12

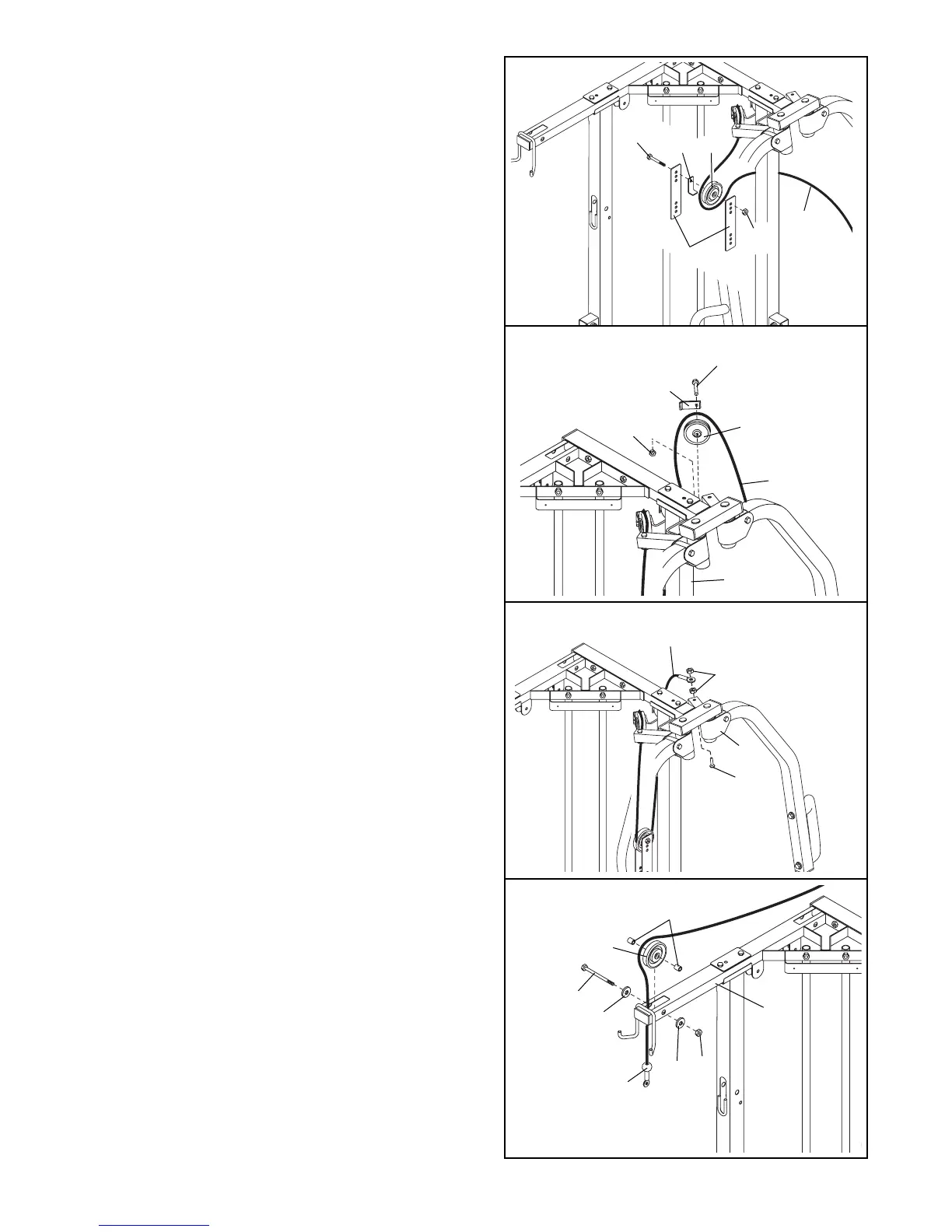

22. Remove the preassembled 3/8” x 2” Bolts (54) from
one set of Adjustable Pulley Plates (23).
Wrap the Butterfly Cable (73) around a 3 1/2”
Pulley (24). Attach the Pulley and a Cable Trap (25)
between the top holes of the Adjustable Pulley
Plates (23) with a 3/8” x 2” Bolt (54) and a 3/8”
Nylon Locknut (50). Be sure that the Cable Trap
is turned to hold the Cable in place.
23. Wrap the Butterfly Cable (73) around a “V”-Pulley
(27). Attach the Pulley and a Large Cable Trap (32)
to the bracket on the Butterfly Upright (1) with a
3/8” x 2 1/2” Bolt (87) and a 3/8” Nylon Locknut
(50). Be sure that the Cable Trap is turned to
hold the Cable in place.
24. Secure a 3/8” x 2 1/4” Bolt (79) to the Left Pivot
Arm (71) with a 3/8” Nylon Jamnut (63).
Attach the Butterfly Cable (73) to the 3/8” x 2 1/4”
Bolt (79) with a 3/8” Nylon Jamnut (63). Note: Do
not fully tighten the Nylon Jamnut; the Butterfly
Cable must be able to pivot easily.
25. Locate the Ab Cable (47). Insert the Ab Cable up
through the Press Top Frame (9) and wrap it
around a 3 1/2” Pulley (24). Attach a 3/8” Flat
Washer (48) and a 5/8” x 3/4” Bushing (66) to a
3/8” x 3 1/4” Bolt (62). Slide the Bolt through the
Press Top Frame and the Pulley. Secure another
5/8” x 3/4” Bushing and 3/8” Flat Washer to the Bolt
with a 3/8” Nylon Locknut (50).
25
22
23
24
48
48
9
50
50
27
73
71
63
79
54
25
24
50
73
23
87
32
73
1
47
24
66
62
