13

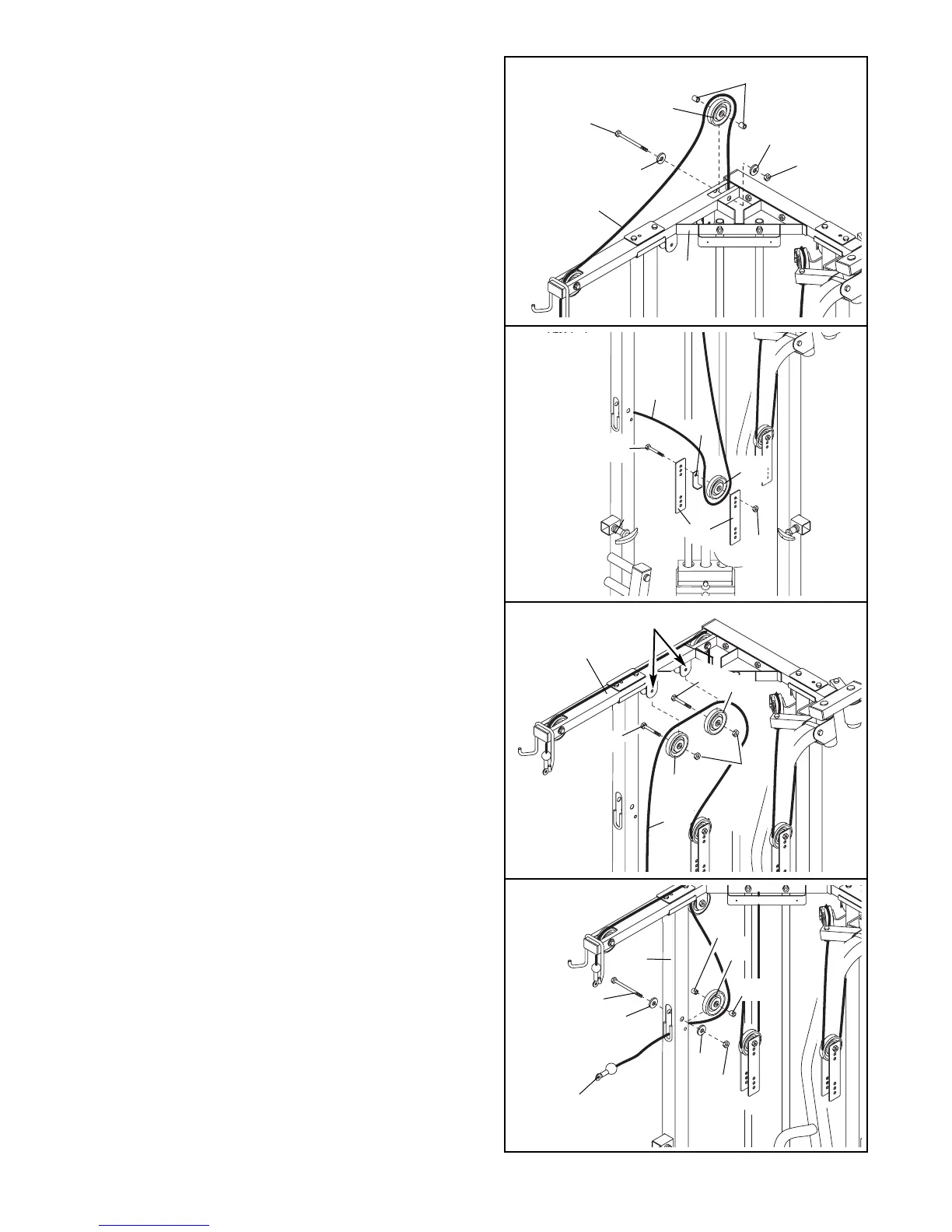

26. Wrap the Ab Cable (47) around a 3 1/2” Pulley (24).
Insert the Ab Cable down through the Press Top
Frame (9). Attach a 3/8” Flat Washer (48) and a
5/8” x 3/4” Bushing (66) to a 3/8” x 3 1/4” Bolt (62).
Slide the Bolt through the Press Top Frame and the
Pulley. Secure another 5/8” x 3/4” Bushing and 3/8”
Flat Washer to the Bolt with a 3/8” Nylon Locknut
(50).
27. Remove the preassembled 3/8” x 2” Bolts (54) from
the other Adjustable Pulley Plates (23).
Wrap the Ab Cable (47) around a 3 1/2” Pulley (24).
Attach the Pulley and a Cable Trap (25) between
the top holes in the Adjustable Pulley Plates (23)
with a 3/8” x 2” Bolt (54) and a 3/8” Nylon Locknut
(50). Be sure that the Cable Trap is turned to
hold the Cable in place.
28. Wrap the Ab Cable (47) around a 3 1/2” Pulley (24).
Attach the Pulley to the rear bracket on the Press
Top Frame (9) with a 3/8” x 2” Bolt (54) and a 3/8”
Nylon Locknut (50). Be sure the Ab Cable is rout-
ed in the direction shown.
Wrap the Ab Pulley (47) around another 3 1/2”
Pulley (24). Attach the Pulley to the forward bracket
on the Press Top Frame (9) with a 3/8” x 2” Bolt
(54) and a 3/8” Nylon Locknut (50).
29. Wrap the Ab Cable (47) around a 3 1/2” Pulley (24)
and slide the Ab Cable through the hole in the
Press Upright (2). Attach a 3/8” Flat Washer (48)
and a 5/8” x 3/4” Bushing (66) to a 3/8” x 3 1/4” Bolt
(62). Slide the Bolt through the Press Upright and
the Pulley. Secure another 5/8” x 3/4” Bushing and
3/8” Flat Washer to the Bolt with a 3/8” Nylon
Locknut (50).
29
26
27
28
66
48
50
48
62
24
47
9
47
23
54
24
50
9
Bracket
48
2
24
47
24
54
54
50
25
62
66
48
50
47
24
66
