5
ASSEMBLY
T
o hire an authorized service technician to assemble the elliptical exerciser, call toll-free 1-800-445-2480.
A
ssembly requires two persons.
P
lace all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included allen wrenches, assembly requires a phillips screwdriver , an adjustable
wrench , and a rubber mallet .

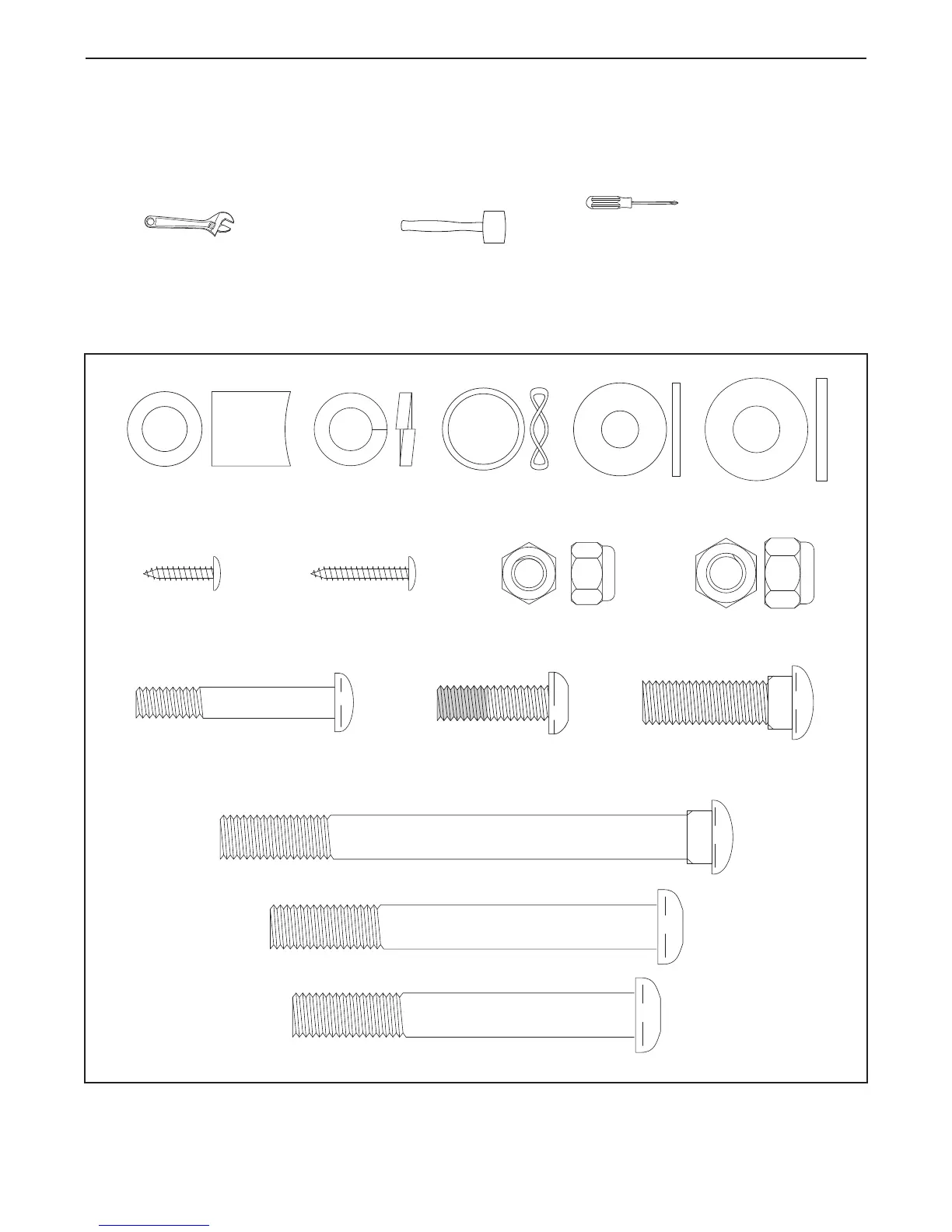

As you assemble the elliptical exerciser, use the drawings below to identify the small parts used in assembly.
The number in parenthesis below each drawing refers to the key number of the part, from the PART LIST on
page 22. The second number refers to the quantity needed for assembly.
Note: Some small parts may have
been pre-assembled. If a part is not in the parts bag, check to see if it has been pre-assembled.
M10 x 112mm Carriage Bolt (34)–4
M10 x 88mm Button Screw (63)–1
M10 x 78mm Button Bolt (27)–2
M4 x 16mm
Screw (66)–4
M10 Nylon
Locknut (29)–6
M8 Nylon
Locknut (46)–4
M10 Split
Washer (70)–3
Frame Spacer (83)–1
M8 x 45mm Button Bolt (50)–4
M10 x 35mm Carriage
Bolt (20)–2
M4 x 22mm
Screw (93)–2
M10
Washer (38)–6
M8.5
Washer (53)–2
Wave Washer
(95)–2
M8 x 25mm Patch
Screw (22)–2
