Image 9.5 Elliptcal - Assembly: Stabilizer Attachment; Attaching Stabilizer Bars

6
1.

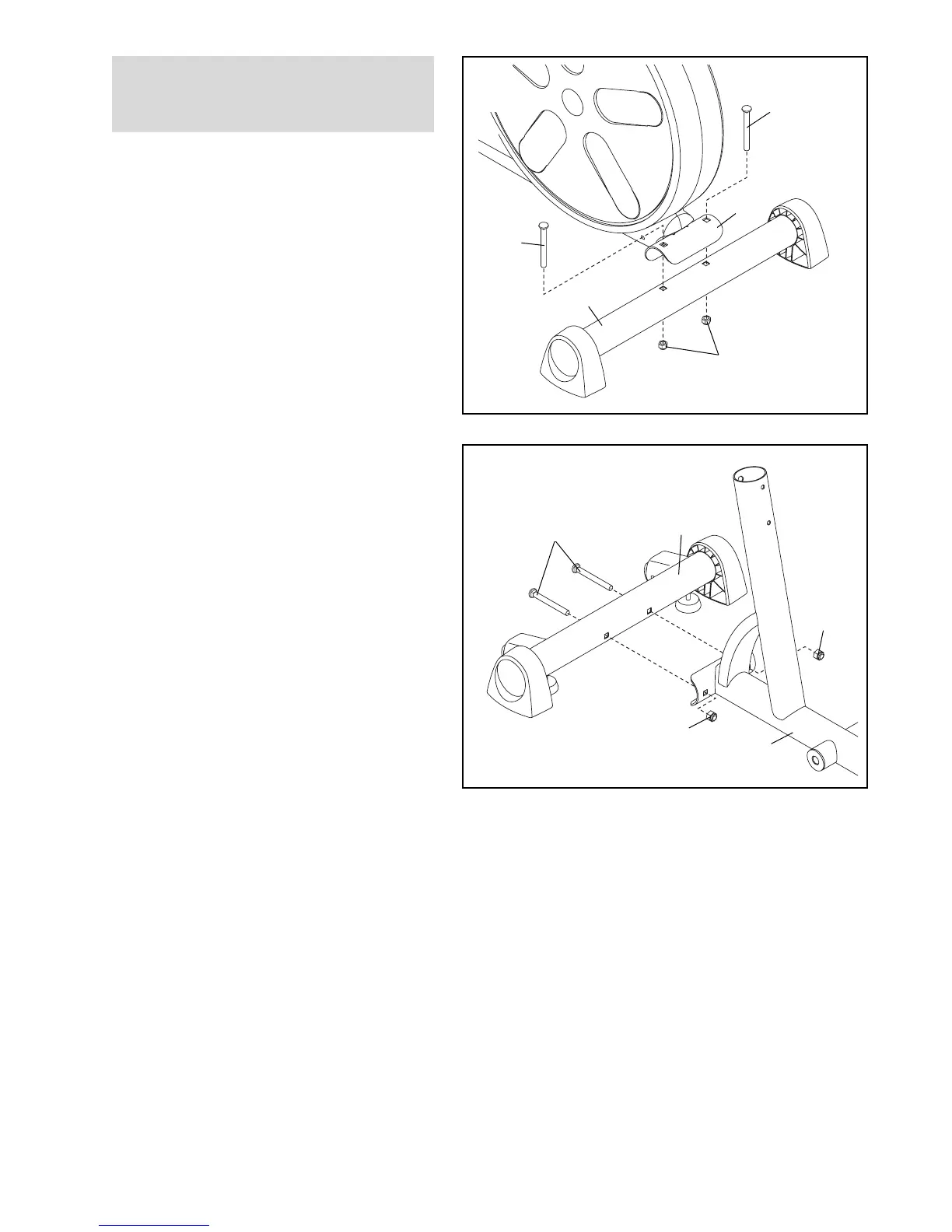

Attach the Rear Stabilizer (35) to the
Frame (1) with two M10 x 77mm Carriage
Bolts (58) and two M10 Nylon Locknuts (84).
2. Attach the Front Stabilizer (3) to the
Frame (1) with two M10 x 77mm Carriage
Bolts (58) and two M10 Nylon Locknuts (84).
84
35
1
58
84
84
58
3
1
58
2
To make assembly easier, read the infor-
mation on page 5 before you begin
assembling the elliptical exerciser.
