5
M8 Split
Washer (95)–2
M8 Washer
(64)–4
M8 x 25mm Patch
Screw (70)–6
M8 Nylon
Locknut (87)–2
M10 Nylon
Locknut (84)–4
Large Wave
Washer (20)–2
Wave Washer
(27)–2
M4 x 19mm
Screw (68)–6
M8 Large
Washer (81)–2
Star Washer
(85)–6
M4 x 22mm
Screw (66)–2
M4 x 16mm
Round Head
Screw (93)–4
M10 x 77mm Carriage Bolt (58)–4
M8 x 69mm Button Bolt (91)–2
M8 x 63mm Bolt Set (67)–2
ASSEMBLY
To hire an authorized service technician to assemble the elliptical exerciser, call 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove all
packing materials; do not dispose of the packing materials until assembly is completed. Assembly requires the
included hex keys and your own adjustable wrench , Phillips screwdriver ,
and rubber mallet .

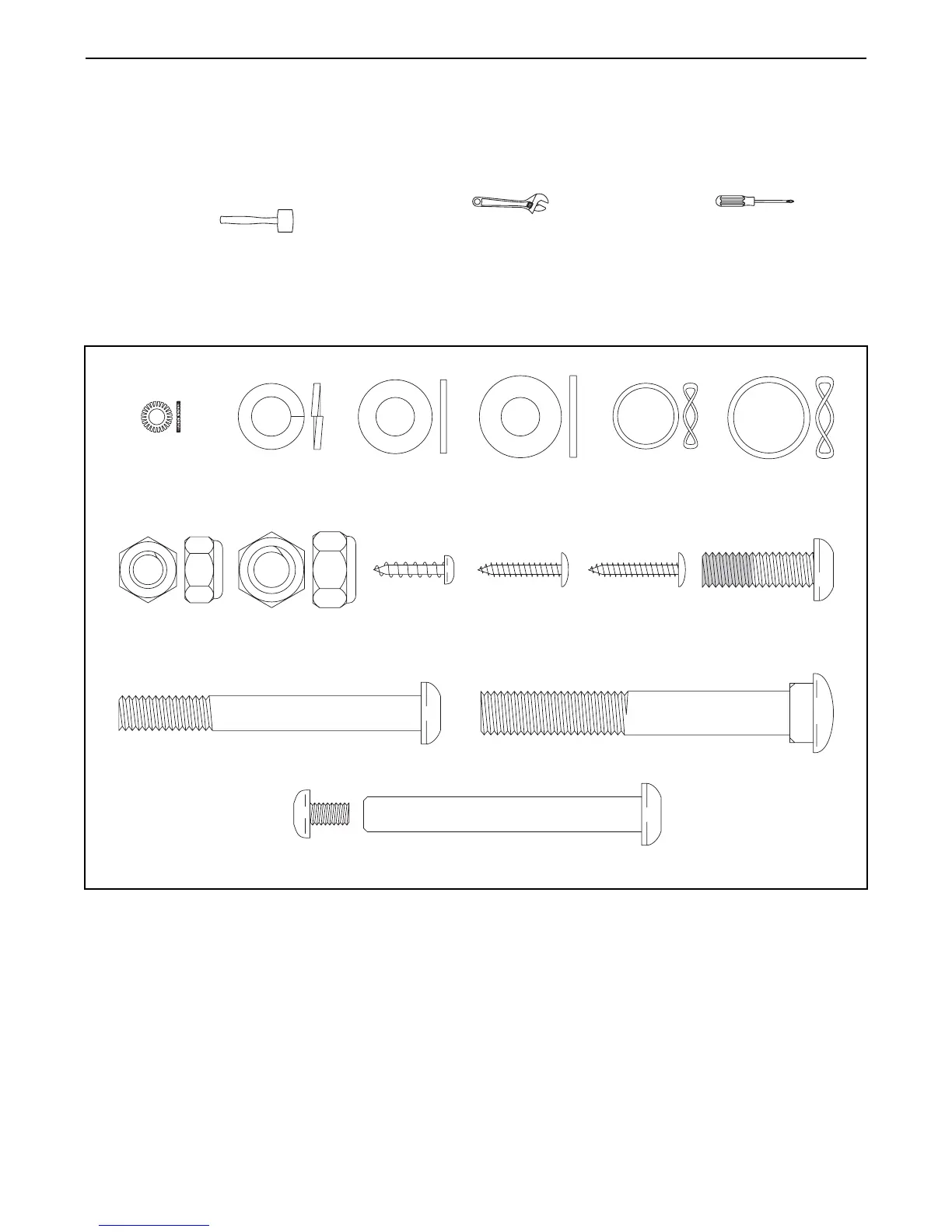

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parenthe-
ses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The
number following the parentheses is the quantity needed for assembly. Note: Some small parts may have
been preassembled. If a part is not in the parts bag, check to see if it has been preassembled.
