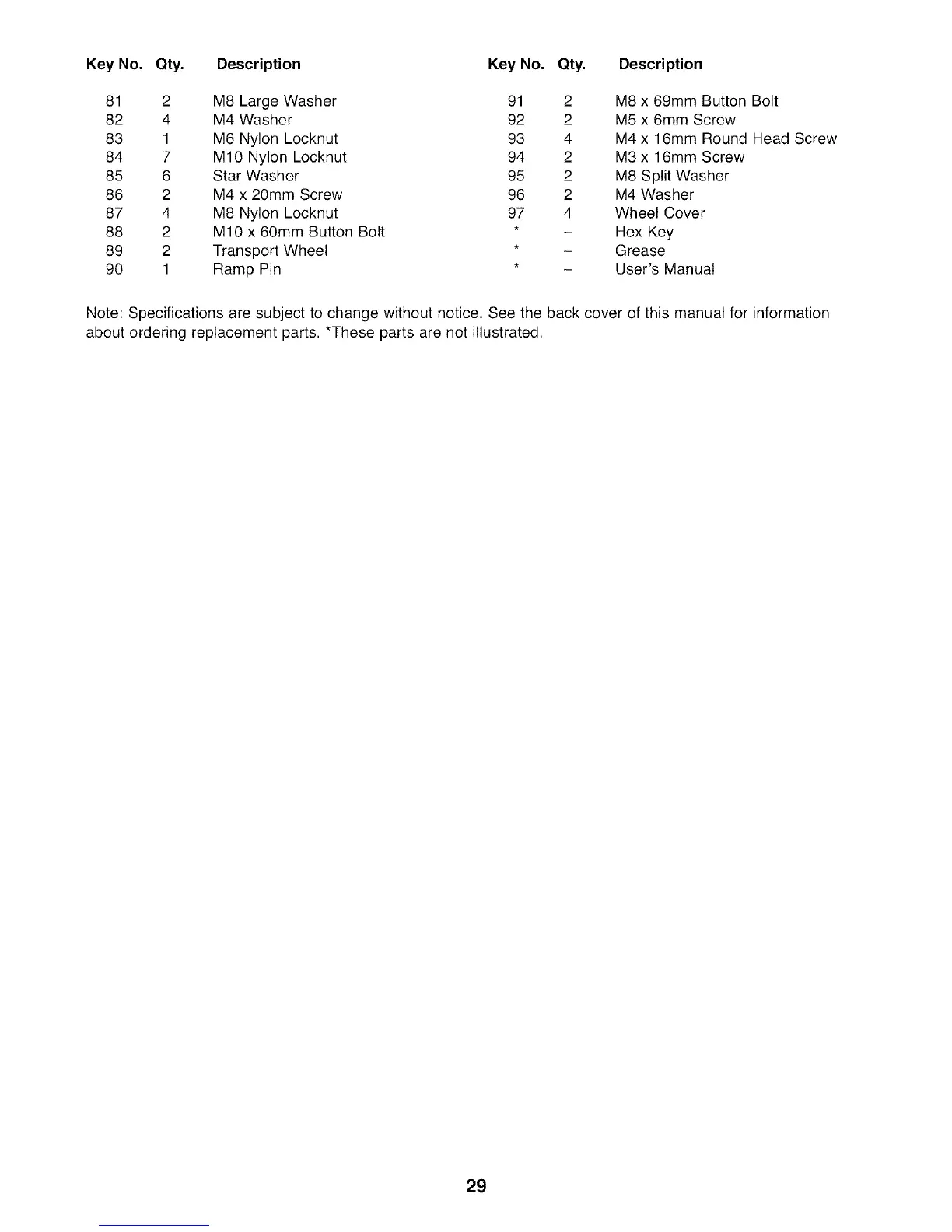

Key No, Qty. Description Key No, Qty. Description
81 2 M8 Large Washer 91 2 M8 x 69mm Button Bolt
82 4 M4 Washer 92 2 M5 x 6mm Screw
83 1 M6 Nylon Locknut 93 4 M4 x 16mm Round Head Screw
84 7 M10 Nylon Locknut 94 2 M3 x 16mm Screw
85 6 Star Washer 95 2 M8 Split Washer
86 2 M4 x 20mm Screw 96 2 M4 Washer
87 4 M8 Nylon Locknut 97 4 Wheel Cover
88 2 M10 x 60mm Button Bolt * - Hex Key
89 2 Transport Wheel * - Grease
90 1 Ramp Pin * - User's Manual
Note: Specifications are subject to change without notice. See the back cover of this manual for information
about ordering replacement parts. *These parts are not illustrated.
29
