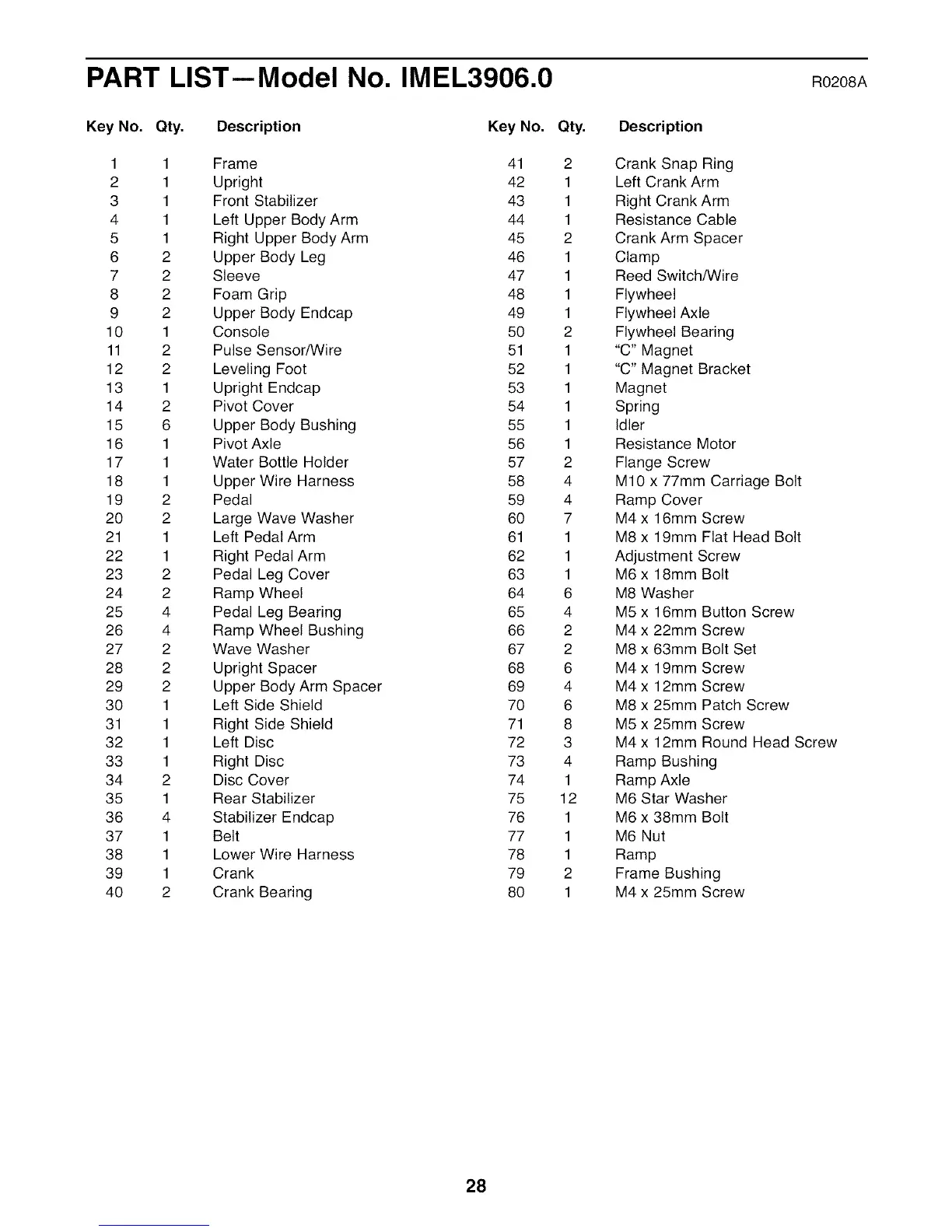

Image 9.5 - Part List

PART LIST--Model No. IMEL3906.0 Ro2o8A
Key No. Qty, Description Key No,
1 1 Frame 41
2 1 Upright 42
3 1 Front Stabilizer 43
4 1 Left Upper Body Arm 44
5 1 Right Upper Body Arm 45
6 2 Upper Body Leg 46
7 2 Sleeve 47
8 2 Foam Grip 48
9 2 Upper Body Endcap 49
10 1 Console 50
11 2 Pulse Sensor/Wire 51
12 2 Leveling Foot 52
13 1 Upright Endcap 53
14 2 Pivot Cover 54
15 6 Upper Body Bushing 55
16 1 Pivot Axle 56
17 1 Water Bottle Holder 57
18 1 Upper Wire Harness 58
19 2 Pedal 59
20 2 Large Wave Washer 60
21 1 Left Pedal Arm 61
22 1 Right Pedal Arm 62
23 2 Pedal Leg Cover 63
24 2 Ramp Wheel 64
25 4 Pedal Leg Bearing 65
26 4 Ramp Wheel Bushing 66
27 2 Wave Washer 67
28 2 Upright Spacer 68
29 2 Upper Body Arm Spacer 69
30 1 Left Side Shield 70
31 1 Right Side Shield 71
32 1 Left Disc 72
33 1 Right Disc 73
34 2 Disc Cover 74
35 1 Rear Stabilizer 75
36 4 Stabilizer Endcap 76
37 1 Belt 77
38 1 Lower Wire Harness 78
39 1 Crank 79
40 2 Crank Bearing 80
Qty. Description
2 Crank Snap Ring
1 Left Crank Arm
1 Right Crank Arm
1 Resistance Cable
2 Crank Arm Spacer
1 Clamp
1 Reed Switch/Wire
1 Flywheel
1 Flywheel Axle
2 Flywheel Bearing
1 "C" Magnet
1 "C" Magnet Bracket
1 Magnet
1 Spring
1 Idler
1 Resistance Motor
2 Flange Screw
4 M10 x 77mm Carriage Bolt
4 Ramp Cover
7 M4 x 16mm Screw
1 M8 x 19mm Flat Head Bolt
1 Adjustment Screw
1 M6 x 18mm Bolt
6 M8 Washer
4 M5 x 16mm Button Screw
2 M4 x 22mm Screw
2 M8 x 63mm Bolt Set
6 M4 x 19mm Screw
4 M4 x 12mm Screw
6 M8 x 25mm Patch Screw
8 M5 x 25mm Screw
3 M4 x 12mm Round Head Screw
4 Ramp Bushing
1 Ramp Axle
12 M6 Star Washer
1 M6 x 38mm Bolt
1 M6 Nut
1 Ramp
2 Frame Bushing
1 M4 x 25mm Screw
