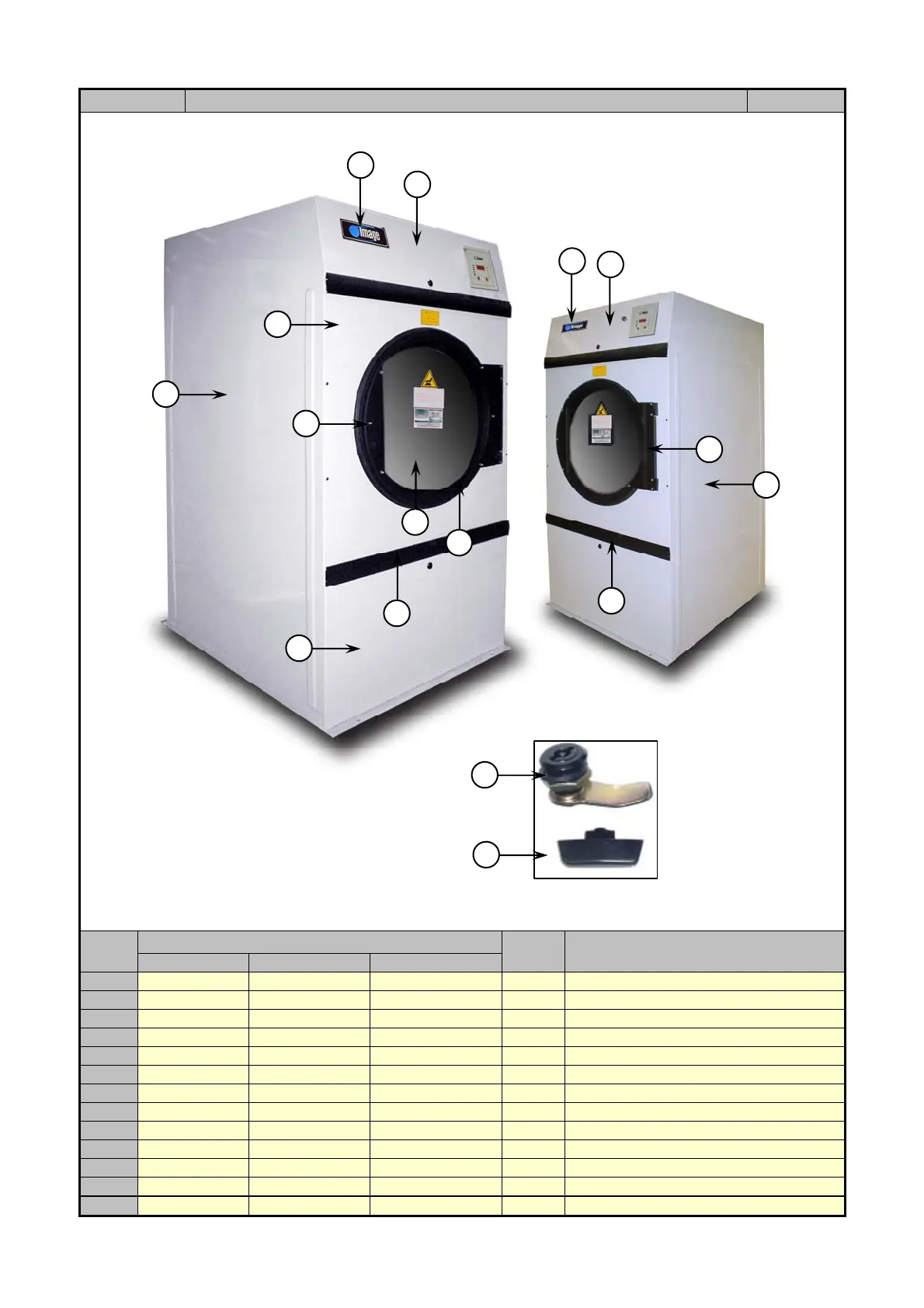

Image DE 30 - Parts List: Front Panel Assembly; Front Panel Assembly Parts List

Section 8
Parts List: Front Panel Assembly
Page 1
Item
Part No.
Qty. Description
DE30 DE 50 DE 75
1
A0-A090-059 A0-A090-059 A0-A090-059 1 Sticker
2
A2-S030-025 A2-SDE1-062 A2-SDE1-062 1 Front panel, Top (Timer Model)
3
A2-S030-002 A2-SDE1-063 A2-SDE1-063 1 Front panel, middle
4
A2-S030-003 A2-SDE1-064 A2-SDE1-064 1 Front panel, lower
5
A2-S030-007 A2-S050-007 A2-S075-007 1 Left panel assembly
6
A2-S030-008 A2-S050-008 A2-S075-008 1 Right panel assembly
7
A2-S030-038 A2-S030-038 A2-S030-038 1 Door ring include door glass
8
A2-S030-006 A2-SDE1-070 A2-SDE1-070 1
Hinge, Door mounting
9
A2-S030-004 A2-SDE1-059 A2-SDE1-059 1 Door handle
10
A0-A038-015 A0-A038-001 A0-A038-001 1 Guard, Bumper
11
A0-A003-008 A0-A003-009 A0-A003-009 1 Door glass
12
A0-A013-011 A0-A013-011 A0-A013-011 2 Master key
13
A0-A013-010 A0-A013-010 A0-A013-010 2 Key
12
13
1
1
3
4
5
6
9
7
8
10
2
2
11
10
