Image DE 30 - Parts List: Drive and Blower Motor (Single Phase); Drive and Blower Motor Parts (Single Phase)

Section 8
Parts List: Drive and Blower Motor for Single Phase
Page 2
Item
Part No.
Qty. Description
DE30 DE 50 DE 75
1
A2-S030-009 A2-S050-009 A2-S075-009 1 Exhaust duct outlet
2
A2-S030-010 A2-S050-010 A2-S075-010 1 Rear panel assembly
3
A0-E014-010 A0-E014-010 A0-E014-010 1 Micro switch
A2-SDE1-028 A2-SDE1-028 A2-SDE1-028 1
Cabinet sail switch complete shell (Gas)
4
A0-E014-010 A0-E014-010 A0-E014-010 1 Micro switch
A2-SDE1-027 A2-SDE1-027 A2-SDE1-027 1 Cabinet sail switch complete shell
5
A0-E008-091 A0-E008-091 A0-E008-091 1 Basket and blower (1Ph)
6
- - A0-E008-092 1 Basket motor (1Ph)
7
A0-M008-113 A0-M008-086 A0-M008-086 1 Motor pulley (For 50 Hz., 1Ph)
A0-M008-093 A0-M008-027 A0-M008-027 1 Motor pulley (For 60 Hz., 1Ph)
8
A2-S030-022 A2-S050-022 A2-S075-022 1 Support blower motor
9
A0-A002-214 A0-A002-214 A0-A002-214 1 Basket V-Belt (1Ph)
10
A0-A002-216 A0-A002-282 A0-A002-282 1 Motor V-Belt (1Ph.)

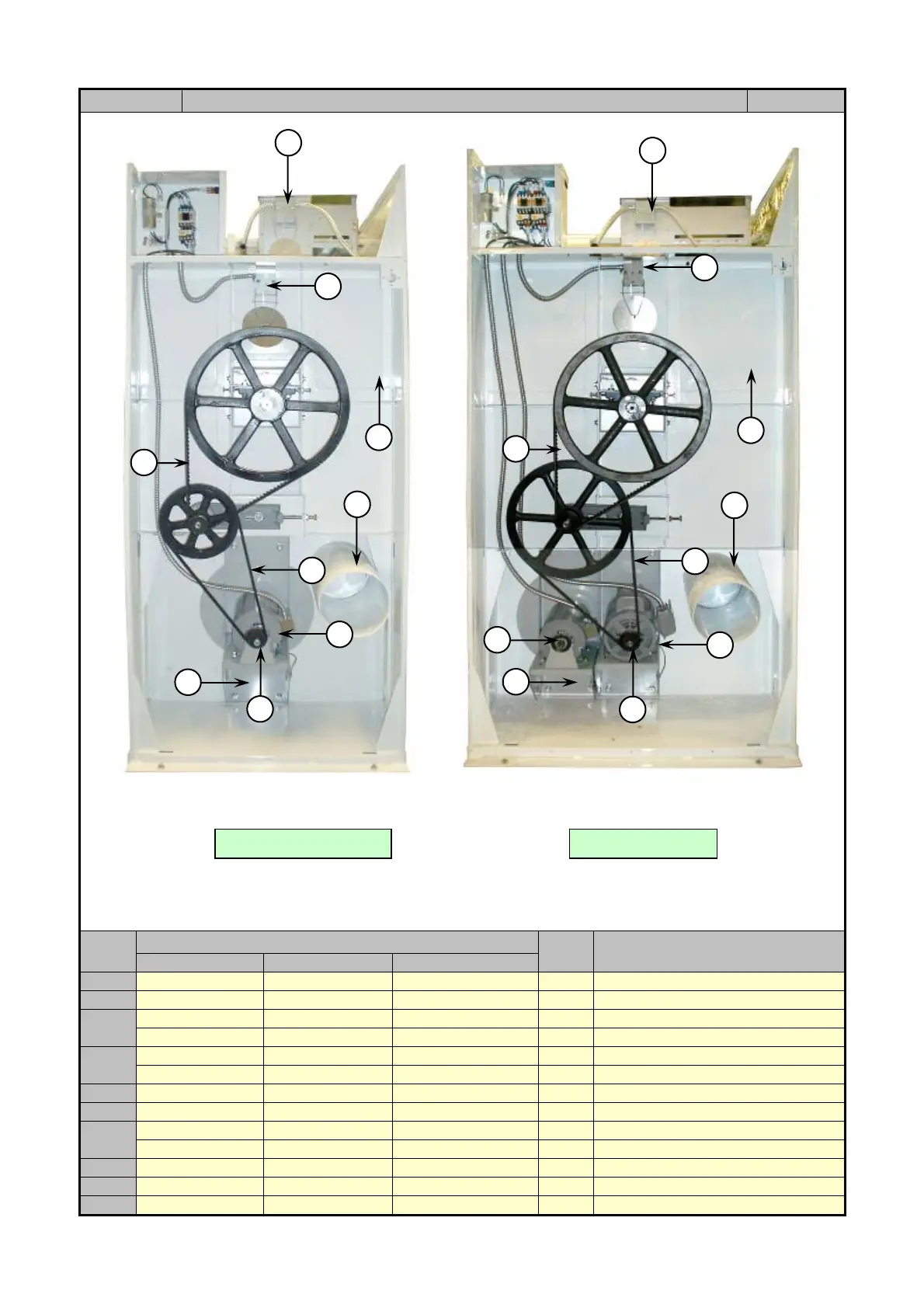

Model: DE75 lb. Model: DE30
,
50 lb.
1
2
4
3
5
6
7
8
9
10
1
2
4
3
5
7
8
10
9
