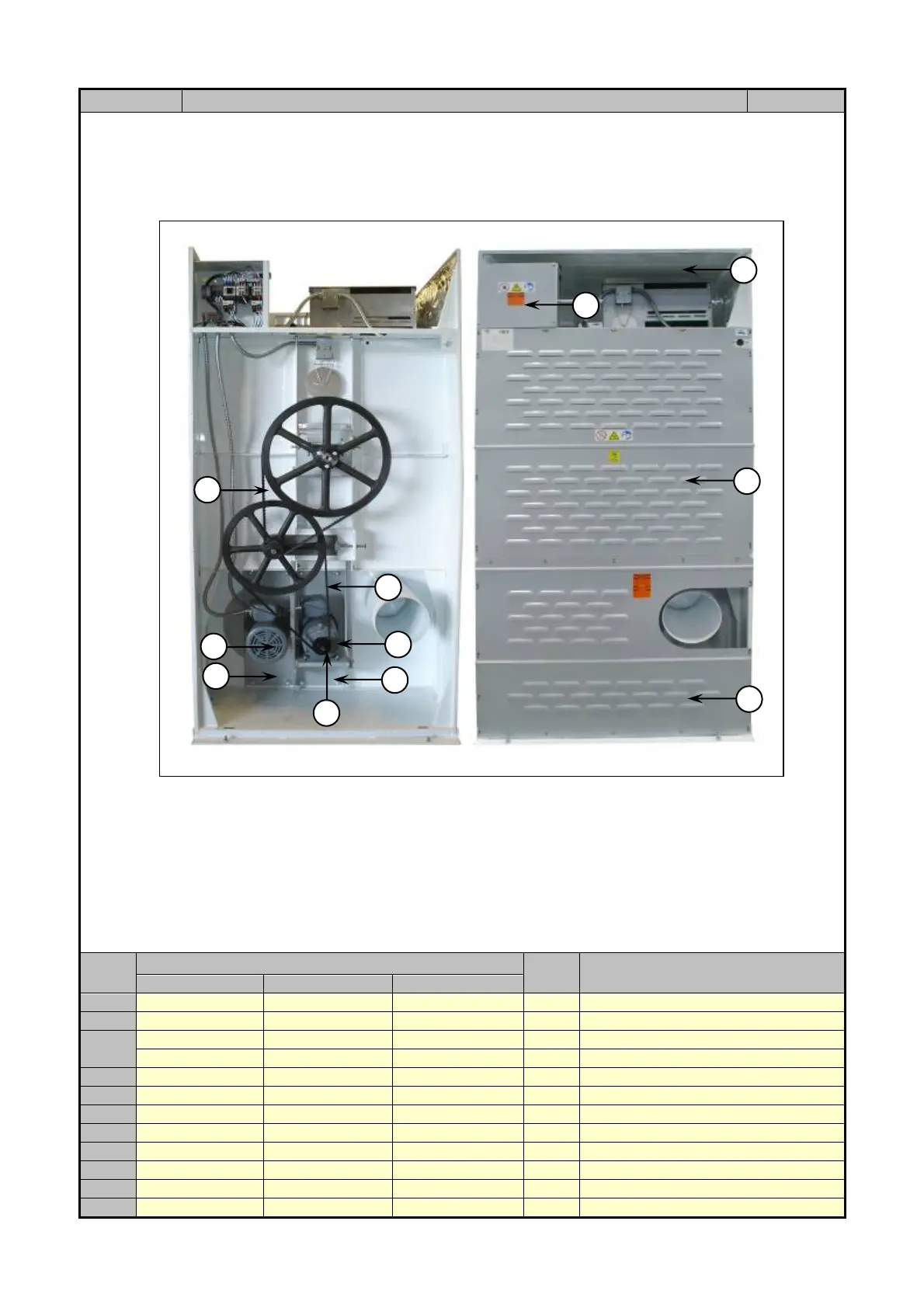

Image DE 30 - Parts List: Drive and Blower Motor (Three Phase); Drive and Blower Motor Parts (Three Phase)

Section 8
Parts List: Drive and Blower Motor for Three Phase
Page 3
Item
Part No.
Qty. Description
DE30 DE 50 DE 75
1
A0-E008-968 A0-E008-873 A0-E008-873 1 Basket motor (3Ph)
2
A0-E008-969 A0-E008-872 A0-E008-872 1 Blower motor (3Ph)
3
A0-M008-106 A0-M008-086 A0-M008-086 1 Motor pulley (For 50 Hz., 3Ph)
A0-M008-114 A0-M008-027 A0-M008-027 1 Motor pulley (For 60 Hz., 3Ph)
4
A0-A002-107 A0-A002-217 A0-A002-217 1 V-Belt – Motor (3Ph.)
5
A0-A002-214 A0-A002-214 A0-A002-214 1 V-Belt Basket (3Ph)
6
A2-S030-028 A2-SDE1-022 A2-SDE1-022 1 Basket motor mounting plate, for 3Ph
7
A2-S030-029 A2-SDE1-022 A2-SDE1-022 1 Blower motor mounting plate, for 3Ph
8
A2-S030-011 A2-S050-011 A2-S075-011 1 Electrical box
9
A2-S030-013 A2-S050-013 A2-S075-013 1 Cover, Top
10
A2-S030-026-01
A2-SDE1-041-01 A2-SDE1-041-01
1 Back guard upper
11
A2-S030-026-02
A2-SDE1-041-02 A2-SDE1-041-02
1 Back guard lower
