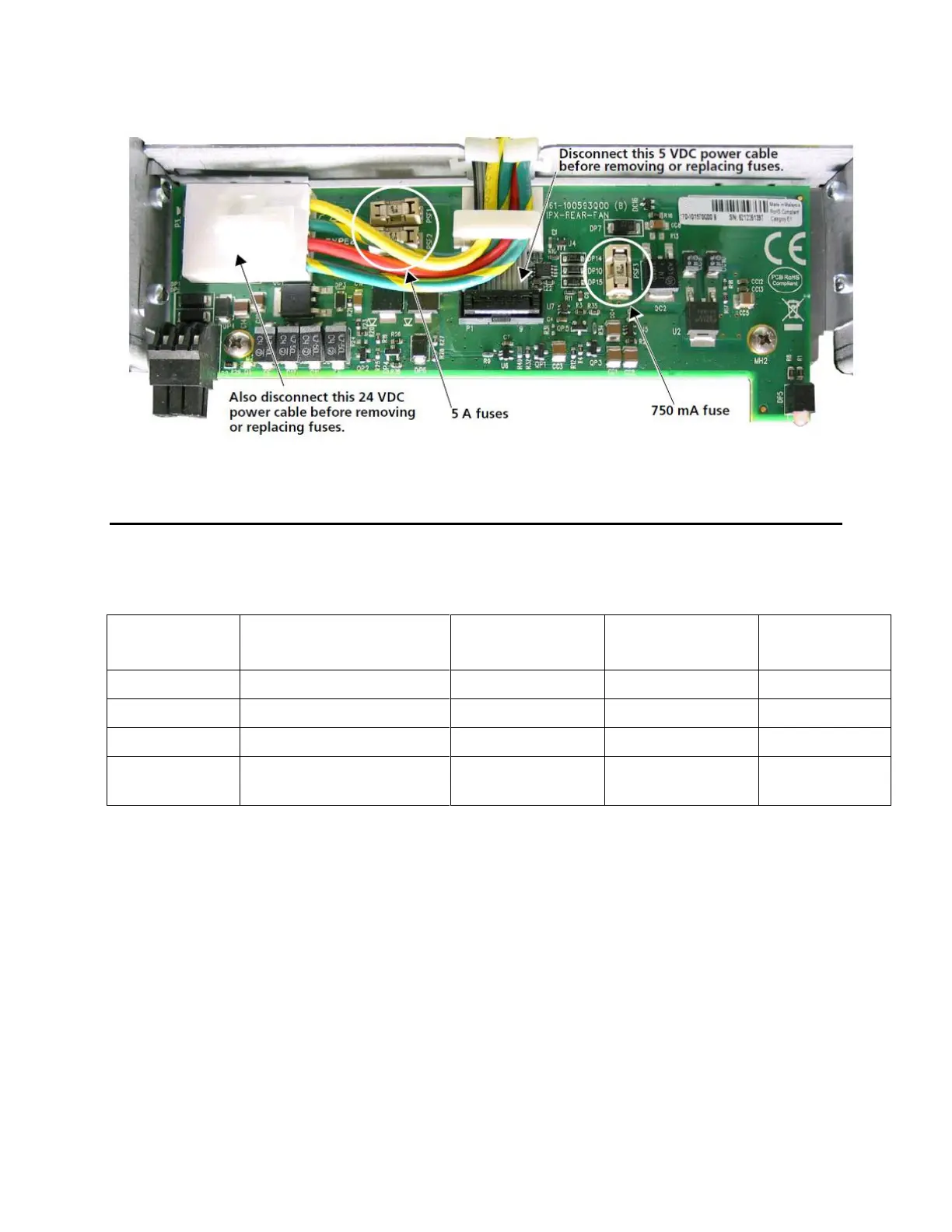

Figure 144: Rear Fan Fuses
Power Consumption
Table 129: FANS Power Consumption
PX-FRONT-FAN (15 RU)
PX-FRONT-FAN-TOP (28 RU)
PX-FRONT-FAN-BOT
(28 RU)
PX-REAR-FAN-
ADPTR
PX-REAR-FAN
(15/28 RU)
24V Power Rail
55.2W
55.2W
0
67W
5V Power Rail
0.82W
0.82W
0.15W
0
Total per Module
56.02W
56.02W
0.15W
67W
(Note: Includes
172 mm fan)

Imagine Platinum IP3 Specifications

General

Brand	Imagine
Model	Platinum IP3
Category	Network Router
Language	English
