Conto D4-Pd

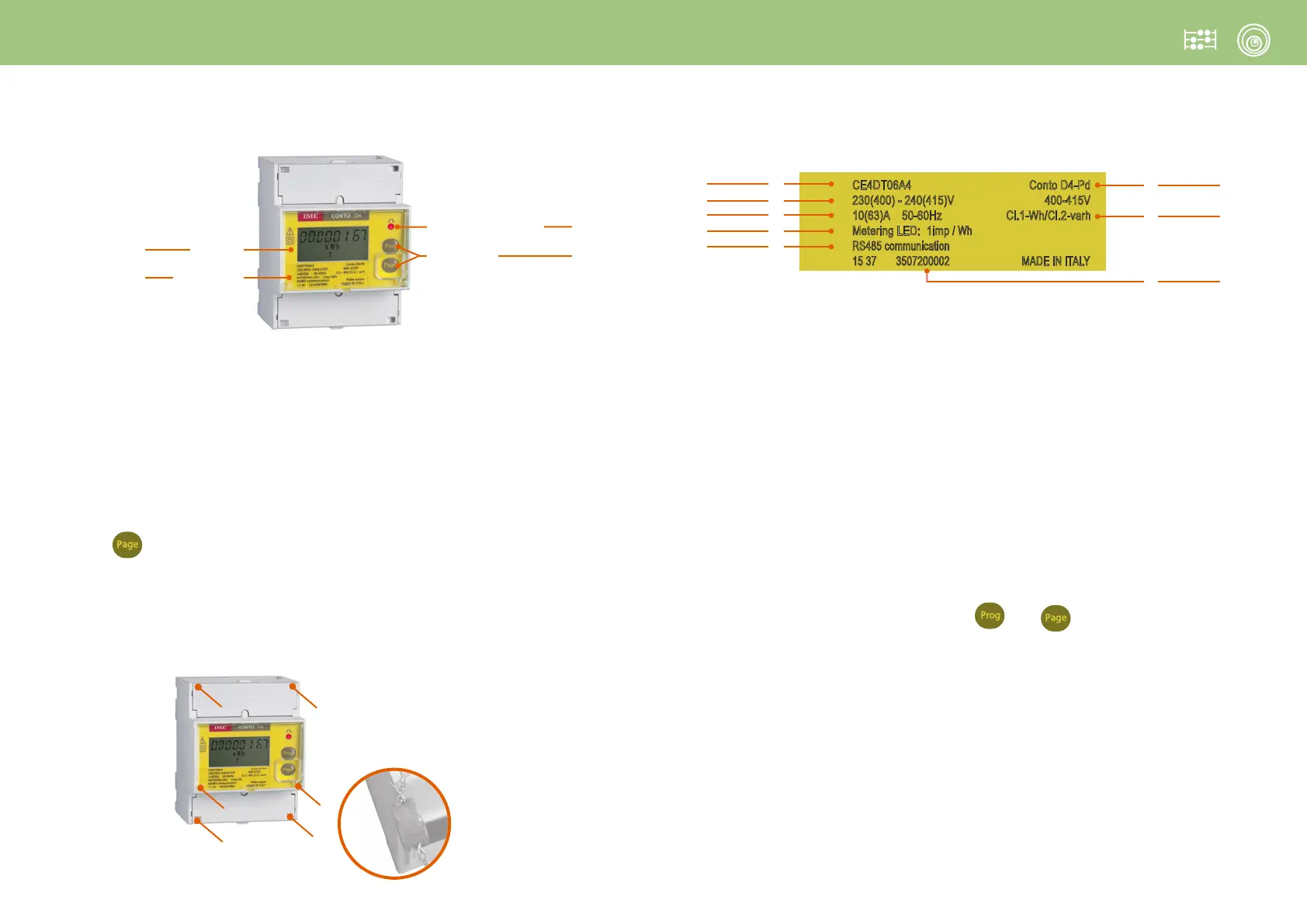

Data label
It shows the KWH meter specifications.
1 Product code
2 Model
3 Input voltage
4 Input current – Frequency
5 Metrological LED pulse weight
6 Serial number (secondary address default)
7 M-Bus communication
8 Count accuracy classes for active / reactive energy
Programming
Access to programming is protected by an access numeric Password.
Programming is carried out acting on Prog and Page front keys
1 Access password
2 Input configuration
3 Integration time for average power calculation
4 M-Bus communication
5 Password confirmation or change to enter the programming
Front Frame Description
Display
LCD, 8 digits, it displays measurements
Metrological LED
The blinking frequency is proportional to the counted active energy
Keyboard
Used to program the KWH-meter. Once the programming is over, it is possible to seal the
front frame and prevent possible tampering.
Page key is accessible to scroll the display pages.
Housing and terminals sealing points
Display
Data label
Metrological LED
Keyboard
CE4DT06A4 Conto D4-Pd
230(400) - 240(415)V 400-415V
10(63)A 50-60Hz Cl.1-Wh/Cl.2-varh
Metering LED: 1imp
/ Wh
RS485 communication
15 37 3507200002 MADE IN ITALY
1
3
4
5
7
6
8
2
To Next Page
