IME Conto D4 -Pd - Programmable Parameters; Code; M-Bus Communication; CodE 1000

06/16 10783381 WEB E cod.CE4DT06AM
5
Conto D4-Pd
Programmable Parameters

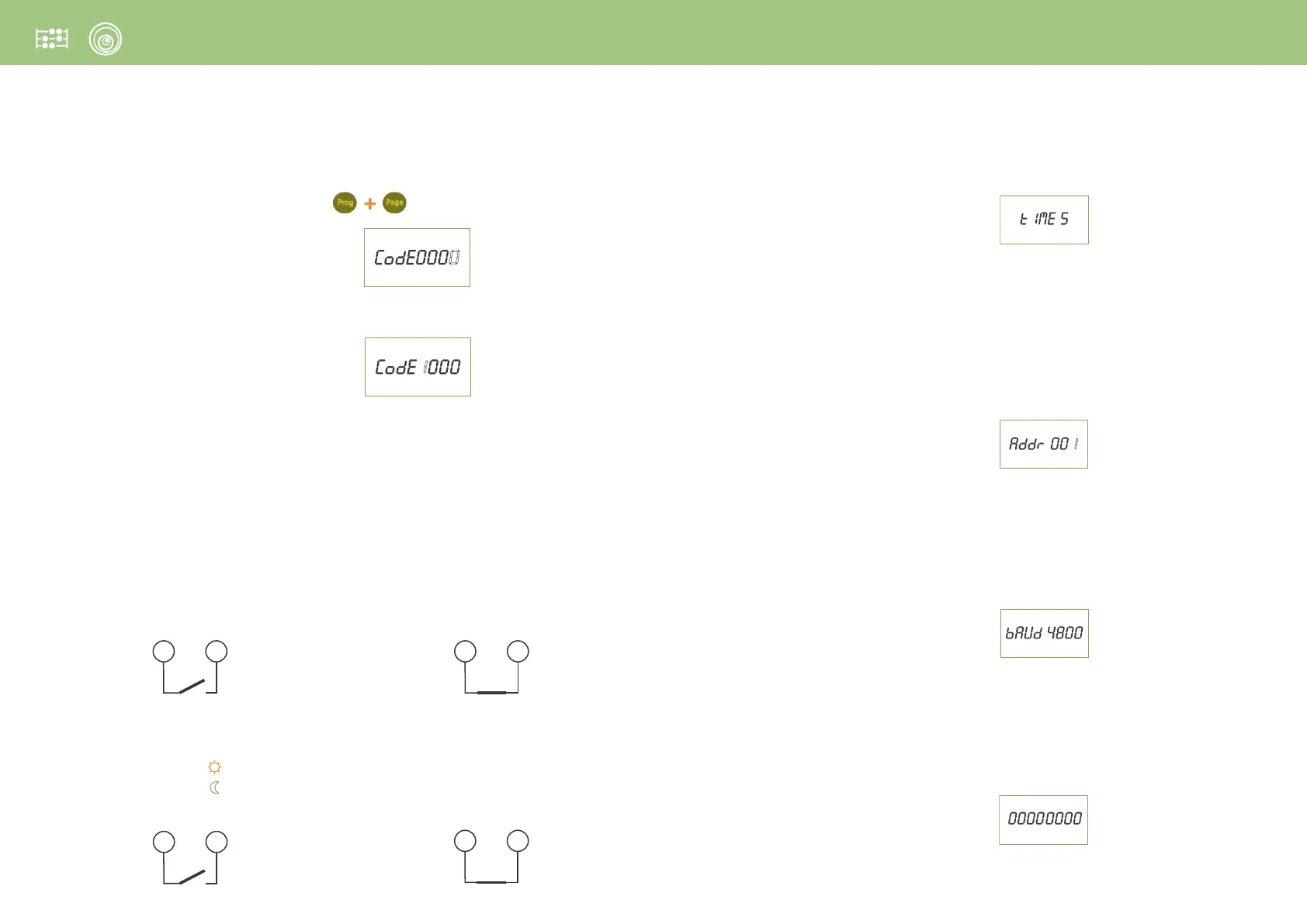

1 CodE
Access password
Keep simultaneously pressed the 2 keys until you display page
Load Password 1000 and confirm

Page moves the cursor
Prog increases/decreases the loaded value
Page + Prog confirms
2 ModE
Energy count configuration
Mode ASY Partial energy count always active
Total energy (display T)
Total energy (display P)
Mode SYn
Partial energy count activated by the closing of the external contact (C - D terminals)
Total energy (display T)
Total energy (display P)
Partial energy count no active Partial energy count active
Mode trf Energy count with double tariff. Tariff switching with closing of the external
contact (C - D terminals)
Energy tariff 1 (display )
Energy tariff 2 (display )
Energy Count tariff 1 Energy Count tariff 2
3 tiME
Integration time for average power calculation
Selectable values: 5 – 8 – 10 – 15 – 20 – 30 – 60 minutes
Prog increases the loaded value
Page decreases the loaded value
Page + Prog confirms
4 M-Bus Communication
4.1 Addr
Address number
Selectable values: 1...250
Page moves the cursor
Prog increases the loaded value
Page + Prog confirms
4.2 bAUd
Transmission speed
Selectable values: 300 - 600 - 1200 - 2400 - 4800 – 9600 bit/s
Prog increases the loaded value
Page decreases the loaded value
Page + Prog confirms
4.3 00000000
Secondary Address
Selectable values: 0...99999999
Page moves the cursor
Prog increases the loaded value
Page + Prog confirms
C D
C D
C D
C D
