Nemo D4-e
07/17 10783591 WEB E cod.MFD4E06
8

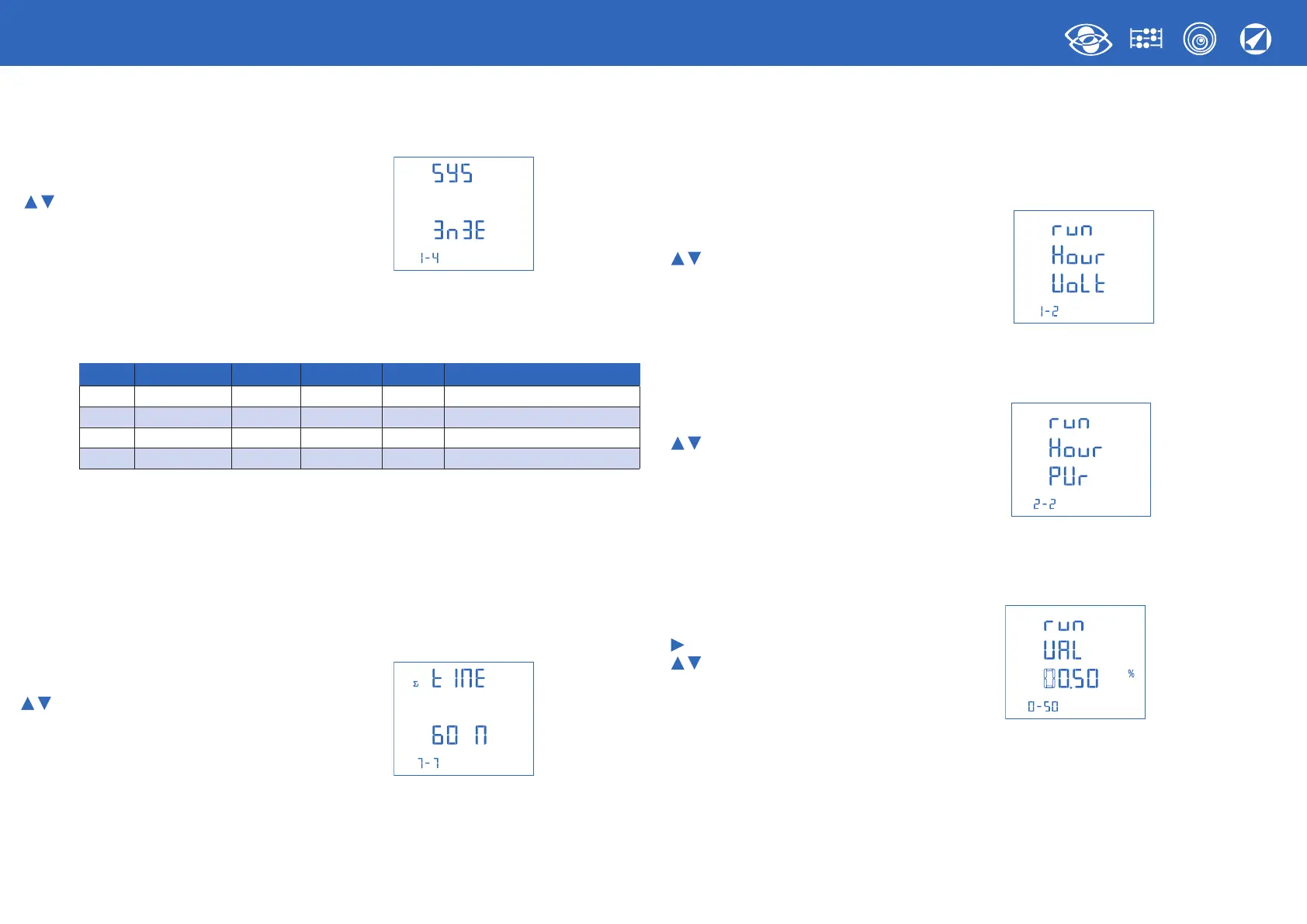

1.2 Connection
select the connection
OK to confirm
Select the type of connection required, scrupulously respecting the connected wiring
diagram.
The connections that can be selected are:
Symbol Line Load n°external CT Diagram Connection
1N1E Single-phase - 1 S 1000/452
3-2E 3-phase 3 wires Unbalanced 2 S 1000/453 Aron L1 - L3
3-3E 3-phase 3 wires Unbalanced 3 S 1000/454
3N3E 3-phase 4 wires Unbalanced 3 S 1000/455
1.3 Average power and current integration time
Selectable integration time: 5, 8, 10, 15, 20, 30, 60minutes
The selected time is valid for both the current and the average power
select the time value
OK to confirm
1.4 Hour-meter counting start
Select the magnitude which starts the hour-meter counting: Voltage or Power
1.4a Voltage counting start
Voltage: counting start with > 20V phase voltage
select voltage or power
OK to confirm
1.4b Power counting start
select voltage or power
OK to confirm
Power: total active power, programmable value 0.5 … 50%Pn (rated power)
move the cursor
increase/decrease the set value
OK to confirm
