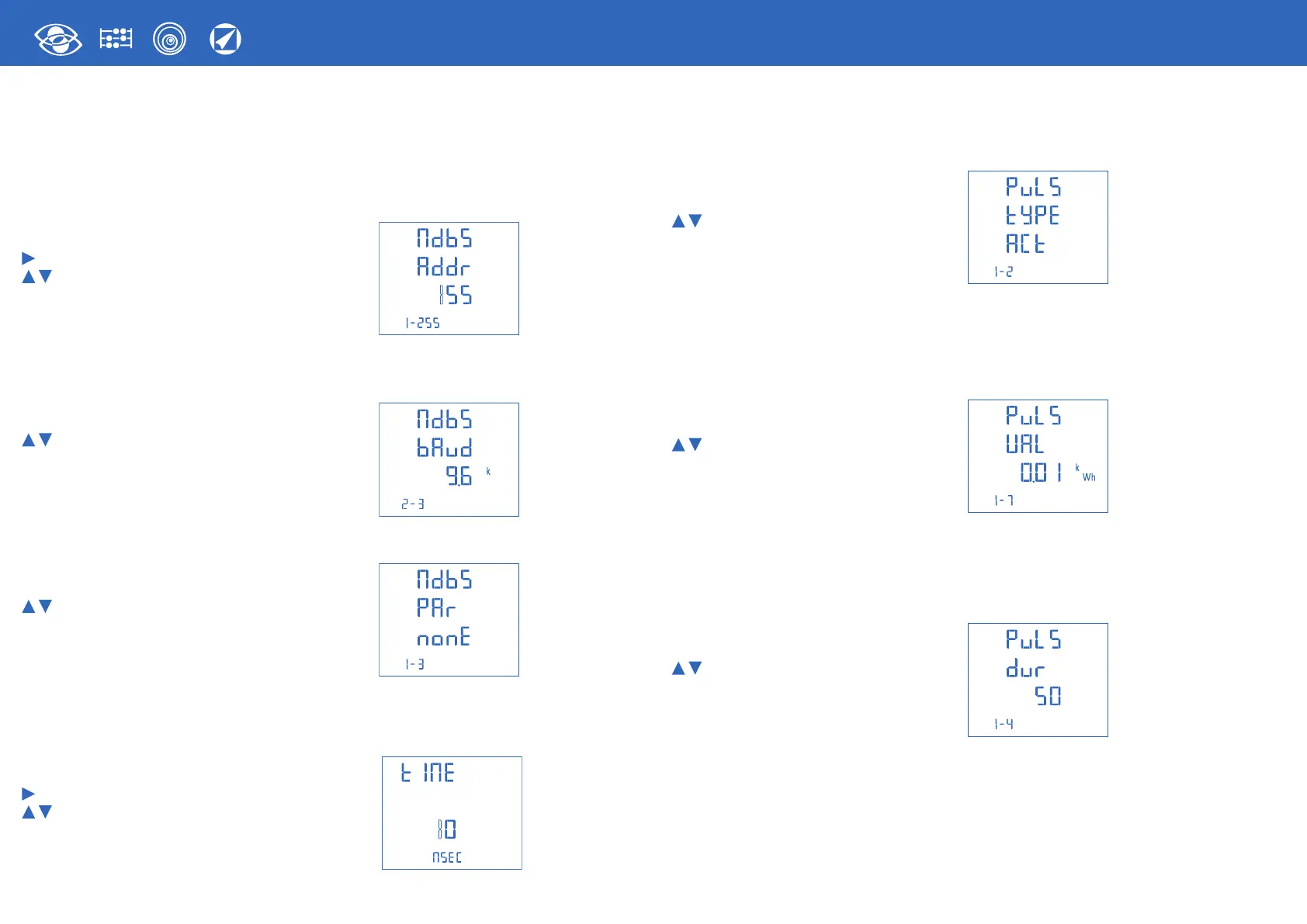

1.5 RTU / TCP ModBus RS485 communication
Depending on the model, the instrument may not have communication or may have
RS485 ModBus RTU / TCP communication.
N° of address: 1...255
move the cursor
increase/decrease the set value
OK to confirm
Transmission speed: 4800 – 9600 – 19200 bit/s
select speed
OK to confirm
Parity bit: none – even – odd
parity selection
OK to confirm
Waiting time before the answer: 3...99ms
move the cursor
increase/decrease the set value
OK to confirm
1.6 Energy pulses
Associable Measurement: active or reactive energy
select active/reactive
OK to confirm
Pulse weight: 1imp/10Wh(varh) – 100Wh(varh) – 1kWh(kvarh) - 10kWh(kvarh) -
100kWh(kvarh) – 1MWh(Mvarh) - 10MWh(Mvarh)
select pulse weight
OK to confirm
Pulse duration: 50 – 100 – 200 – 300ms
select pulse duration
OK to confirm
