MINUTEMAN
The MINUTEMAN has a noise emission level of 65 decibels. It's very quiet, operate it anywhere.
NOISE LEVEL

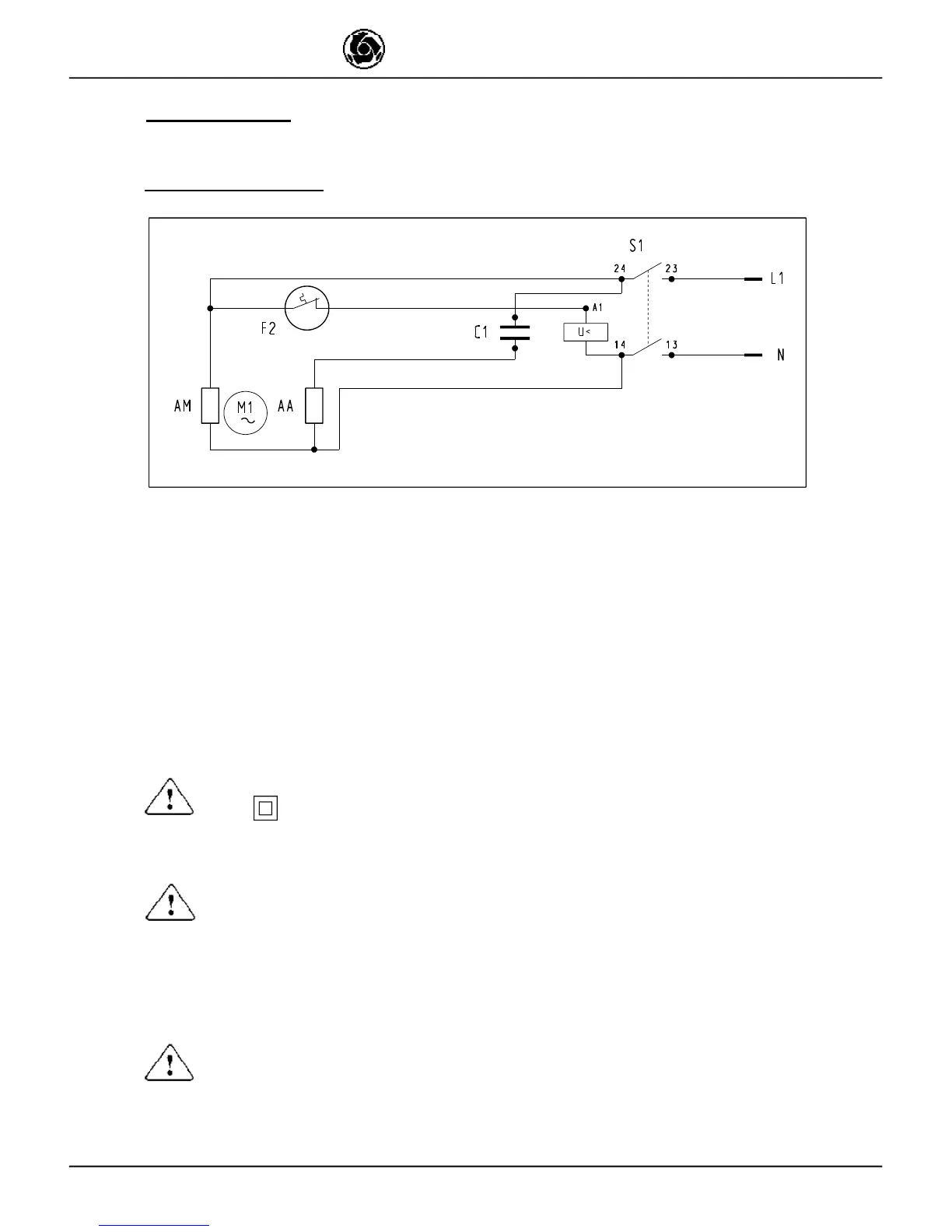

WIRING DIAGRAM
N
L1
S1
F2
C1
M1
AM
AA
Neutral wire
Phase wire
Stop and start button
Thermal protection for electric motor
Capacitor
Single phase motor
Motor winding
Motor winding
WARNING
Any type of electrical repair or trouble-shooting should only be performed
by an IMER dealer or a properly qualified electrical repair shop. For
assistance with any electrical difficulty, IMER U.S.A. is always directly
available @ 800.275.5463.
The MINUTEMAN motor is manufactured as a class II Double Insulation
type ( ), it does not require a ground wire.
CAUTION: when carrying out repairs, class II Double Insulation protection
will only be maintained if original insulating materials are used and provided
the specifications and insulating materials remain unmodified.
