IMER U.S.A. Inc.
9
MINUTEMAN

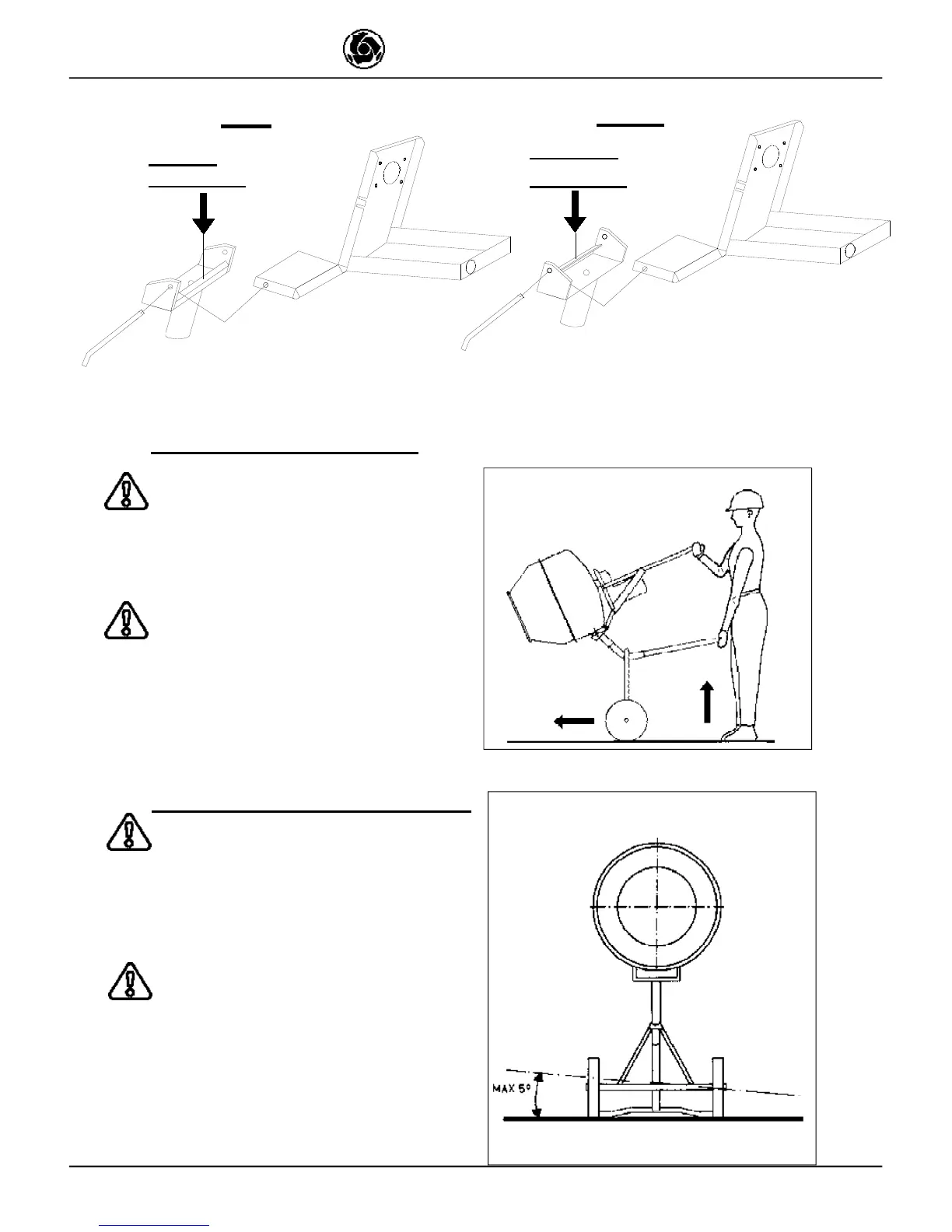

Drawing 6
Drawing 4
WRONG ASSEMBLY POSITION FOR
THE SWIVEL BRACKET
CORRECT ASSEMBLY POSITION FOR
THE SWIVEL BRACKET
CORRECT
DIRECTION
CAUTION - SET-UP IMPORTANT
Position the machine on a level surface
as illustrated in the drawing 6
(maximun allowable slope is 5 degrees,
as shown in drawing 6).
To complete the mixer set-up, before
loading the drum , make sure the mixer
can properly discharge into a wheel-
barrow.
MOVING THE MINUTEMAN
WARNING
Always disconnect the power cord before
moving the mixer.
To roll the machine, hold the support leg and dump
handle and move as shown in Drawing 4.
WARNING
Do not attempt to move the mixer when
there is material in the drum, it must be
empty.
YES
NO
WRONG
DIRECTION
