IMER U.S.A. Inc.
8
MINUTEMAN

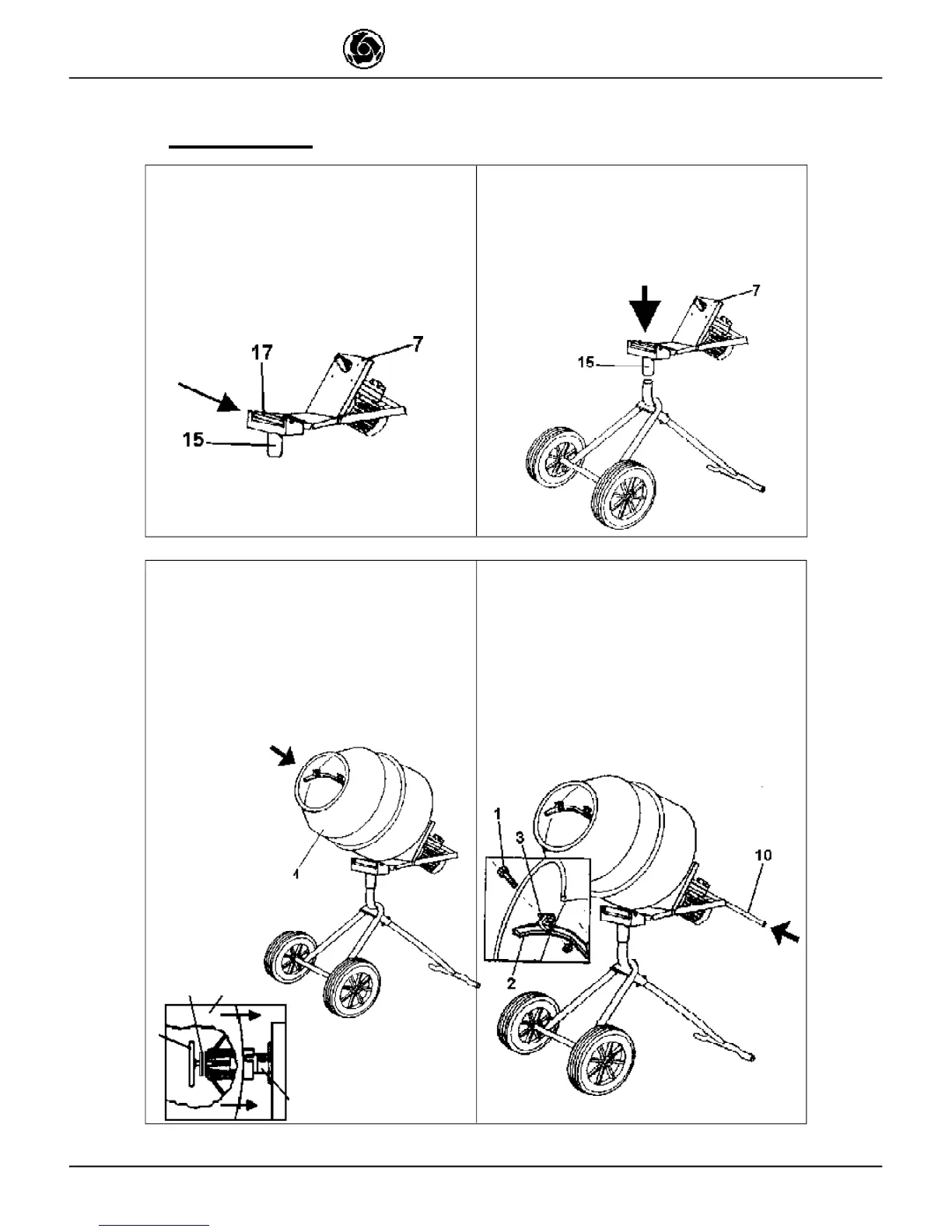

Fit the gear-box frame and motor assembly (#
7 Drawing 1) into the swivel bracket (# 15
Drawing 1) with the anchor pin, (# 17 Drawing
1) slide the cotter pin through the anchor pin
hole (# 16 Drawing 1).
3
4
5 6
Mount the mixing drum (# 4 Drawing 1) onto
the gear-box shaft (# 29 Drawing 2) by aligning
the guide notch with the locating pin on the gear
shaft.Secure the drum to the gear-box shaft with
the T-handle bolt(# 5 Drawing 1) and washer (#
6 Drawing 1) provided in the assembly kit. Once
the T-bolt is tightened as much as possible by
hand, give it a whack or two with a hammer: no
more, no less.
ASSEMBLY
Secure the mixing blades (# 2 Drawing 1) to
the inner drum with the screws (# 1 Drawing 1)
and nuts (# 3 Drawing 1) provided in the assembly
kit.Assembly with the screws heads on the
outer drum.
Finally, insert tilting handle (# 10 Drawing 1) in
the handle mounting tube and lock using the
cotter pin provided in the assembly kit.
Slide the swivel bracket (# 15 Drawing 1) onto
the main frame upright. The gear-box and motor
assembly (# 7 Drawing 1) is mounted into this
swivel bracket.
5
6
29
DRUM
DRIVE
SHAFT
