SYNTESI 140 - 160 - 190 - 250 - 300 - 350 EL
2
7
11
10
15
9
1
12
13
4
3
5 8
6
2
14

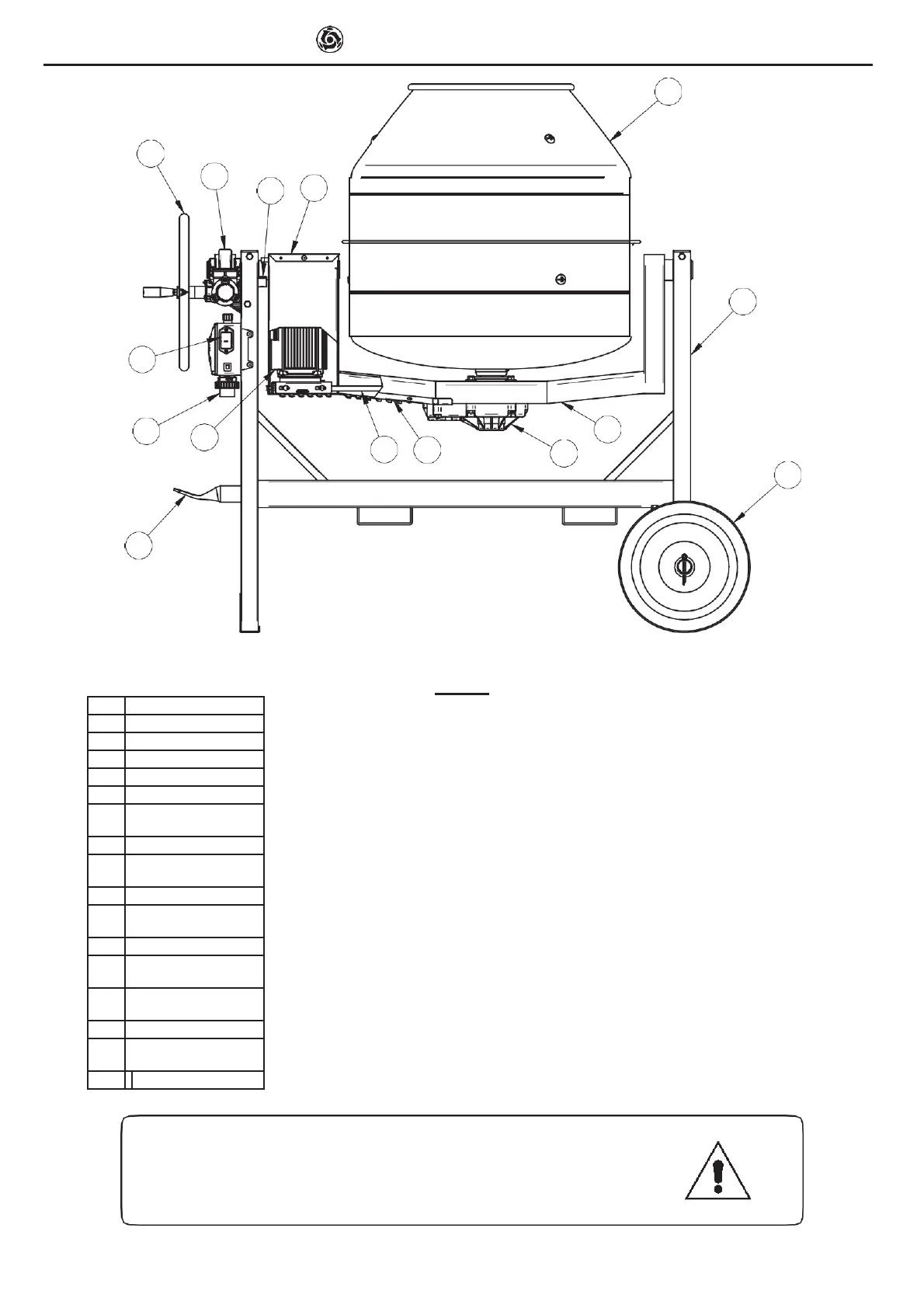

FIG.1
POS.
GB
1
Frame
2
Wheel
3
Arm
4
Motor
5
Belt
6
Bowl rotation reduction
gear
7
Tank
8
Drive belt guard
9
Arm closure
10
Bowl tipping reduction
gear
11
Handwheel
12
Start and stop switch
13
Electrical connection
socket
14
Tow bar
15
Tipper stop
