a) Loosen the two nuts blocking the
return pulley.
b) Loosen the register regulating the
double pulley.
c) Remove the transmission chain which
connects the fan motor with the
double pulley.
d) If still not made, install the pulley on
the motor axle and slightly tighten with
the suitable dowel.
e) If still not made, install the motor on its
support using the nuts and the bolts
supplied. Tightness is not definitive,
the position needs to be corrected
later.
f) Install the motor support group on the
dryer structure. It must be installed
below on the left where the 4 bolts are
already welded (NOTE: for machine
with serial number higher than
E201402101, skip to chapter 5.A).
g) Use the A48 belt to connect the
reversing motor to the pulley.
h) Lower the motor support group to
tension the A48 belt and to find the
correct double pulley working position.
i) Tighten the two pulley fixing bolts.
j) Tighten the four motor support group
fixing bolts.
k) Remove the A48 belt.
l) Using a straight one meter long iron
bar check the correct motor pulley
vertical axe.
m) To adjust the pulley, move it on the
shaft or center the motor using the
four slotted holes on the support.
n) The motor pulley can be moved to
make light corrections. In this case the
dowel must be later definitively locked

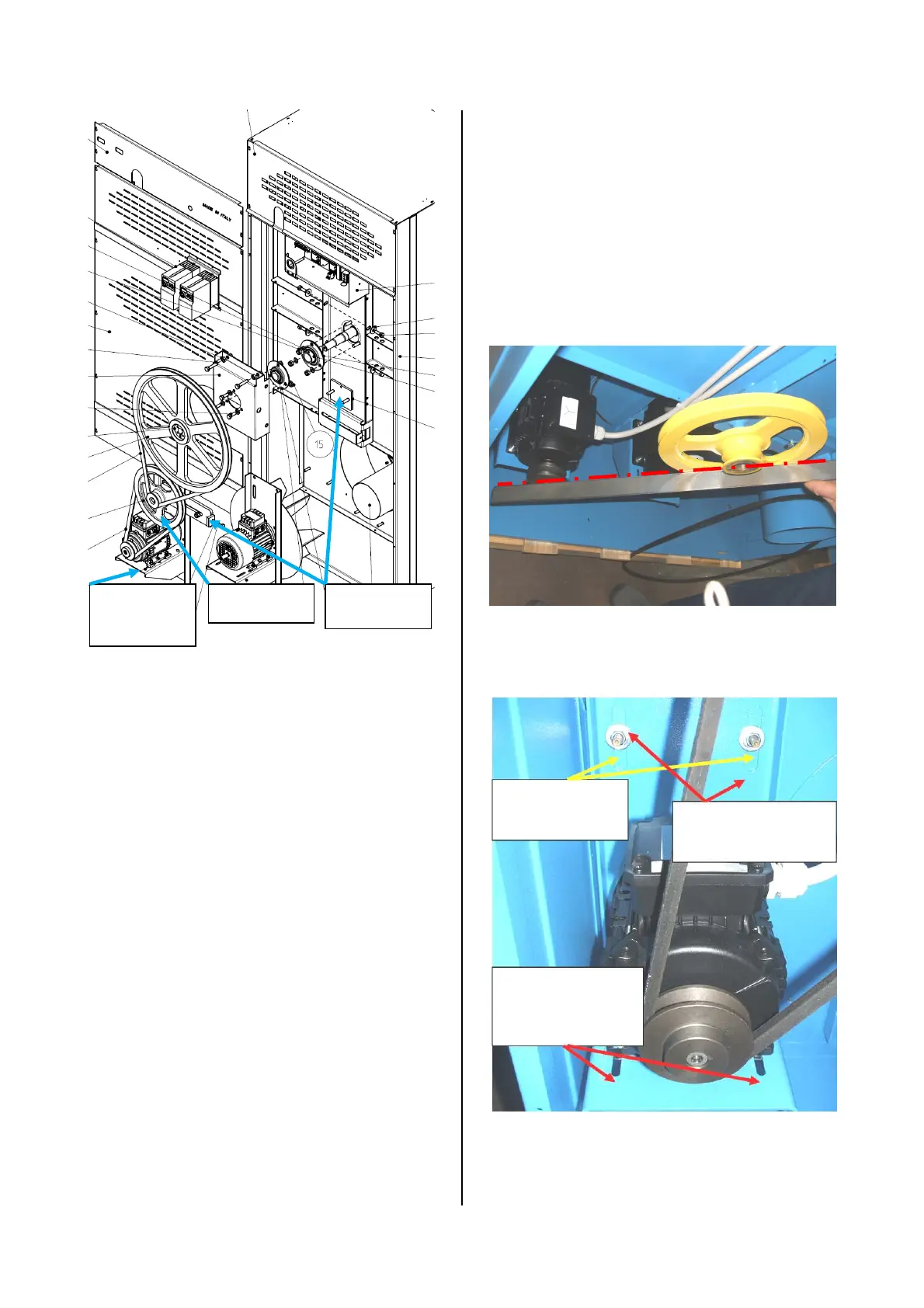

PULLEY
MOTOR
SUPPORT
GROUP
PULLEY
REGISTER
BOLTS WELDED
ON THE
TRUCTURE
SLOTTED HOLES
FOR MOTOR BEL
SLOTTED HOLES
FOR MOTOR
HORIZONTAL
MOVEMENT
