M880 ERROR CODES V.00 – ENGLISH
M880 CODICI DI ERRORE EN V.00 DP184 4
1. DESCRIPTION OF THE ERROR CODES
Tables in paragraph §1.2 and paragraph §1.3 shows the error codes indicated by the LEDs of the
M880 receivers and transmitters units when the system is in fault.
The table shows:
HEX Code: hexadecimal (HEX) code that is displayed on the Receiver unit LEDs and read
by PC through the option tool PI/MPI TOOL;
ZIP Code: six-base code, which is displayed on the Transmitter unit LEDs;
Description and Information: provides an error description and any action to be taken;
1.1 READING OF ERRORS
To read the error code reported by the receiver unit and the transmitter unit, it is necessary to pay
attention to the following LEDs in the remote control system.

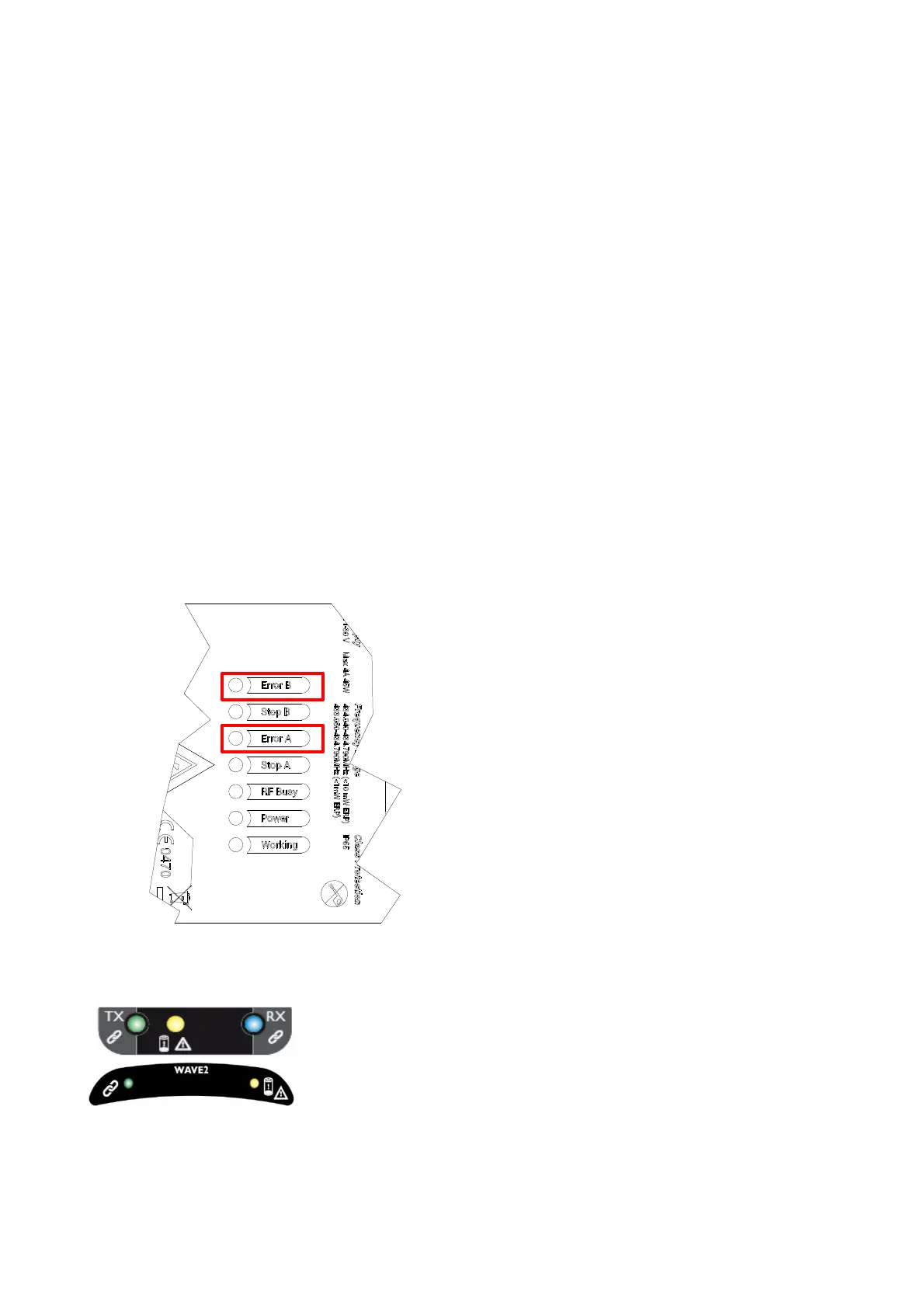

LED Error A and LED Error B on the receiver unit:
Yellow LED and Green LED on the transmitter unit:
