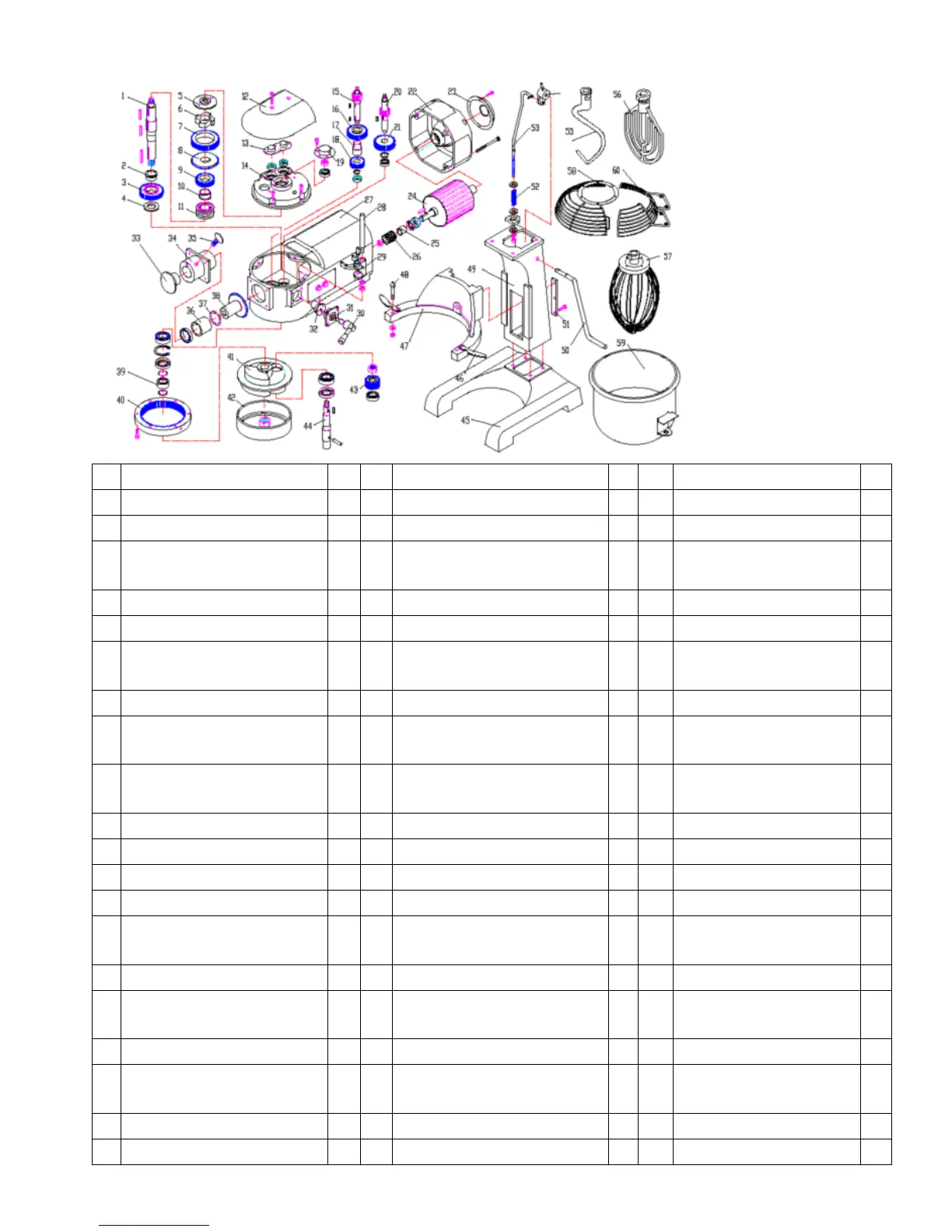

iMettos B10 - Page 14

13
Model：B20
No.
Name
Qty.
No.
Name
Qty.
No.
Name
Qty.
1
Main shaft(principle axis)
1
21
Worm gear(worm wheel Z=29)
1
41
Mixing base(whip seat)
1
2
Shaft hose(axis cover)
1
22
Back cover base(back cover)
1
42
Oil leaking pan(oil receiver)
1
3
Meshing gear(joint gearZ=38)
1
23
Back cover(back cover plate)
1
43
epicyclic gear(planet gear
Z=19)
1
4
Main shaft washer(gasket)
1
24
Motor rotor(rotor module)
1
44
Mixing shaft(whip shaft)
1
5
Gear pusher(press cover)
1
25
Worm shaft bushing(worm bush)
1
45
base
1
6
Planetary cluster gear(clutch)
1
26
Worm shaft(worm)
1
46
Bowl pusher(bowl press
plank)
2
7
Upper main shaft gear(gearZ47)
1
27
body(box body)
1
47
Bowl support(slide rack)
1
8
Bevel gear(big cone gearZ=46)
1
28
Dial fork axil
1
48
Bowl fix level(bowl standing
pin)
2
9
Pinion mesh gear(small joint
gear)
1
29
fork(dial fork)
1
49
pole(exist pole)
1
10
Axel sleeve(axis cover)
1
30
Shift handle
1
50
Hand wheel(handle)
1
11
jointer(Zygosperm)
1
31
Shift handle base(handle seat)
1
51
pedestal(press plank)
2
12
Top cover
1
32
Electric sleeve( Electricity cover)
1
52
Link bar spring(spring)
1
13
Gear pusher(cover)
1
33
Front cover
1
53
Link bar(connection haulm)
1
14
Case cover(bearing seat cover)
1
34
Grinder Head bracket(twist tie-in
seat)
1
54
Link block(link haulm)
1
15
Reduction shaft(gear shaftZ=15)
1
35
Lock pin(lock bolt)
1
55
Mixing hook
1
16
Reduction shaft upper gear(gear
Z=33)
1
36
Ball bearing(roll pin bearing)
1
56
Mixing whip
1
17
Axel sleeve(bush)
1
37
Adjusting washer(adjust gasket)
1
57
Egg beater
1
18
Reduction shaft lower
gear(gearZ=23)
1
38
Pinion level(small cone gear Z=36)
1
58
Flexible casing
1
19
Main shaft pusher(cover)
1
39
Seal hose(airproof cover)
1
59
bowl
1
20
Main shaft(gear shaft Z=17)
1
40
Ring gear(annular gear Z=67)
1
60
Fixed casing
2
