Model Reset Relay Contact Output Measurement Range Frequency Range
2396245 Manual external reset button
One - DPDT form “C”
15 amp at 120 VAC
Inertial 1-7 g pk
0-68.7 m/s
2
pk
adjustable
0 to 6000 cpm
0-100 Hz
2442494
Manual external reset button and
24 VDC remote reset solenoid
2442495
Manual external reset button and
120 VAC 60 Hz remote reset solenoid
2442496
Manual external reset button and
240 VAC 50 Hz remote reset solenoid
Model Startup Delay Trip indication Enclosure type Conduit fitting Electrical Certification
2396245 No
External
red indicator
NEMA 4X / IP66
epoxy painted
aluminum
One - 3/4 inch NPT
threaded female
connection
2442494
Timer required in
customer’s start
circuit
2442495
2442496
Specifications

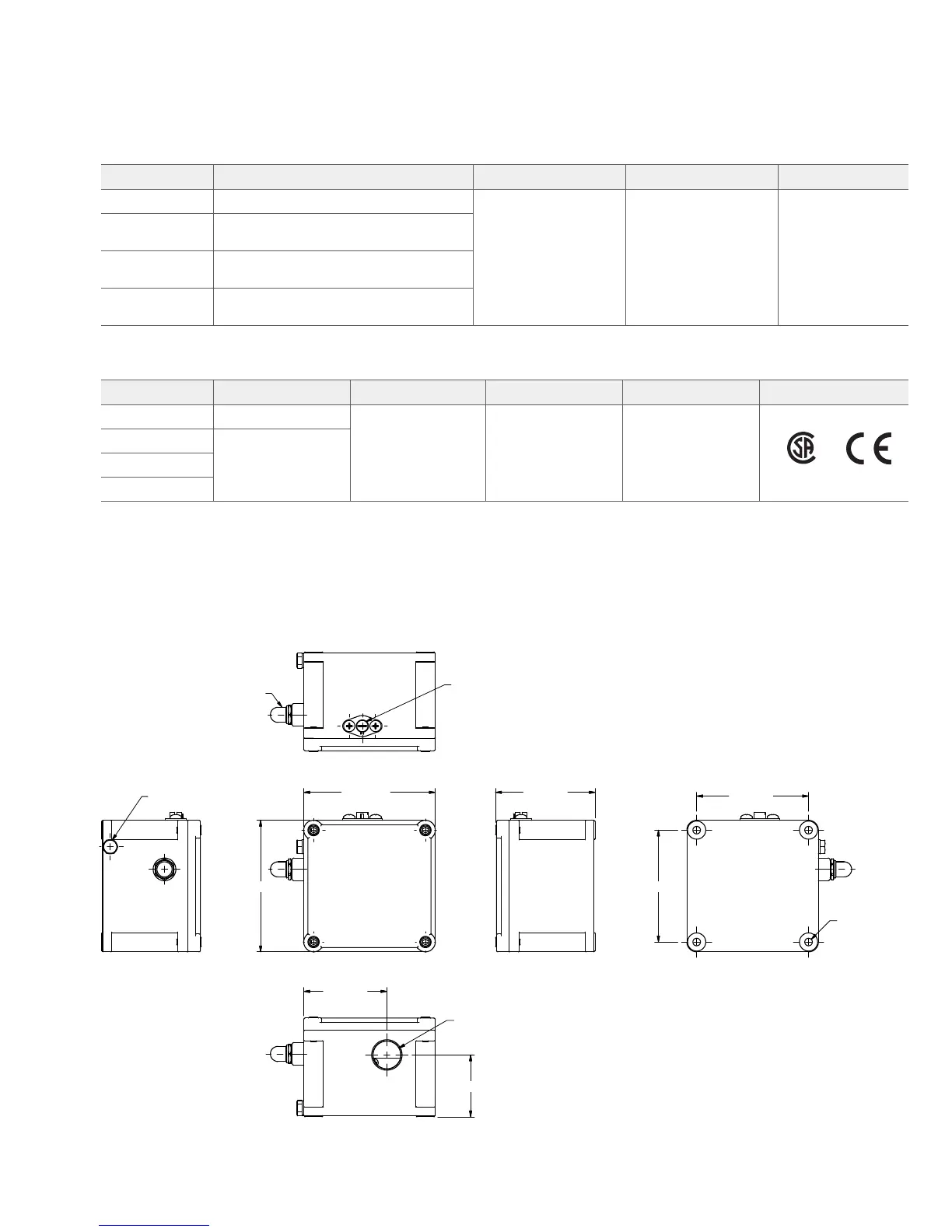

Dimensions
3/4 - 14 NPT
CONDUIT PORT
3.70 [94.0]
3.70 [94.0]
.250 [6.35]4X THRU
3.30 [83.8]
SENSITIVITY
ADJUSTMENT
SCREW
GROUND SCREW
4.35 [110.5]
4.35 [110.5]
2.75 [69.9]
RESET SWITCH
2.05 [51.9]
®
