4
Installation
The IMILAB C22 can be placed on flat surfaces, such as desks, dining tables, and coffee
tables. It can also be mounted on a wall.

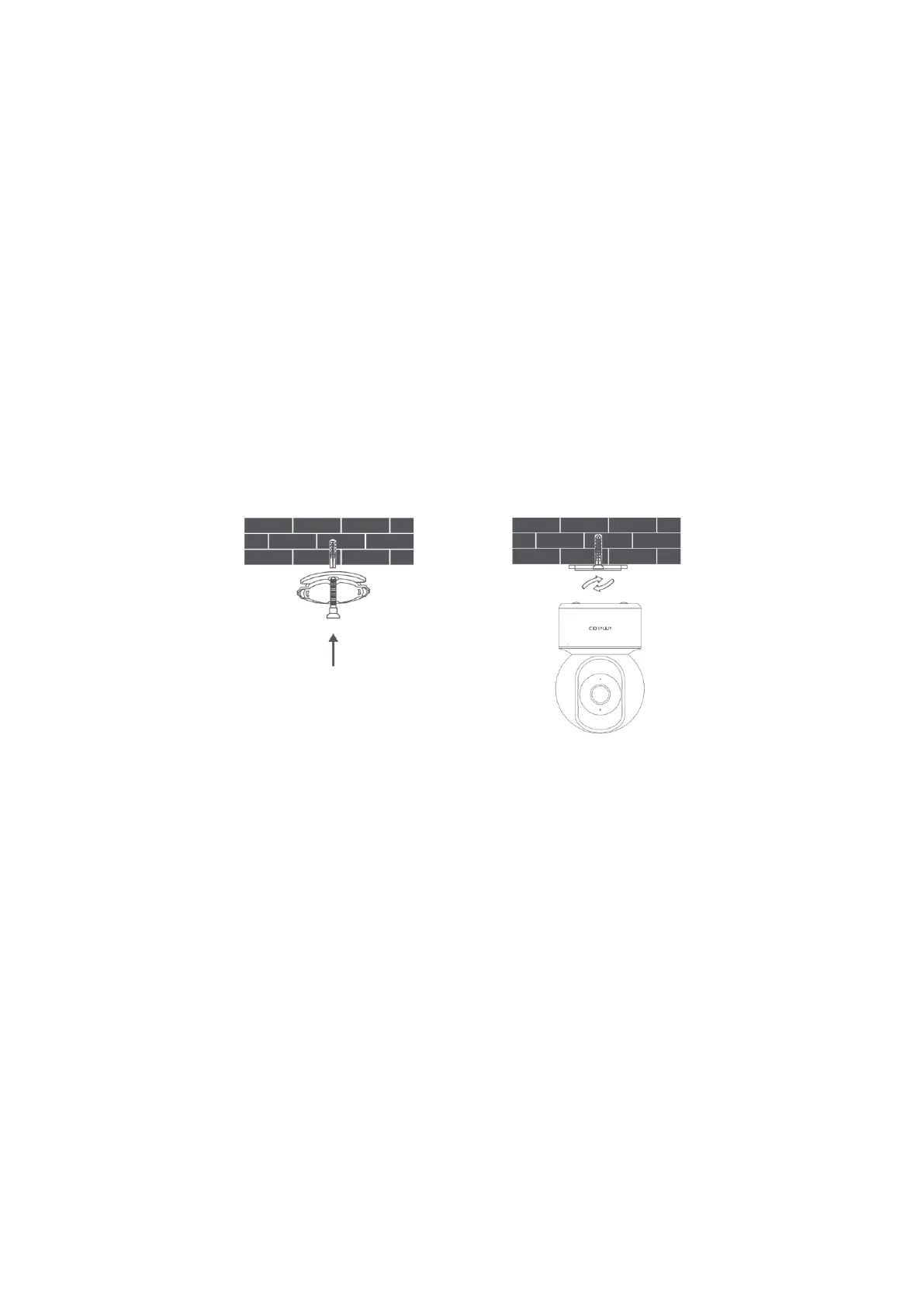

Mounting the Camera on a Wall
First use a pencil to mark the positions for the base mounting holes on the wall, then
drill two holes at the marked positions. The diameter of each hole is approximately 6
mm, and the depth is approximately 30 mm.
Next, insert the plastic wall plugs into the drilled holes. After that, place the side of the
base with arrows facing forward, and then align the holes. Insert the screws and then
tighten them into the wall plugs with a Phillips head screwdriver.
Finally, align the grooves on the bottom of the camera with the raised part on the base,
and then turn it clockwise until it locks into place.
Precaution for mounting the camera on a wall: The wall must be able to support at least
three times the total weight of the camera.
Warning: To prevent possible injury, the camera must be securely fixed to the ceiling or
wall according to the installation instructions.
