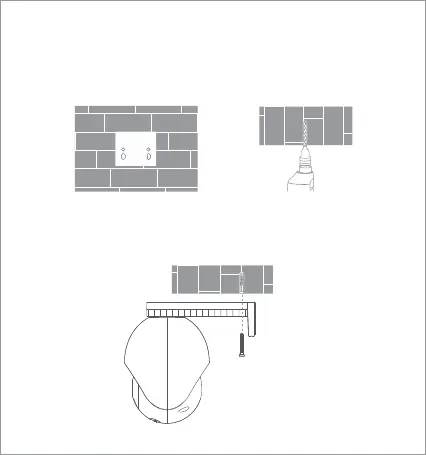

2. Insert two plastic expansion nuts into the wall. Put the base plate
on the ceiling. Secure the base plate by inserting the screws into the
expansion nuts.
Note: The product must be hung horizontally after installation (see
below).
1. Attach the ceiling mounting positioning sticker on the desired
installa- tion location on the ceiling. Drill two holes at the positions
indicated on the sticker. The drilling diameter should be around 6.0
mm with a depth of around 30 mm.
• Ceiling mounting
07
