Band X/Favorites
Band ‘X’ is a set of 8 channels for rebels. These channels do not need to fit any standard band plan.

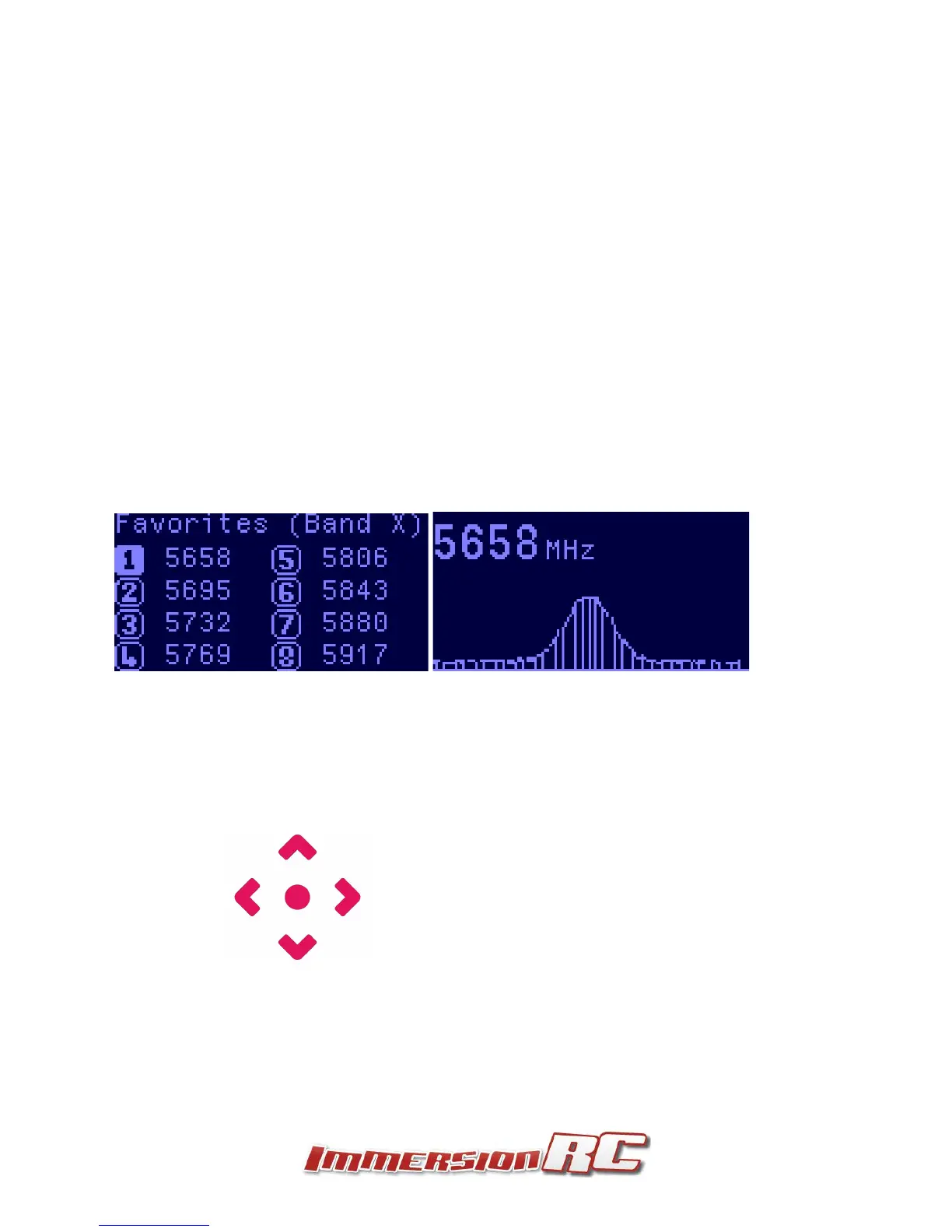

During configuration of Band X, a mini-spectrum of the area around the channel is shown. This is an
extremely useful tool to ‘tune’ the receiver to a transmitter before a long range flight.
Both transmitters and receivers for 5.8GHz use derive their master clock from a quartz crystal that
does vary in frequency slightly from device to device. In addition, after smashing a quad around a
track for a few months the Tx side is not always as precise as it was when shipped.
These slight variations may be tuned using the band-X mini-spectrum, and an optimal setup for long
range flight may be created.
Band X is also very useful for event use. Enter the 8 frequencies used at the event and simply switch
between them using the goggle channel buttons.
