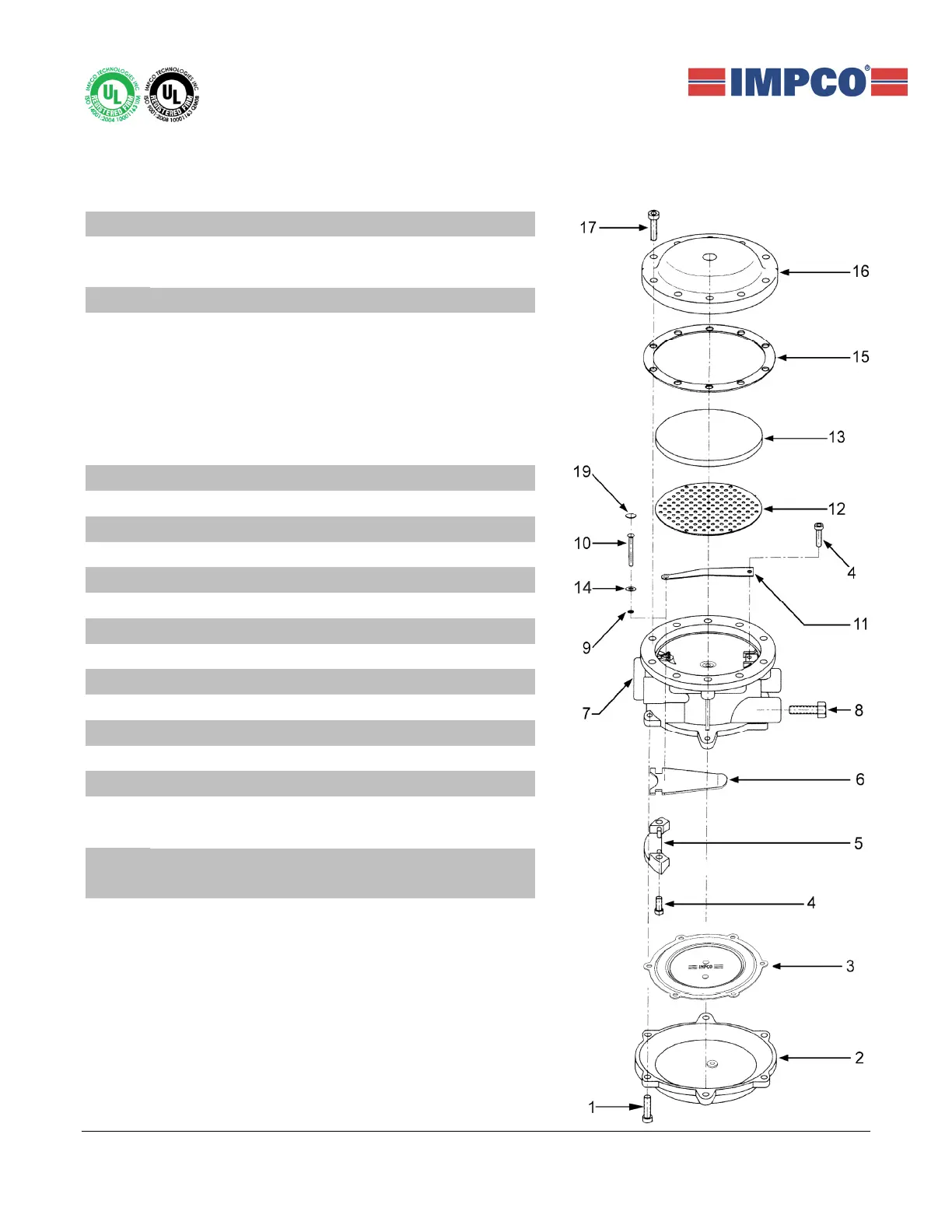

VFF30 LOCKOFF/FILTER COMPONENTS
ITEM# PART#
DESCRIPTION
S1-15265-001
Screw, 8-32 Taptite (6)
S1-59 Screw 8-32 x 5/8" LTD FLT (6)
2C1-37
Diaphragm cove
BD1-26
Diaphragm Assy (Standard)
(RK-VFF30)
BD1-27
Diaphragm Assy, Silicone
(RK-VFF30-2)
BD1-27-5
Diaphragm Assy, Flourosilicone
(RK-VFF30-3)
4* S1-15265-002
Screw, 8-32 Taptite (3)
5F3-2
Fulcrum
6 L1-39
Valve operating lever
7
B1-30149
Body ass'y
8S1-5
Screw, 1/4-20 x 5/8" SEMS (2)
9* S3-116
Seal, Lip Pin
10* P1-15
Valve, operating pin
11 S2-40
Valve, spring
12* S7-3
Screen, back-up filte
13** F1-10
Filter
14* W1-42
Washer, Seal Retaining
15** G1-89
Filter cover gasket
16 C1-38
Filter cover
S1-15266-001
Screw, 12-24 Taptite (10)
S1-100 Screw, 12-24 x 5/8" (10)
18 AF4-66
Fitting, ball check, assy (not shown
VFF30-2-4 only)
19*
S4-18
Seat, VFF30
NSS = Not Serviced Separately
3*
1*
17
*Repair Kit Components. Note that extra screws (both slotted
and torx) are included in the repair kits to replace any that may
be damaged. When replacing screws, be sure to properly
match thread type (self-tapping or machined) as the two types
are not interchangeable.
**Included in all repair kits and the only two parts included in
AF1-10.
