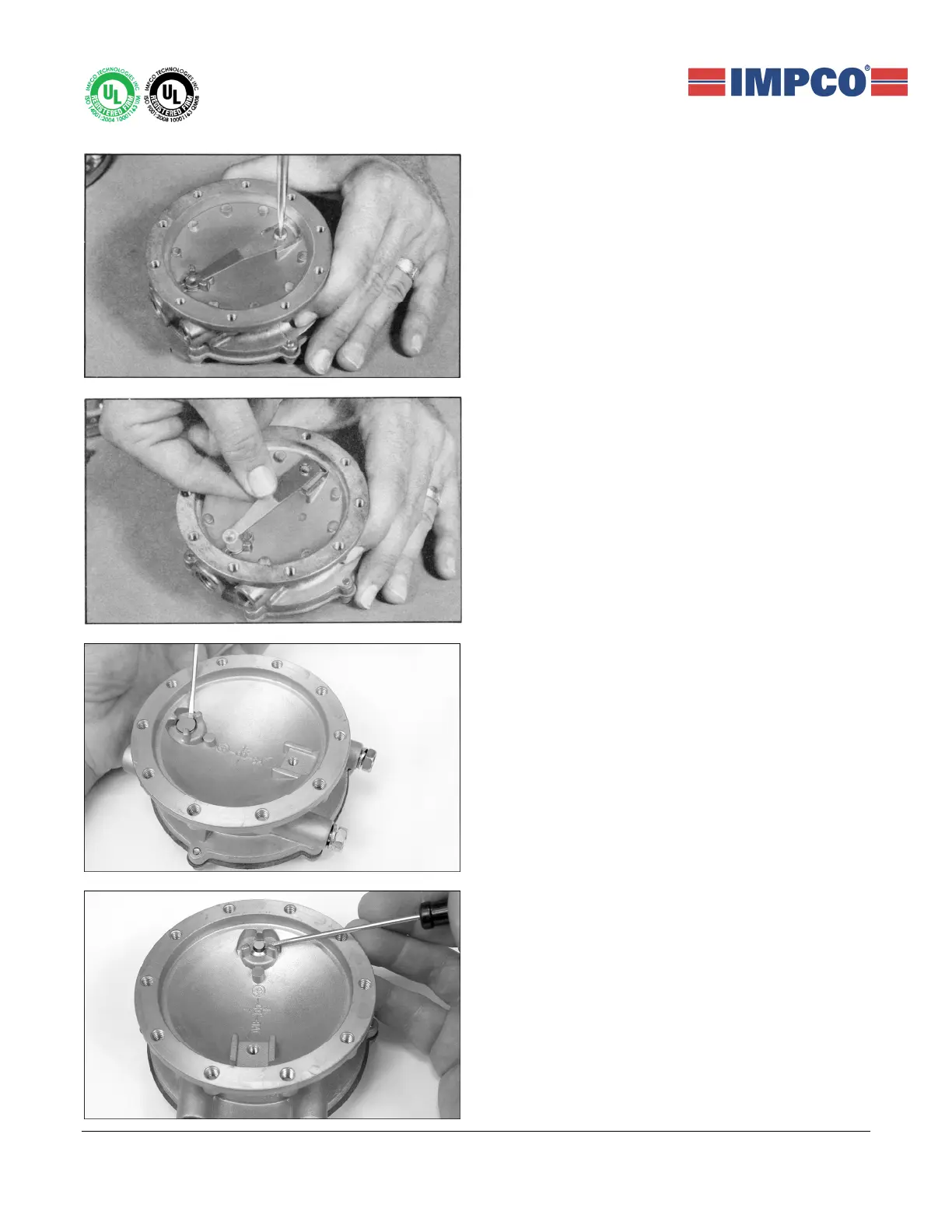

4. Remove Screw (4) retaining Valve Spring (11).
5. Remove Valve Spring (11).
6. Using a small flat head screwdriver, remove Valve
Seat (19).
7. Gently lift up and remove the Valve Operating Pin
(10).
