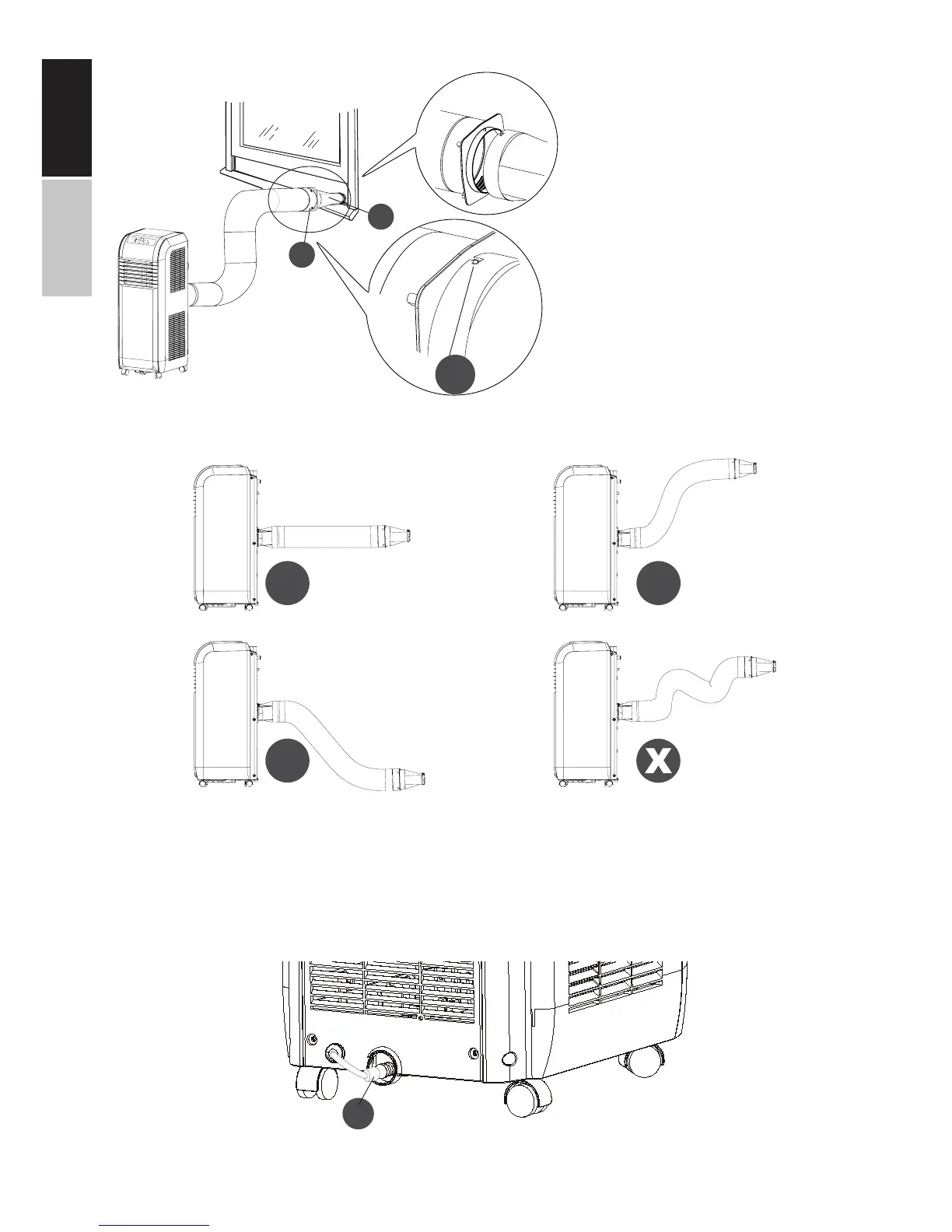

Step 3: Insert connector B (#1)
into connector C (#2) by the win-
dow by locating the slot in con-
nector C, and inserting and
slightly twisting connector B for
a snug fit.
Note: For optimal performance, avoid any kinks or bends in the air exhaust duct.
OK OK
OK
DRAINAGE PIPE SETUP
Condensation buildup in humid environments will severely impact the eiciency and
normal operation of your unit. If you have a drain near the installation, you can have a
continuous drainage setup.
Step 1: Remove the rubber plug (#1) found at the rear base of the unit.
1
