Step 3
A.) Insert the Right Top Handrail (#2)
into Left Top Handrail (#1).
B.) Insert the Left and Right Top Handrail
into the two Vertical Handrails (#5).

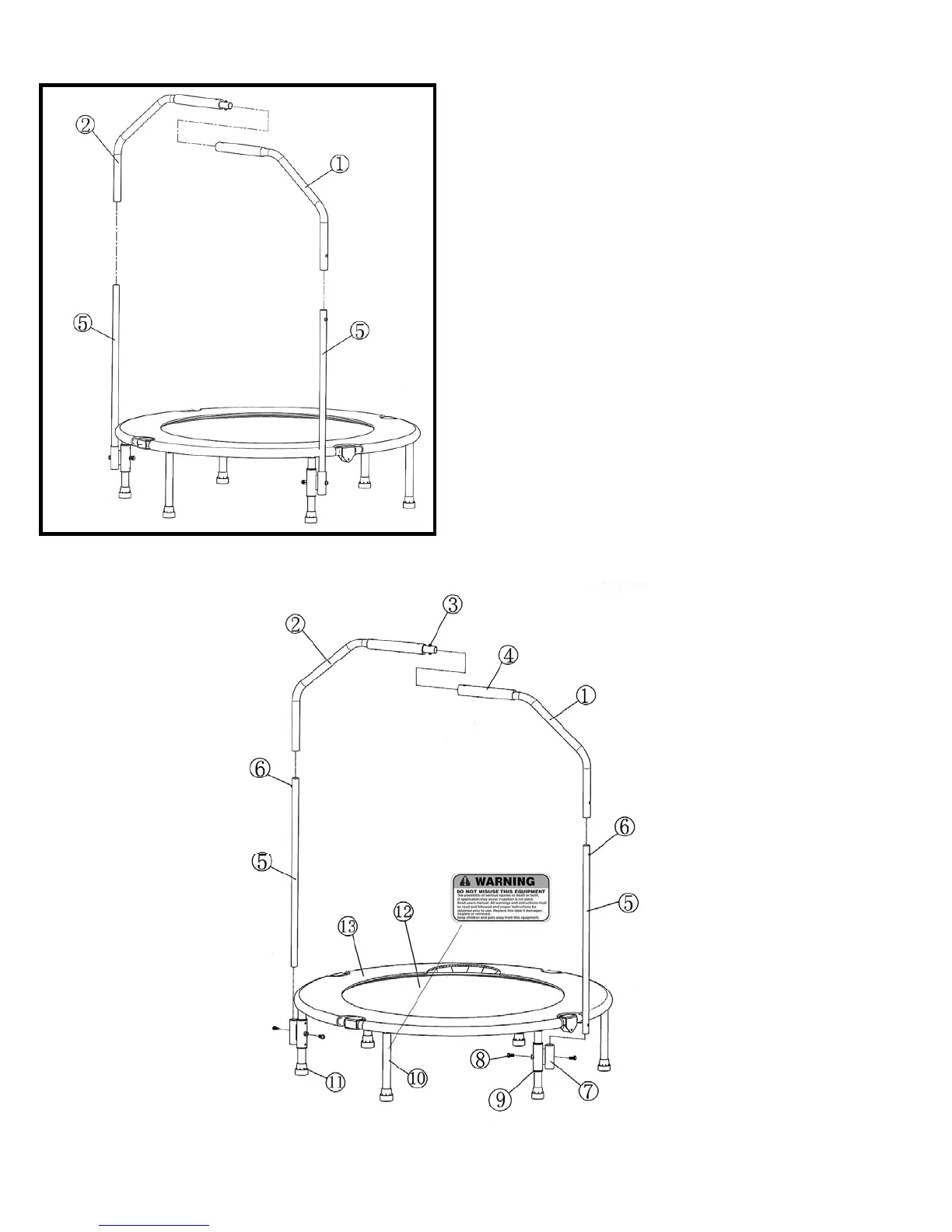

EXPLODED DIAGRAM
