STEP 4 (See Diagram 4)
A.) Slide the Weight Holder (#2) onto the Rear Vertical Beam (#1) from the top.
B.) Attach the rear end of Upper Frame (#4) to the Rear Upper Vertical Beam (#1). Secure the
upper hole with a Small Bracket (#20), M10 x 2 3/8” Allen Bolt (#46), and ∅ ¾” Washer
(#53). Sure the bottom hole with a M10 x 2 3/8” Carriage Bolt (#43), ∅ ¾” Washer (#53) and
M10 Aircraft Nut (#55). Do not over tighten the Bolts yet.
C.) Place the Upper Frame (#4) on top of the Front Upper Vertical Beam (#5). Align the holes
and secure it with one Bracket (#21), two M10 x 2 ½” Carriage Bolts (#42), two ∅ ¾”
Washers (#53), and two M10 Aircraft Nuts (#55). Securely tighten all Bolts.
D.) Slide two Olympic Sleeves (#69) onto the Weight Holder (#2). Attach two Spring Clips (#65)
to the Olympic Sleeves.

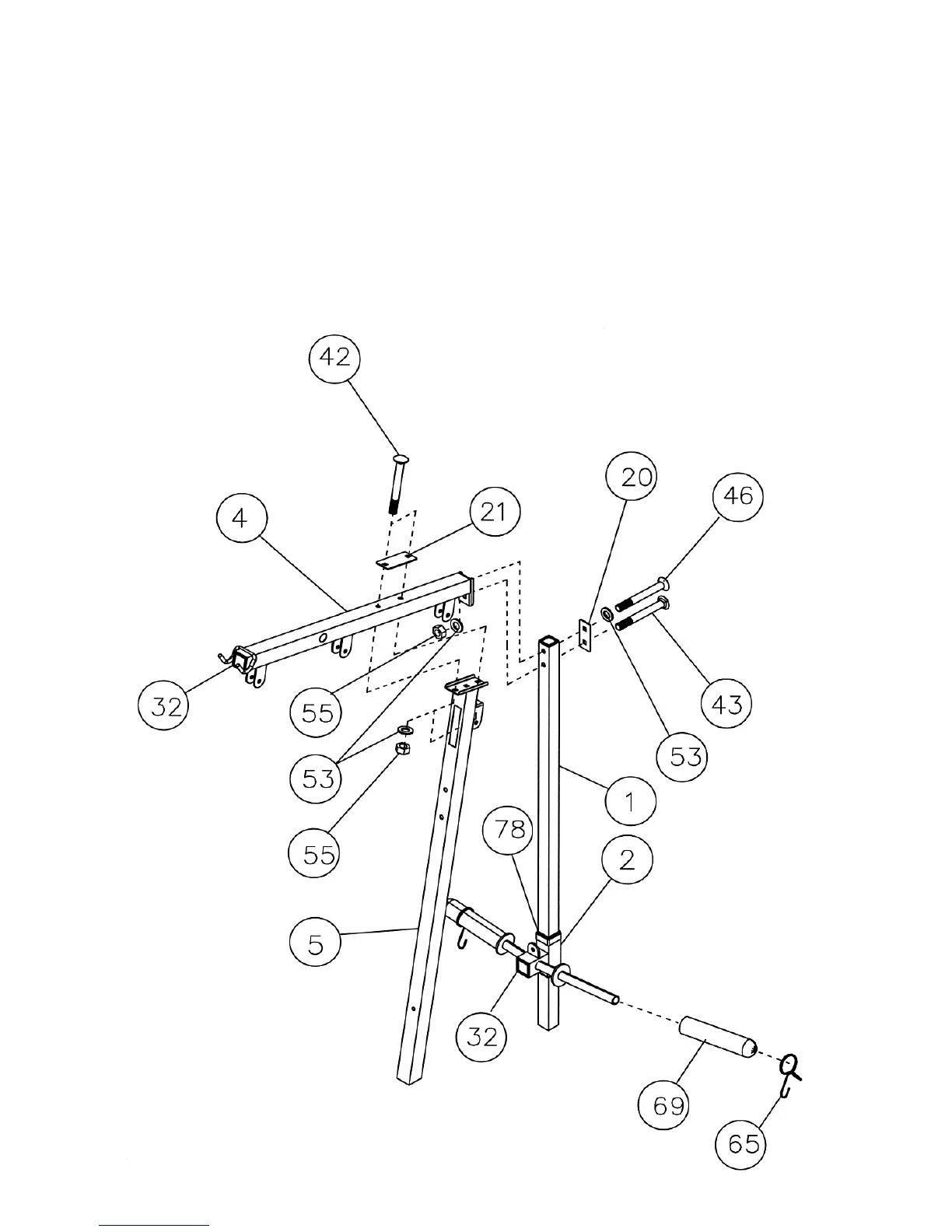

DIAGRAM 4
9
