STEP 5 (See Diagram 5)
A.) Attach the Front Press Base (#12) to the Upper Frame (#4). Secure it with one 5 7/8” Axle
(#60), two ∅ 1” Axle Washers (#64), and two M10 Aircraft Nuts (#55). Do not over tighten
the nuts. Make sure the Base is able to swivel.
B.) Attach the Front Press Stopper (#8) and Butterfly Pulley Frame (#9) to the Front Upper
Vertical Beam (#5). Align the holes and secure them together with two M10 x 2 ½” Carriage
Bolts (#42), ∅ ¾” Washers (#53) and M10 Aircraft Nuts (#55).
C.) Insert the Lock Pin (#80) into the hole on the Front Press Stopper (#8) to lock the Base in
place. Note: Remove the Pin when doing Front Press exercise. Lock the pin when doing
Butterfly exercise.

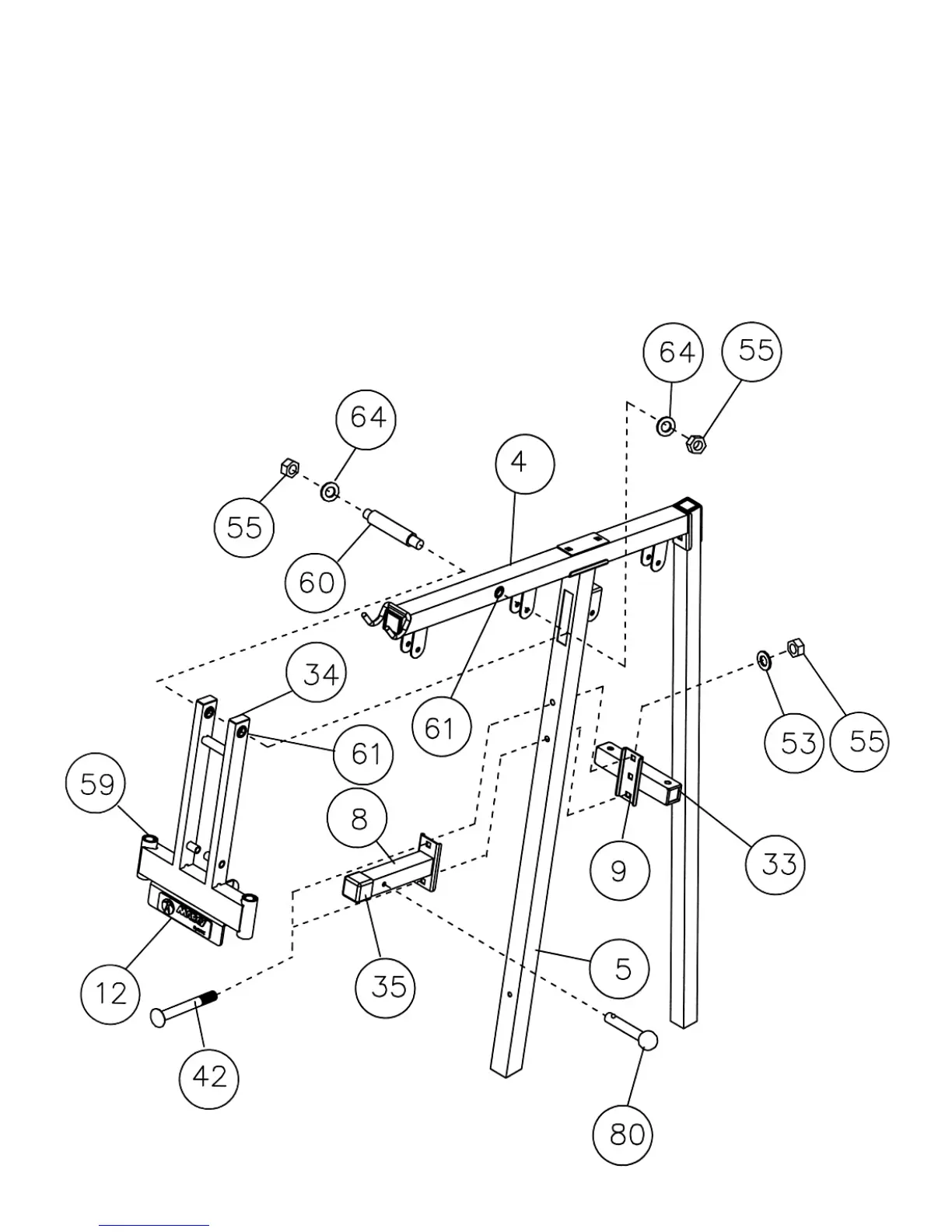

DIAGRAM 5
10
