STEP 6 (See Diagram 6)
A.) Attach the Leg Developer (#11) to the bracket on the Main Seat Support (#7). Secure it with
one M10 x 3” Allen Bolt (#44), two ∅ ¾” Washers (#53), and one M10 Aircraft Nut (#55). Do
not over tighten the Bolt. Make the Leg Developer is able to swivel.
B.) Insert the Arm Curl Stand (#67) into the top opening on the Main Seat Support. Use a Lock
Knob (#66) to secure it and obtain the desired Arm Curl exercise position.

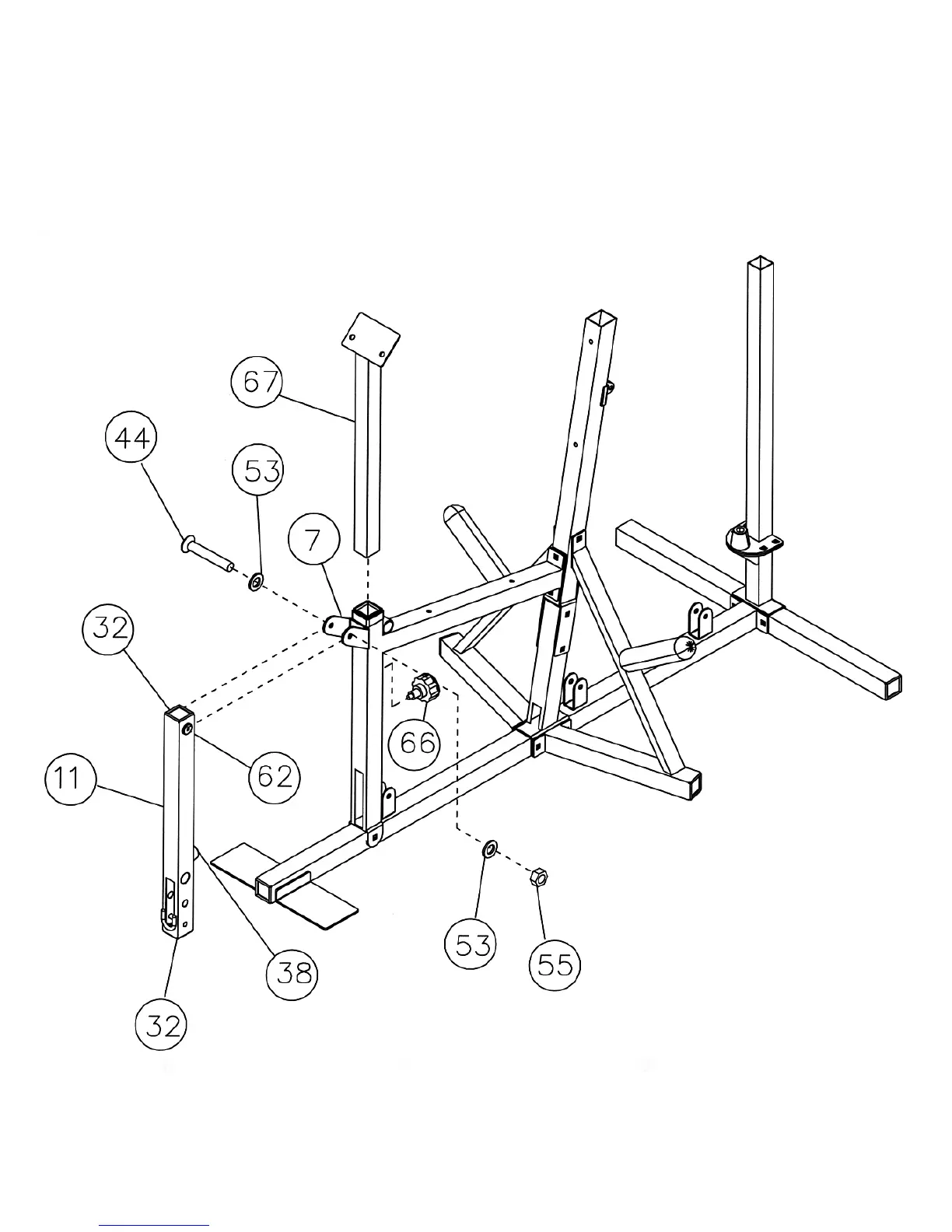

DIAGRAM 6
11
